Camshaft Cover Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition control modules and bolts.

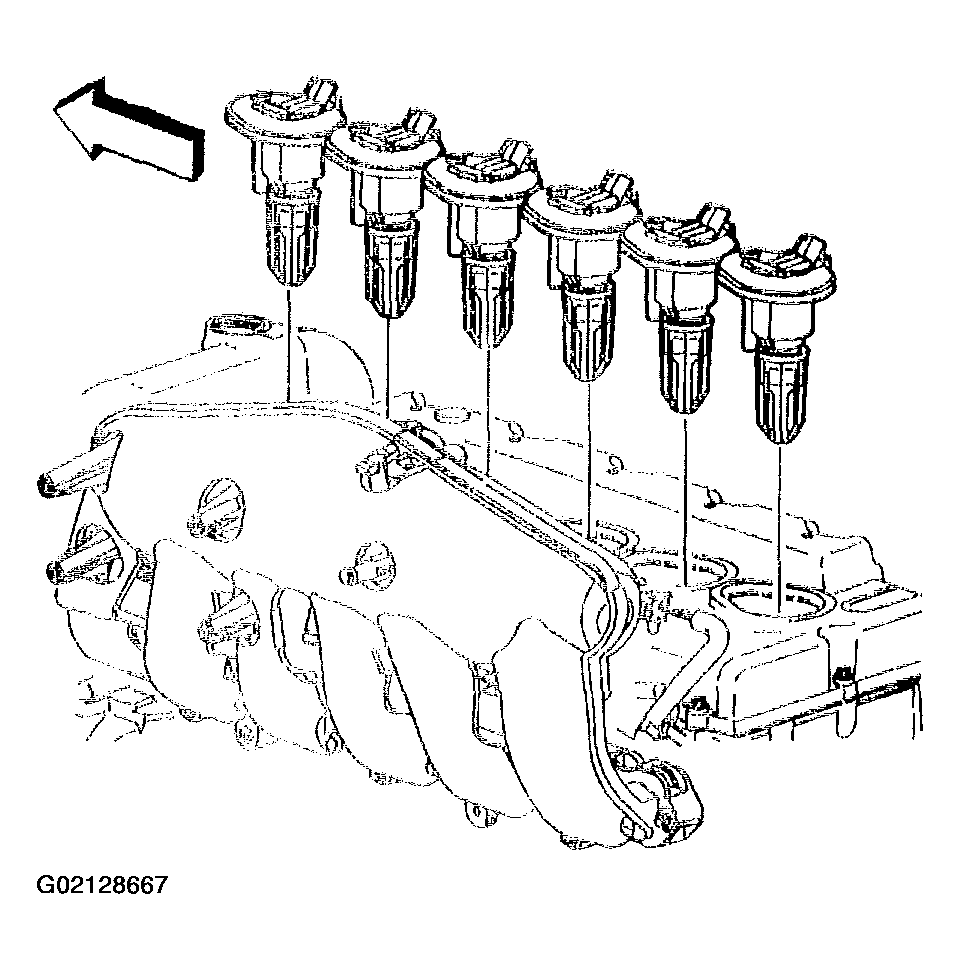

    Fig 1: Removing Ignition Control Modules
    G02128667Courtesy of GENERAL MOTORS CORP.
  2. Remove the camshaft cover and bolts.

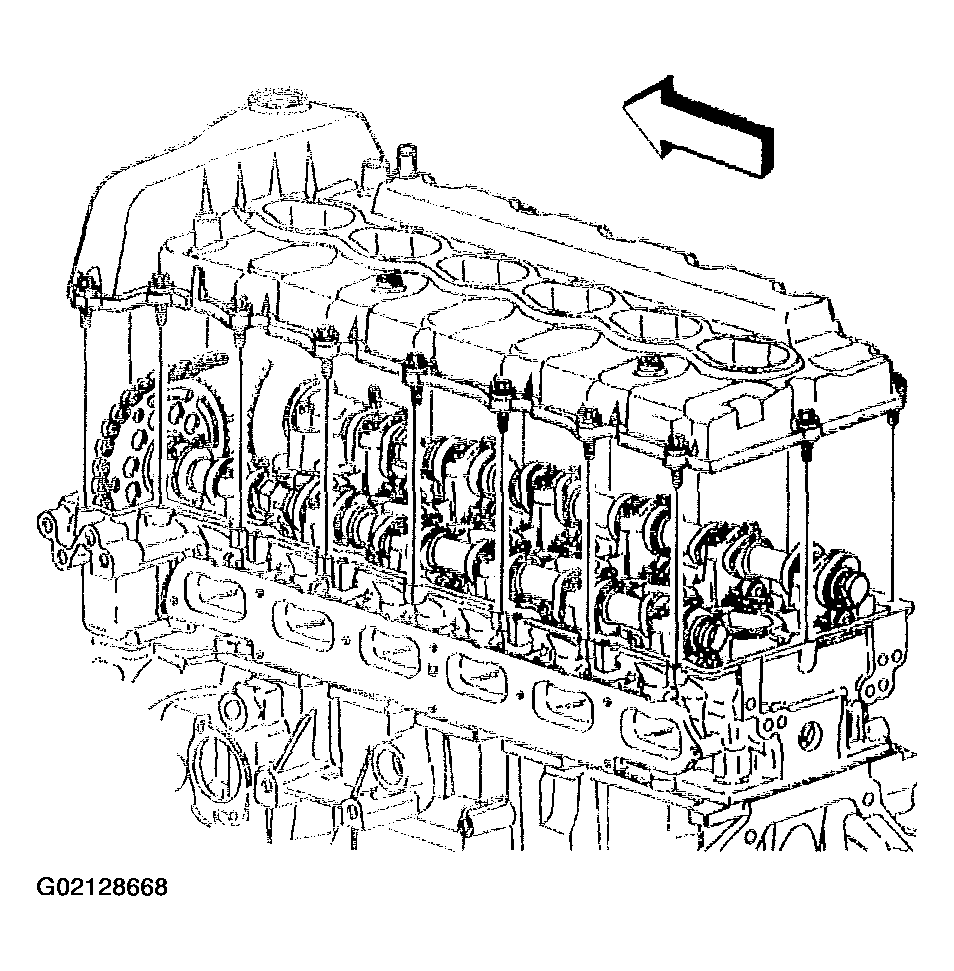

    Fig 2: Removing Camshaft Cover
    G02128668Courtesy of GENERAL MOTORS CORP.
