Camshaft Cover Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new camshaft cover seal.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the camshaft cover and bolts.

    Tighten

    Tighten the camshaft cover bolts to 10 N.m (89 lb in).

    Fig 1: Installing Camshaft Cover
    G02128896Courtesy of GENERAL MOTORS CORP.
  3. Install new ignition control module seals.
  4. Install the ignition control modules and bolts.

    Tighten

    Tighten the ignition control module bolts to 10 N.m (89 lb in).

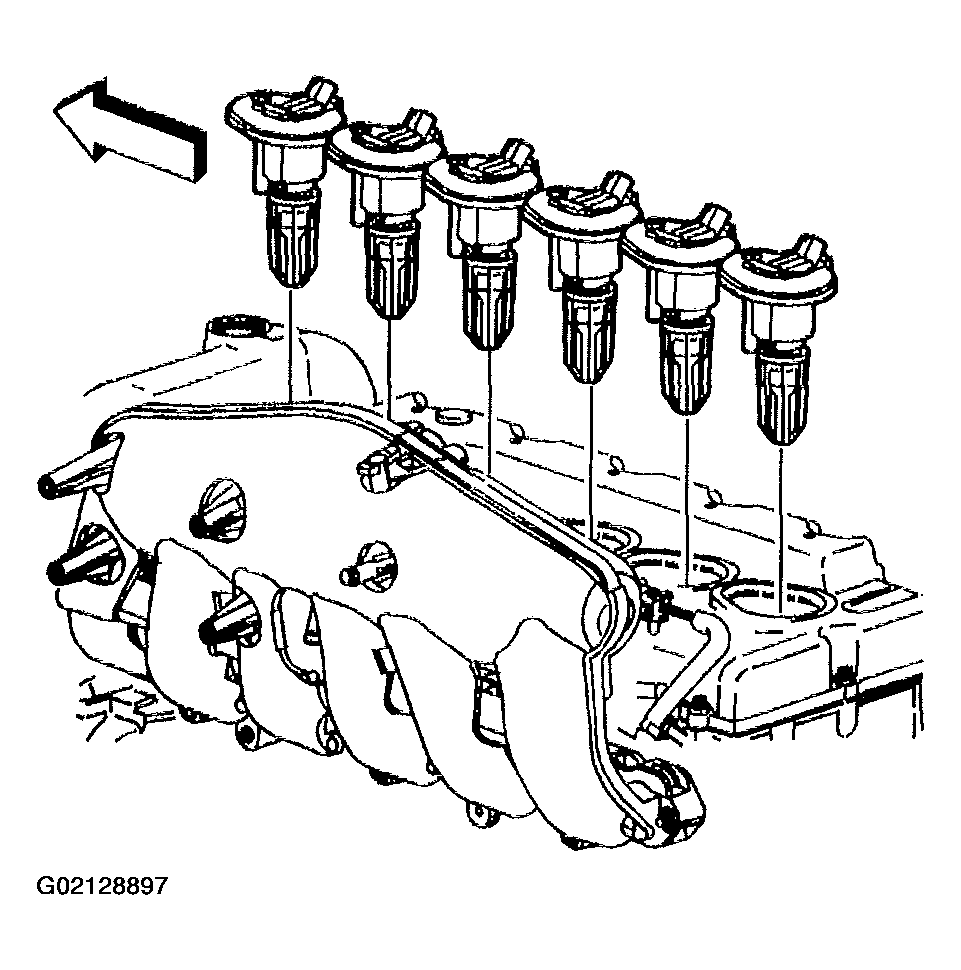

    Fig 2: Installing New Ignition Control Modules, Seals & Bolts
    G02128897Courtesy of GENERAL MOTORS CORP.
