Engine Noise Under Load

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

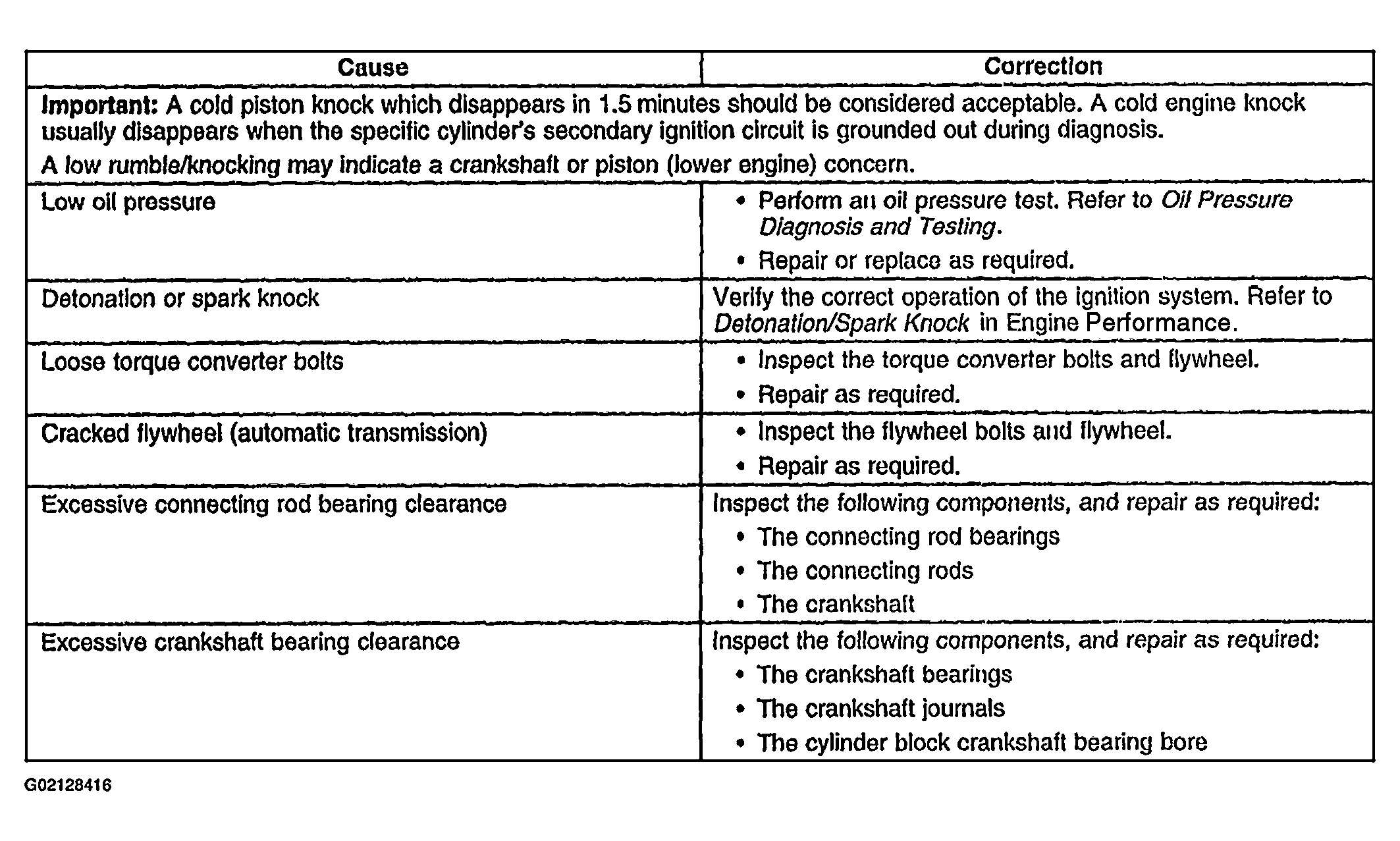

Fig 1: Engine Noise Under Load - Cause And Correction Chart
G02128416Courtesy of GENERAL MOTORS CORP.
