Engine Block - Top View

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

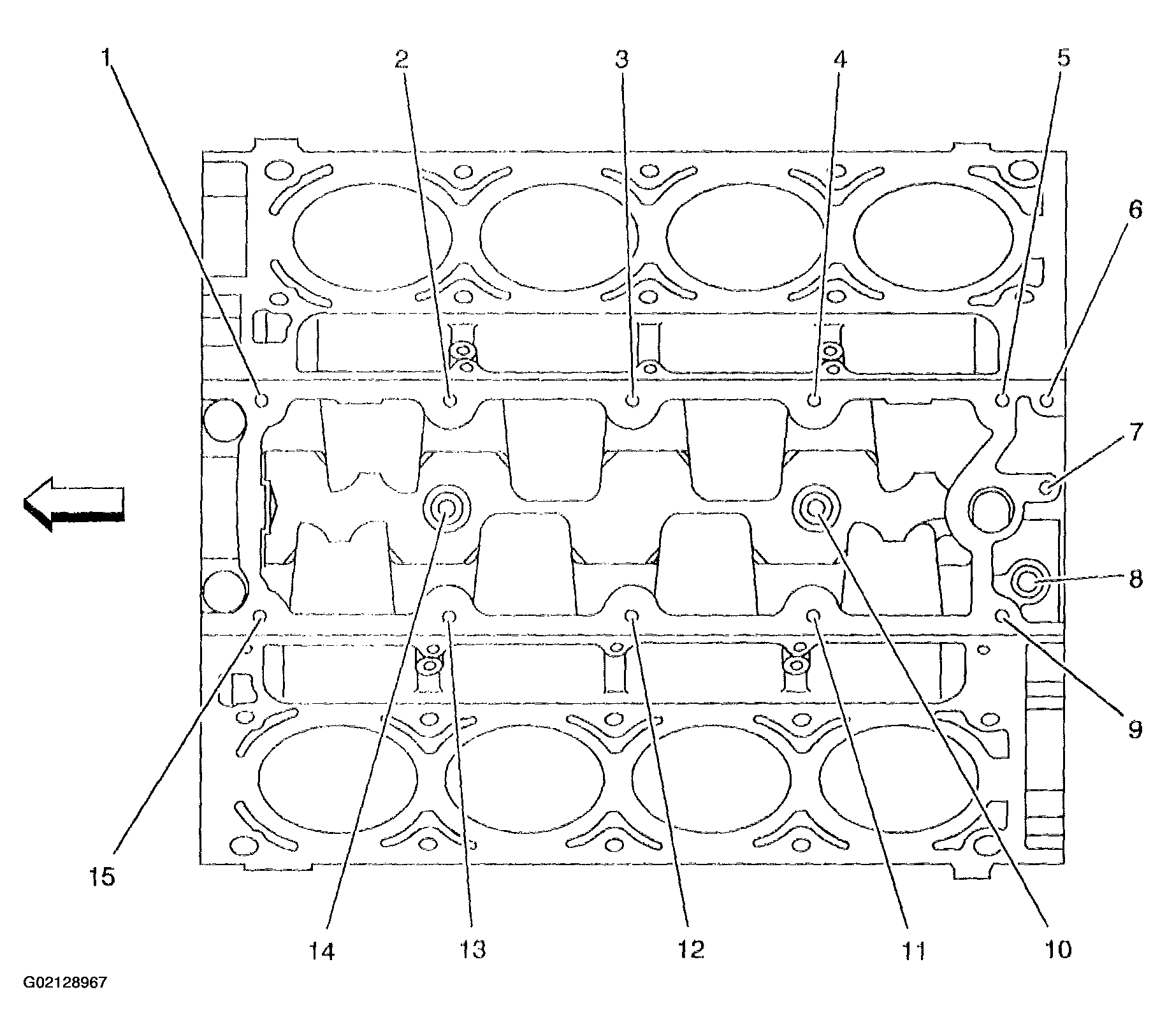

Fig 1: Engine Block - Top View
G02128967Courtesy of GENERAL MOTORS CORP.

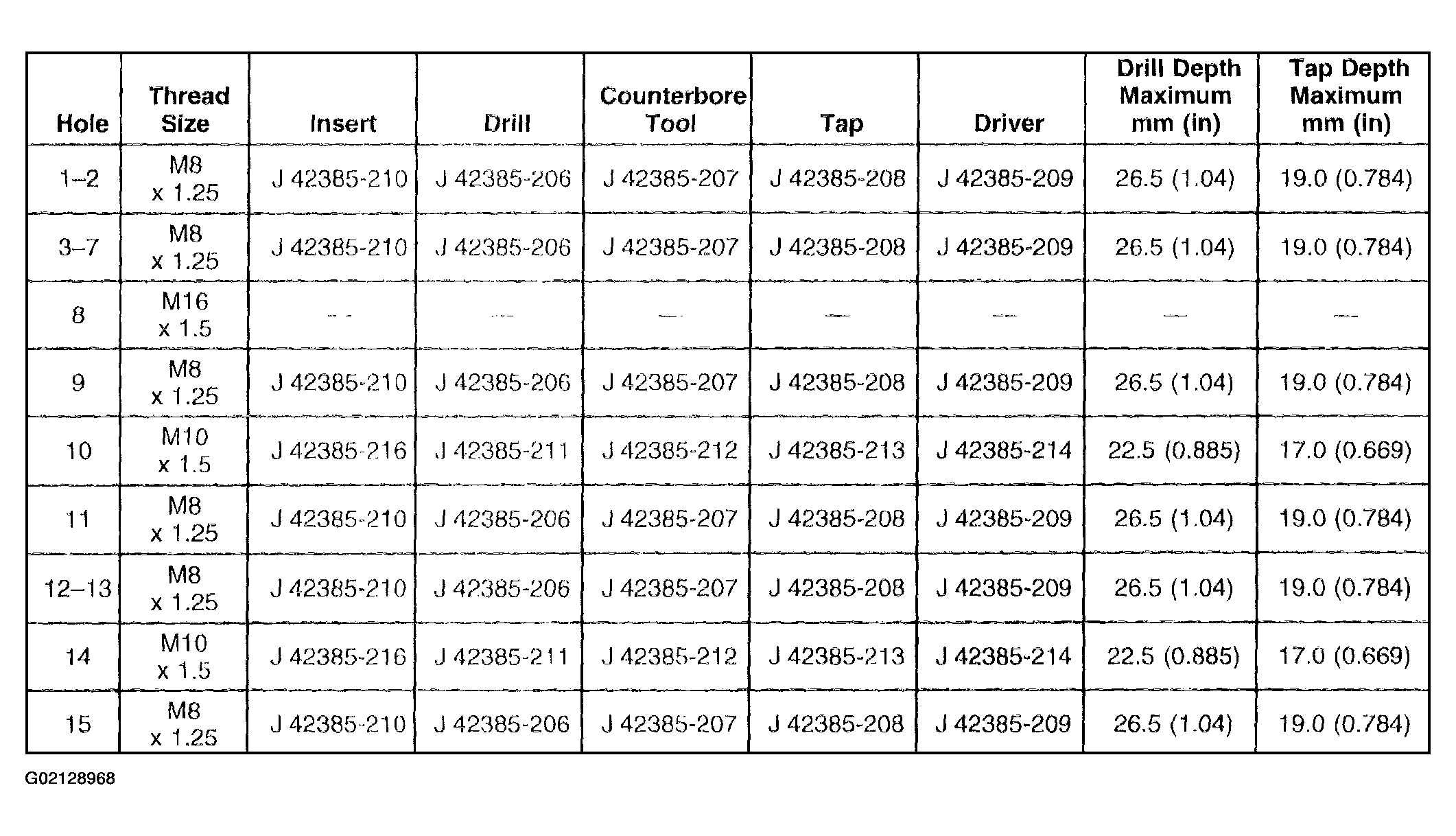

Fig 2: Callouts For Engine Block - Top View
G02128968Courtesy of GENERAL MOTORS CORP.
