Cylinder Head - Top View

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

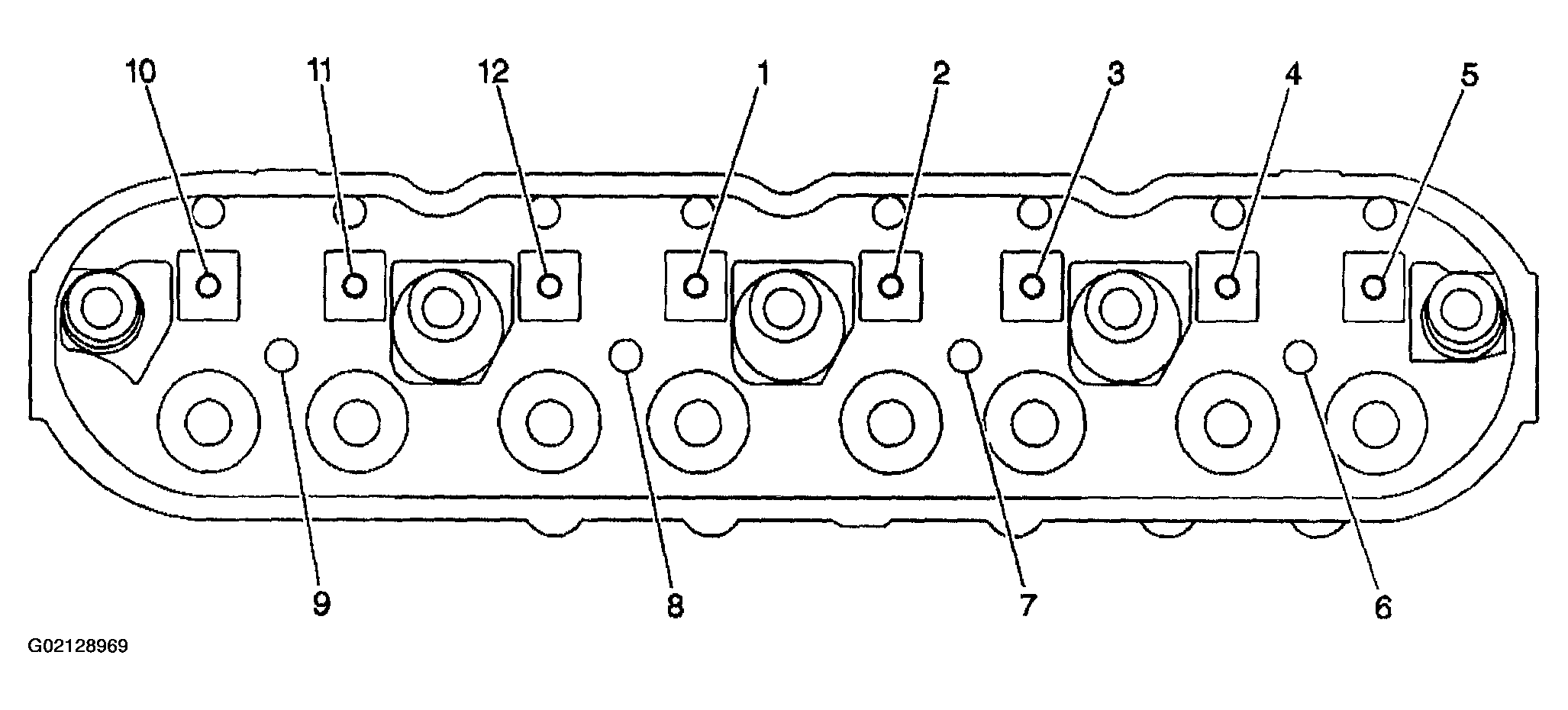

Fig 1: Cylinder Head - Top View
G02128969Courtesy of GENERAL MOTORS CORP.

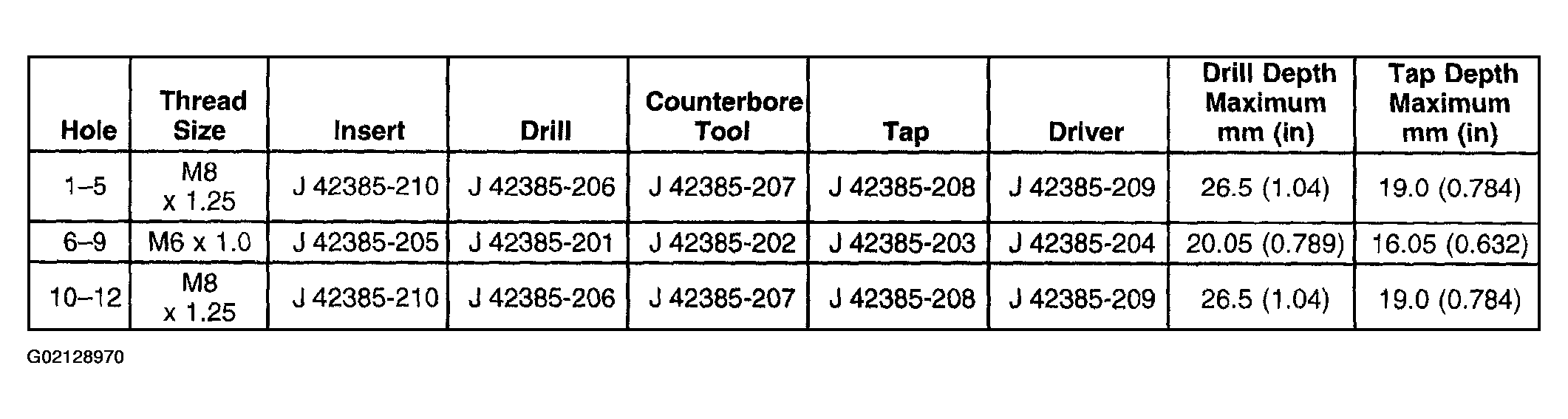

Fig 2: Callouts For Cylinder Head - Top View
G02128970Courtesy of GENERAL MOTORS CORP.
