Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new PCV valve (2) to the PCV tube (1).
  2. Install the PCV tube (1) to the rocker arm cover.

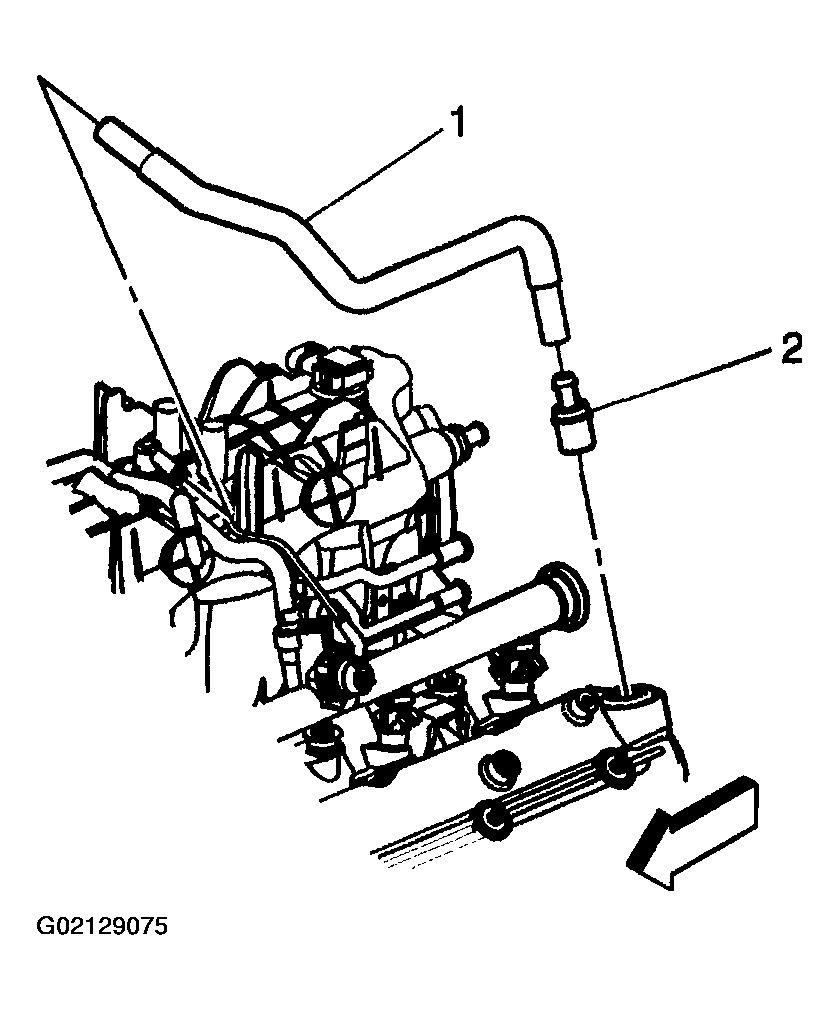

    Fig 1: Installing New PCV Valve
    G02129075Courtesy of GENERAL MOTORS CORP.
