Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder number 2 spark plug and wire. Refer to SPARK PLUGS .
  2. Remove the oil level indicator from the tube.
  3. Remove the oil level indicator tube bolt.
  4. Remove the oil level indicator tube from the engine block.
    IMPORTANT: The O-ring seal may be reused if not cut or damaged.
  5. Inspect the O-ring seal for cuts or damage.
  6. Remove the O-ring seal from the tube (if required).

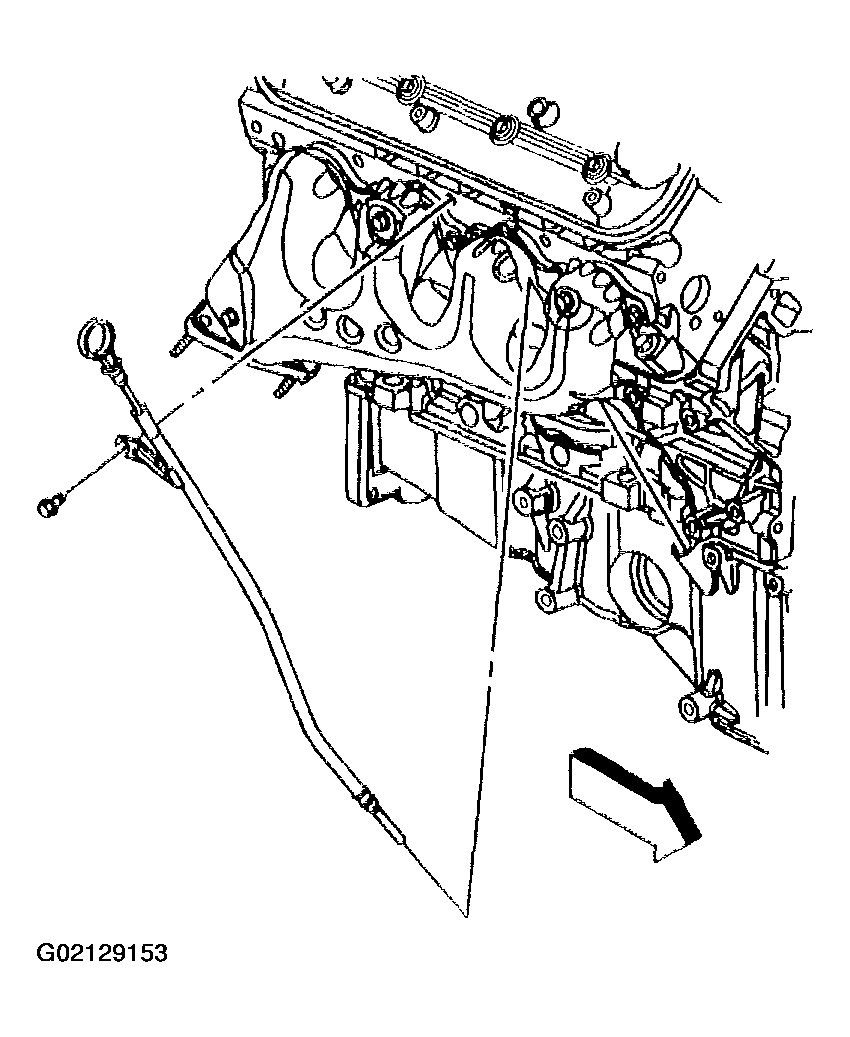

    Fig 1: Removing O-Ring Seal From Tube
    G02129153Courtesy of GENERAL MOTORS CORP.
