Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine flywheel. Refer to ENGINE FLYWHEEL REPLACEMENT   .
  2. Remove the oil pan-to-rear cover bolts (1).

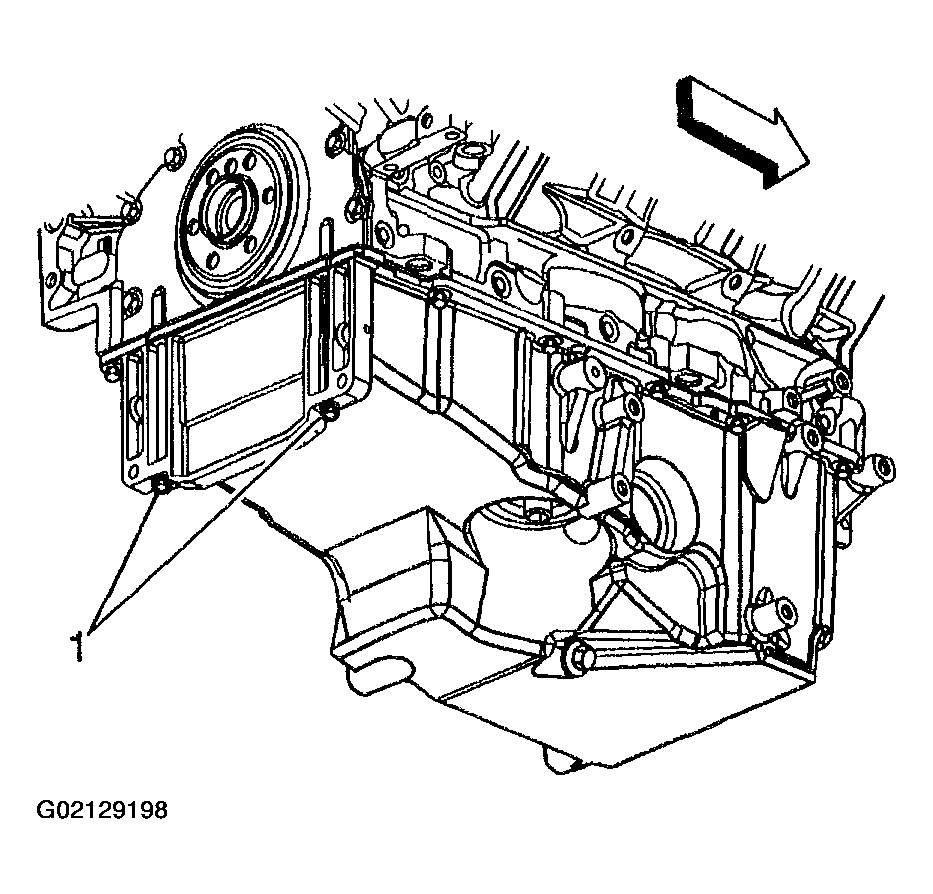

    Fig 1: Removing Oil Pan-To-Rear Cover Bolts
    G02129198Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear cover bolts.
  4. Remove the rear cover and gasket.
  5. Discard the rear cover gasket.
  6. Clean and inspect the rear cover. Refer to ENGINE REAR COVER CLEANING AND INSPECTION   .

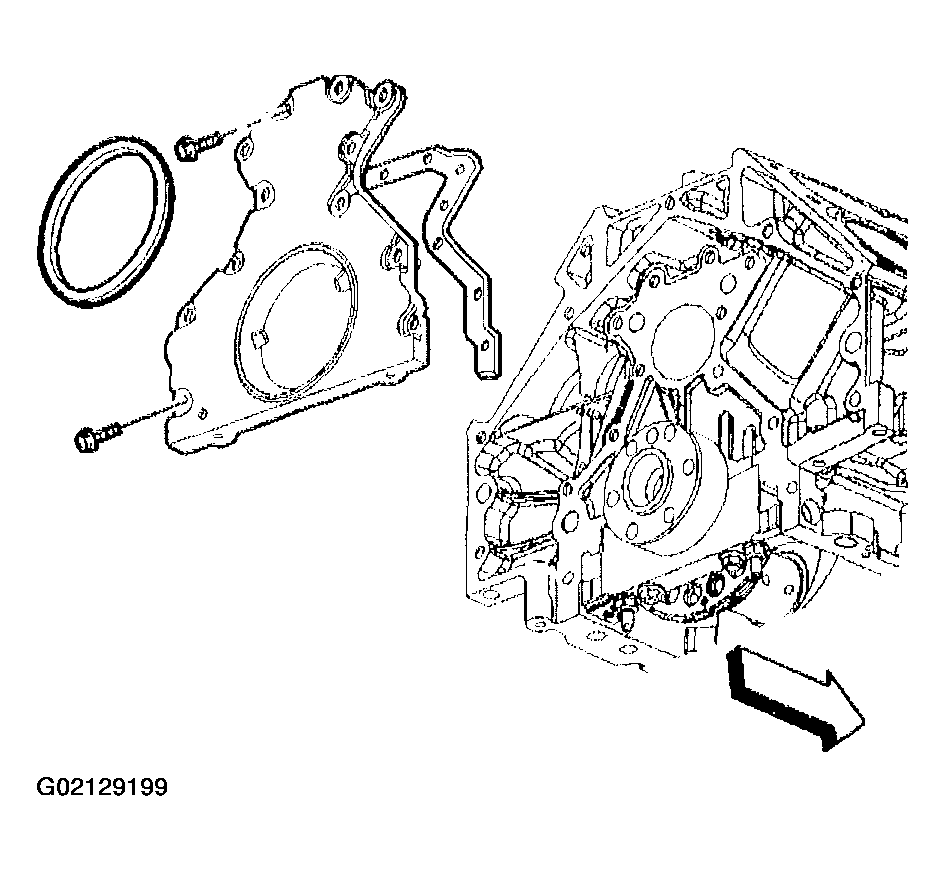

    Fig 2: Removing Rear Cover And Gasket
    G02129199Courtesy of GENERAL MOTORS CORP.
