Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the oil pressure sensor electrical connector (1).

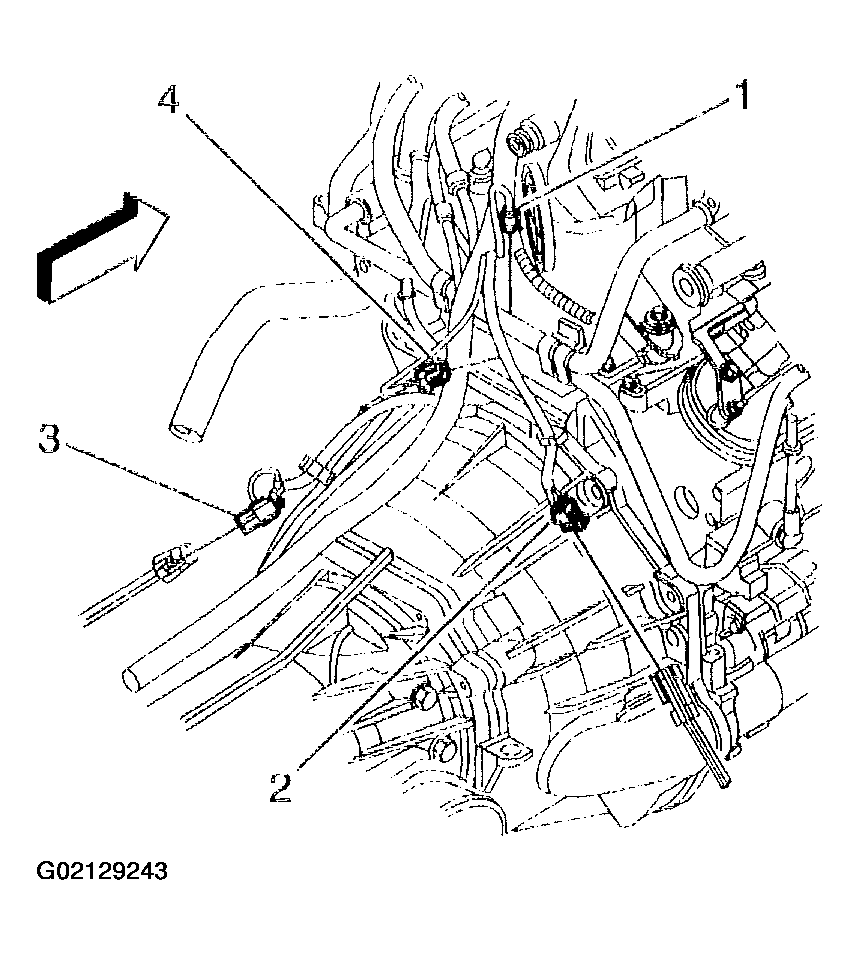

Fig 1: Disconnecting Oil Pressure Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Using J 41712 or equivalent, remove the oil pressure sensor.

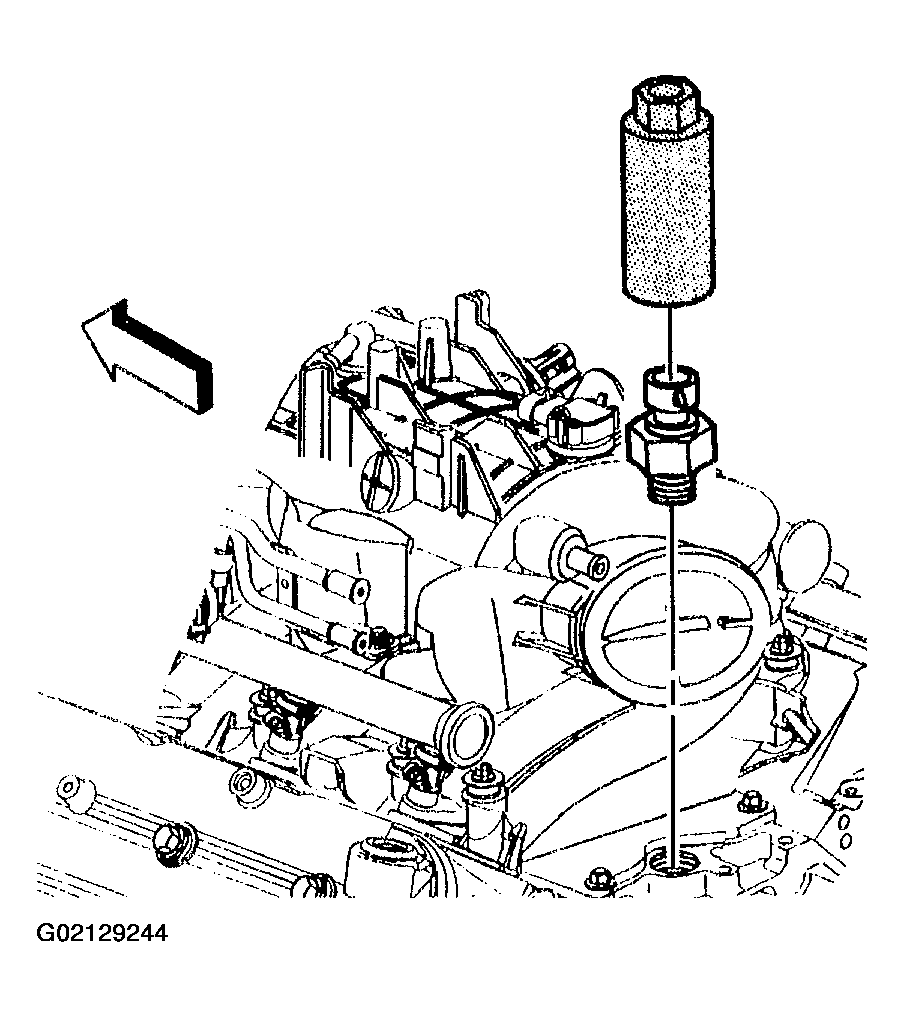

Fig 2: Removing Oil Pressure Sensor
Courtesy of GENERAL MOTORS CORP.
