Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the front tire and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  3. Remove the engine protection shield. Refer to ENGINE PROTECTION SHIELD REPLACEMENT in Frame and Underbody.
  4. Remove the shock module. Refer to SHOCK MODULE REPLACEMENT  in Front Suspension.
  5. Remove the lower engine mount retaining nuts from the engine mount frame bracket.

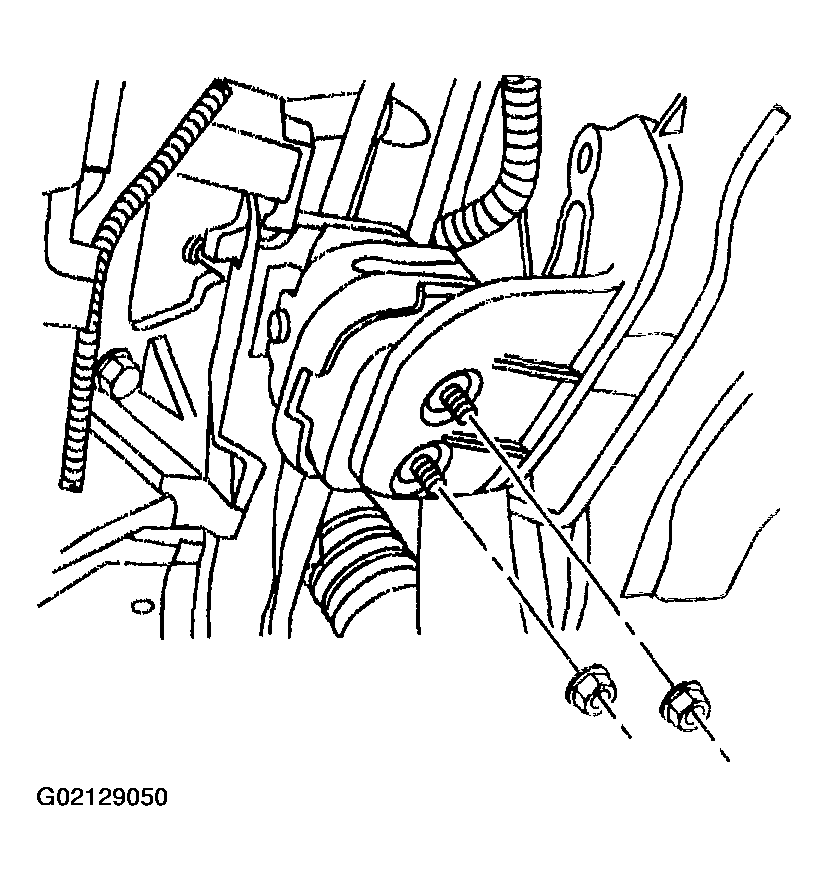

    Fig 1: Removing Lower Engine Mount Retaining Nuts From Engine Mount Frame Bracket
    G02129050Courtesy of GENERAL MOTORS CORP.
  6. Remove the 3 mounting bolts from the upper engine mount bracket to engine block bracket.

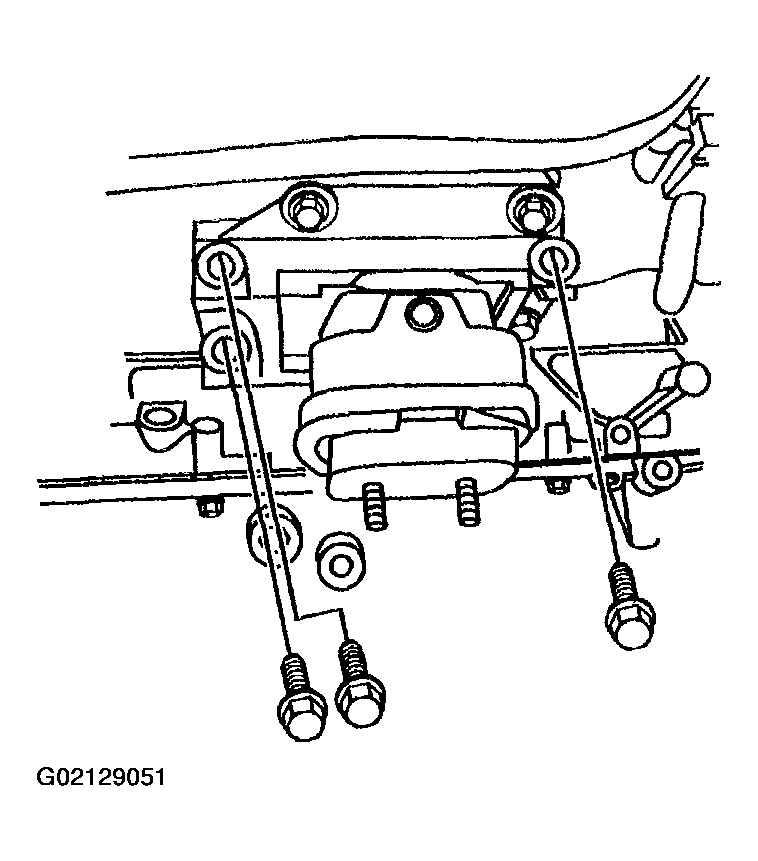

    Fig 2: Removing Mounting Bolts From Upper Engine Mount Bracket To Engine Block Bracket
    G02129051Courtesy of GENERAL MOTORS CORP.
  7. Remove the 3 frame engine mount bracket retaining bolts.

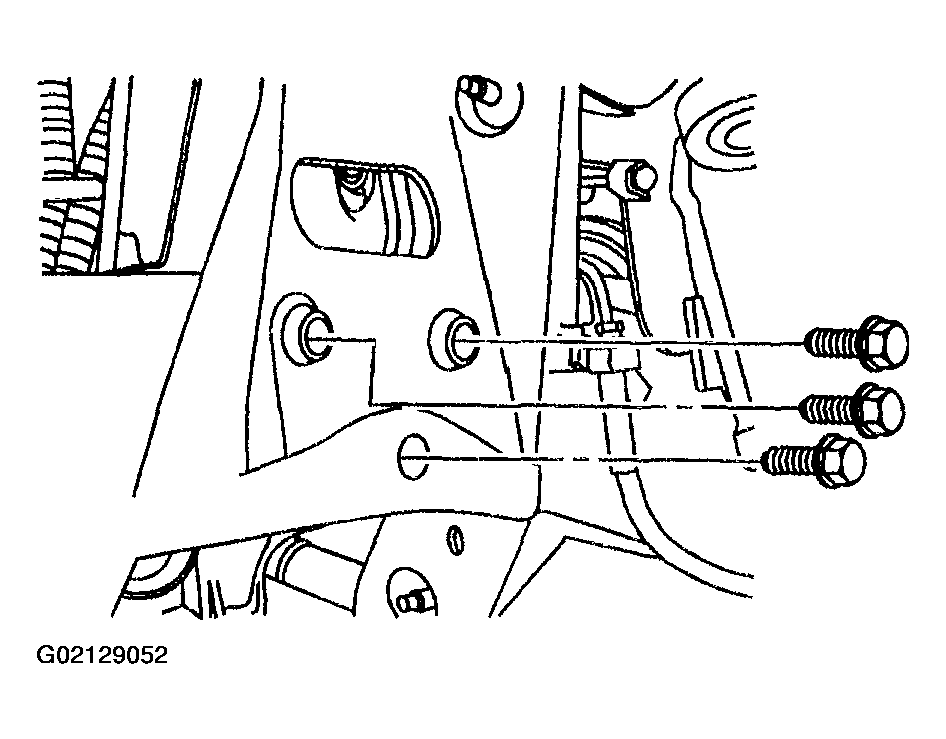

    Fig 3: Removing Frame Engine Mount Bracket Retaining Bolts
    G02129052Courtesy of GENERAL MOTORS CORP.
  8. Install a pole jack underneath the oil pan.
  9. Insert a block of wood between the oil pan and the pole jack.

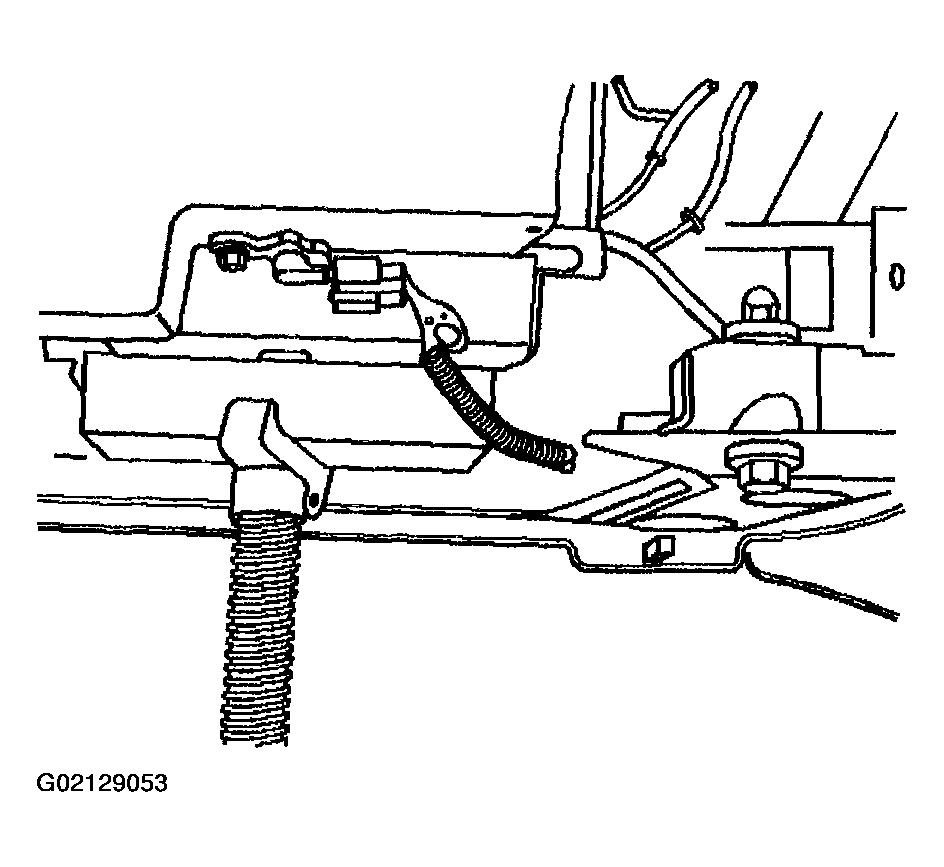

    Fig 4: Installing Pole Jack Underneath Oil Pan
    G02129053Courtesy of GENERAL MOTORS CORP.
  10. Raise the engine 2 1/4 inches measuring from the bottom of the oil pan to the front edge of the transmission support crossmember.
  11. Shift the engine towards the left side of the frame.

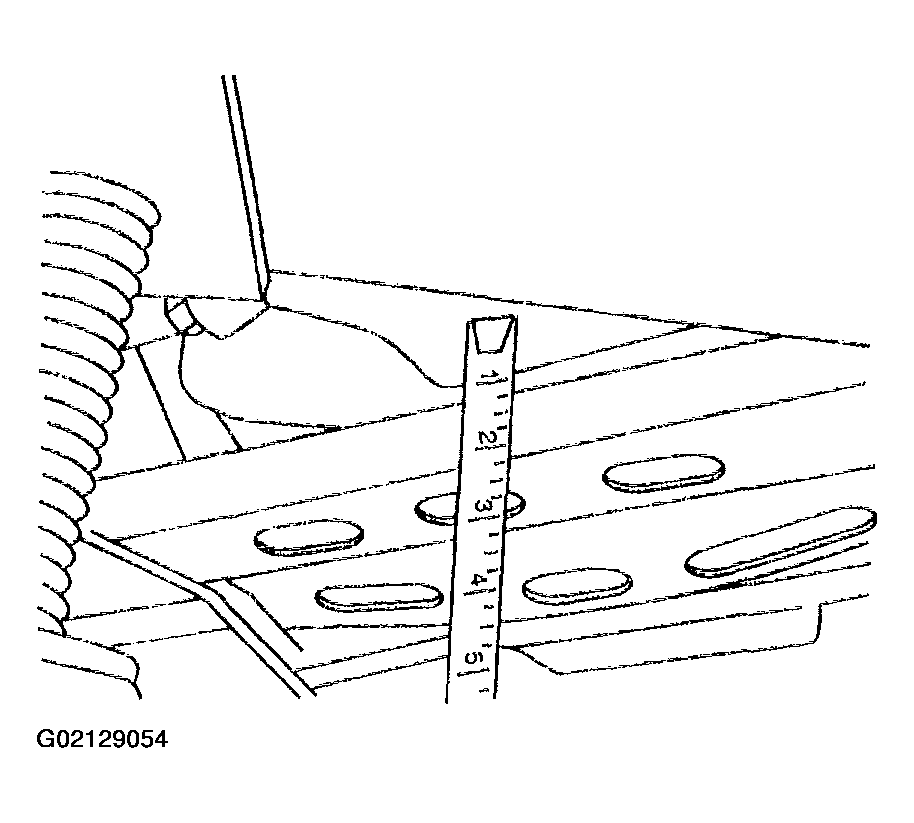

    Fig 5: Measuring From Bottom Of Oil Pan To Front Edge Of Transmission Support Crossmember
    G02129054Courtesy of GENERAL MOTORS CORP.
  12. Remove the engine mount frame bracket from the frame.

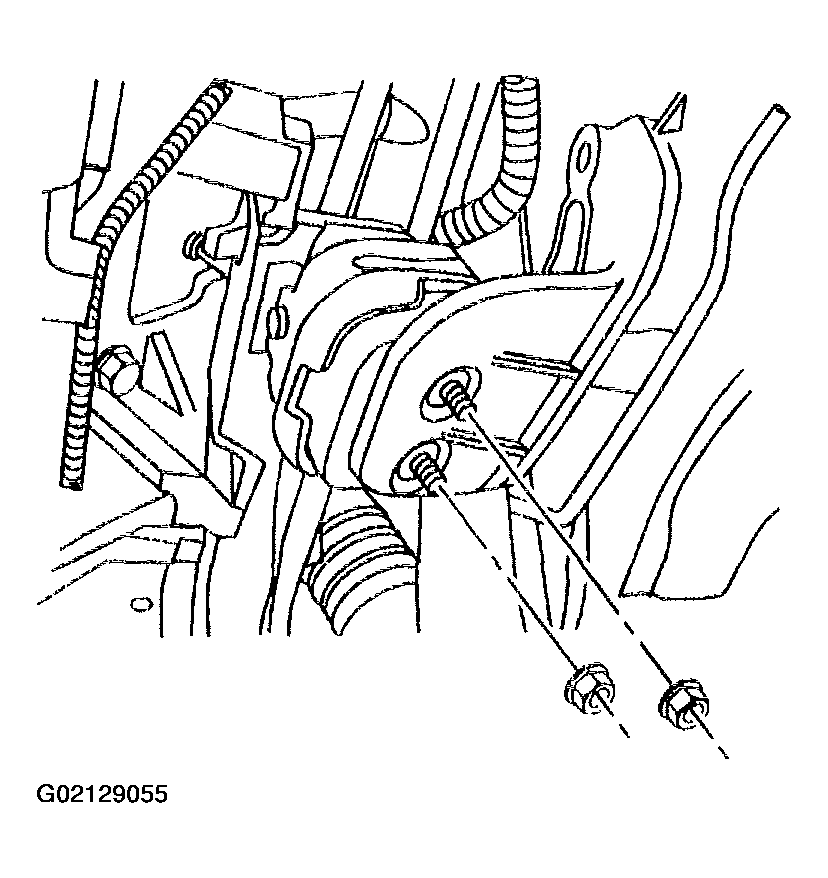

    Fig 6: Removing Engine Mount Frame Bracket From Frame
    G02129055Courtesy of GENERAL MOTORS CORP.
  13. Remove the engine mount with upper engine mount bracket as an assembly.
  14. Separate the engine mount from the upper engine mount bracket.

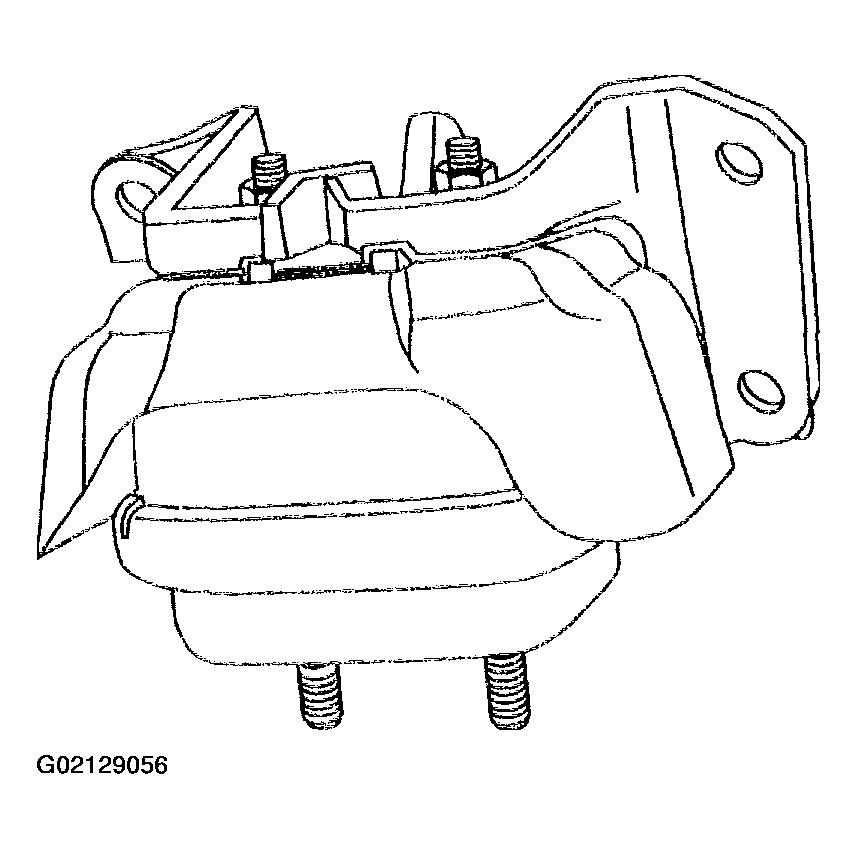

    Fig 7: Removing Engine Mount With Upper Engine Mount Bracket
    G02129056Courtesy of GENERAL MOTORS CORP.
  15. Remove the engine mount bracket spacer if damaged.

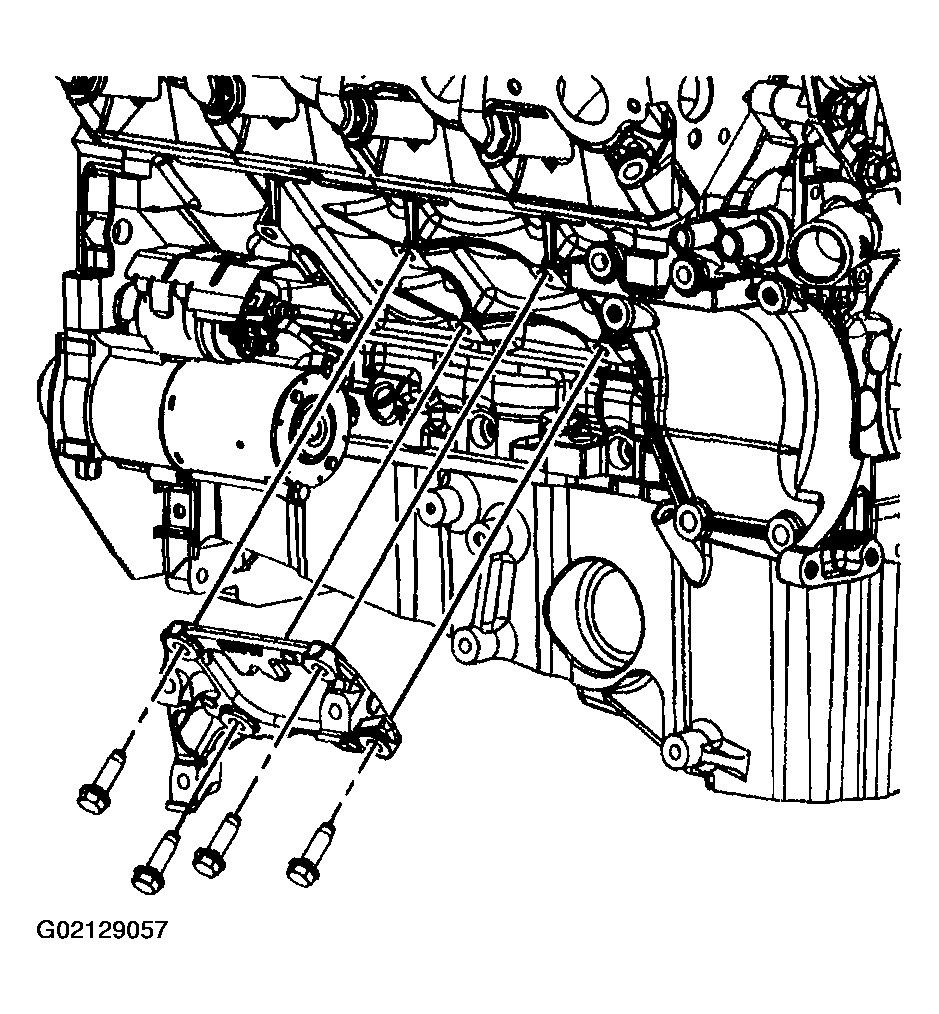

    Fig 8: Removing Engine Mount Bracket Spacer
    G02129057Courtesy of GENERAL MOTORS CORP.
