Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the engine mount bracket spacer if it has been replaced.

    Tighten

    Torque the engine mount bracket spacer bolts to 50 N.m (37 lb ft).

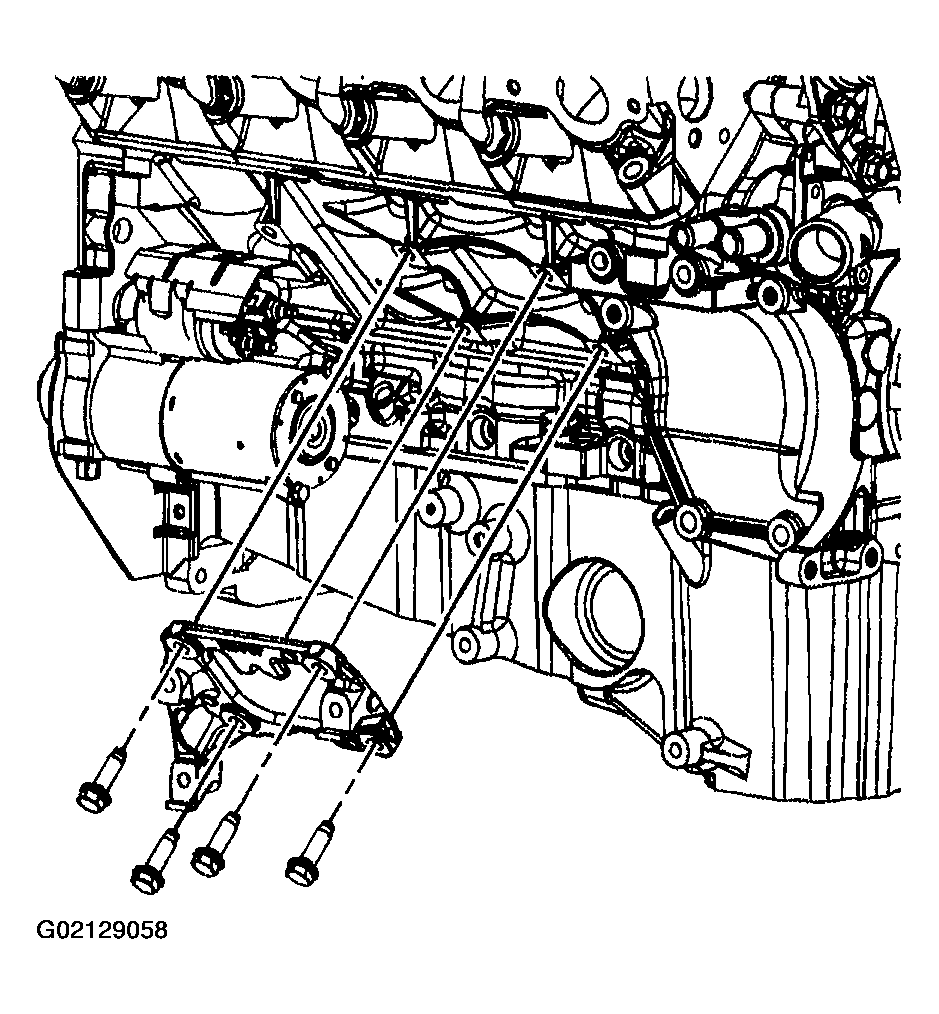

    Fig 1: Installing Engine Mount Bracket Spacer
    G02129058Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure that the cut out side of the engine mount shield is positioned away from the engine.
  2. Install the engine mount to the upper engine mount bracket.

    Tighten

    Tighten the engine mount nuts to 50 N.m (37 lb ft)

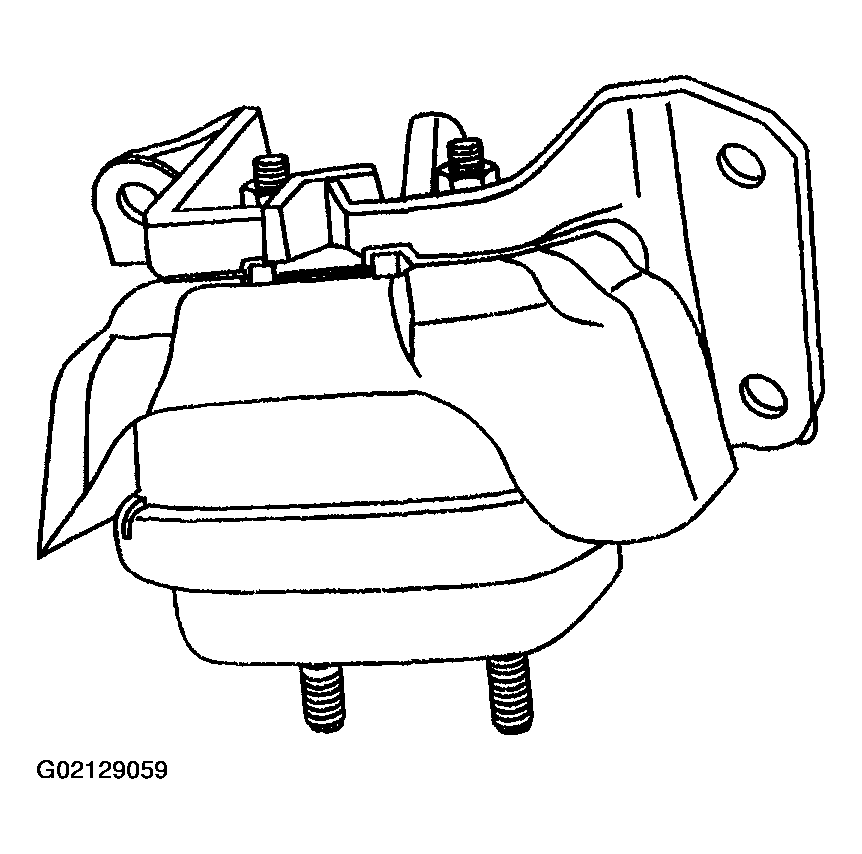

    Fig 2: Installing Engine Mount To Upper Engine Mount Bracket
    G02129059Courtesy of GENERAL MOTORS CORP.
  3. Install the engine mount to engine.

    Tighten

    Torque the engine mount bolts to 50 N.m (37 lb ft).

  4. Install the engine mount frame bracket to the frame.
  5. Install the engine mount frame bracket retaining bolts.

    Tighten

    Torque the engine mount frame bracket retaining bolts to 100 N.m (74 lb ft).

  6. Shift engine back to the right side of the frame.
  7. Install the left side engine mount frame bracket.
  8. Install the left side engine mount frame bracket retaining bolts.

    Tighten

    Torque the left side engine mount frame bracket retaining bolts to 100 N.m (74 lb ft).

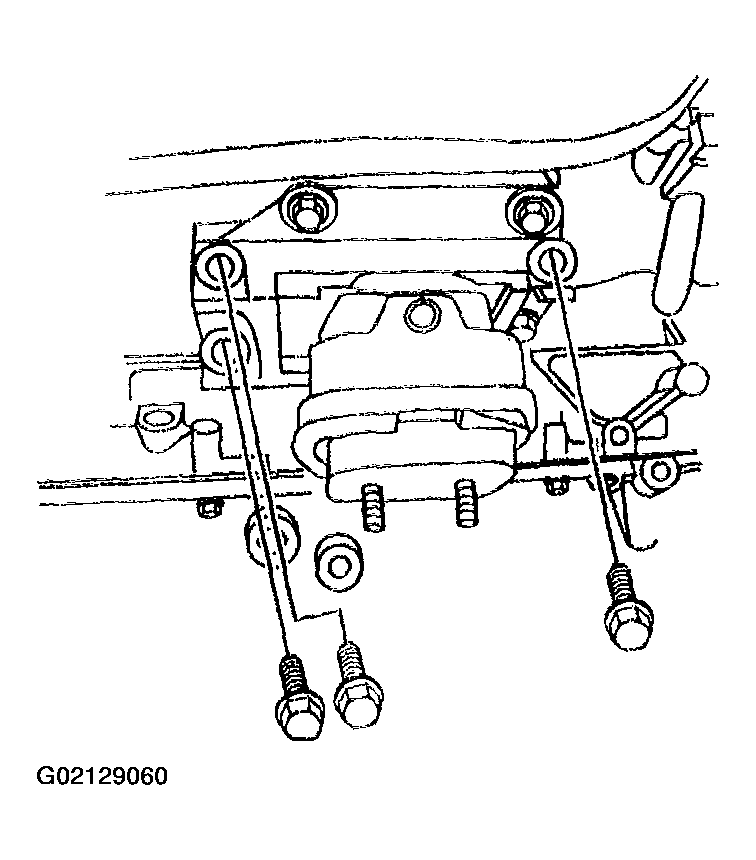

    Fig 3: Installing Engine Mount Frame Bracket To Frame
    G02129060Courtesy of GENERAL MOTORS CORP.
  9. Lower the engine, making sure to align engine mount studs with holes in frame bracket.
  10. Remove the pole jack and block of wood.
  11. Tighten the engine mount nuts.

    Tighten

    Torque the engine mount nuts to 50 N.m (37 lb ft).

  12. Install the shock module. Refer to SHOCK MODULE REPLACEMENT  in Front Suspension.
  13. Install the Engine Protection Shield. Refer to ENGINE PROTECTION SHIELD REPLACEMENT in Frame and Underbody.
  14. Install the front tire and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  15. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.

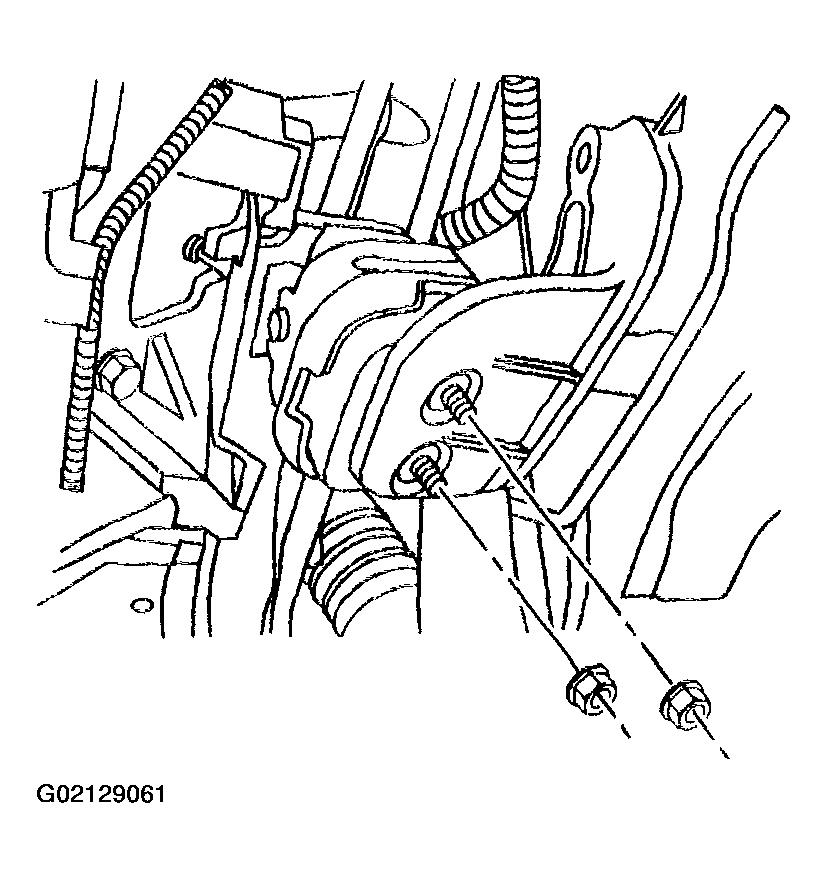

    Fig 4: Tightening Engine Mount Nuts
    G02129061Courtesy of GENERAL MOTORS CORP.
