Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. Refer to AUTOMATIC TRANSMISSION - REMOVAL & INSTALLATION in Automatic Transmission - 4L60-E.
    IMPORTANT: Note the position and direction of the engine flywheel before removal.
  2. Remove the engine flywheel bolts.
  3. Remove the engine flywheel.
  4. Clean and inspect the engine flywheel. Refer to ENGINE FLYWHEEL CLEANING AND INSPECTION   .

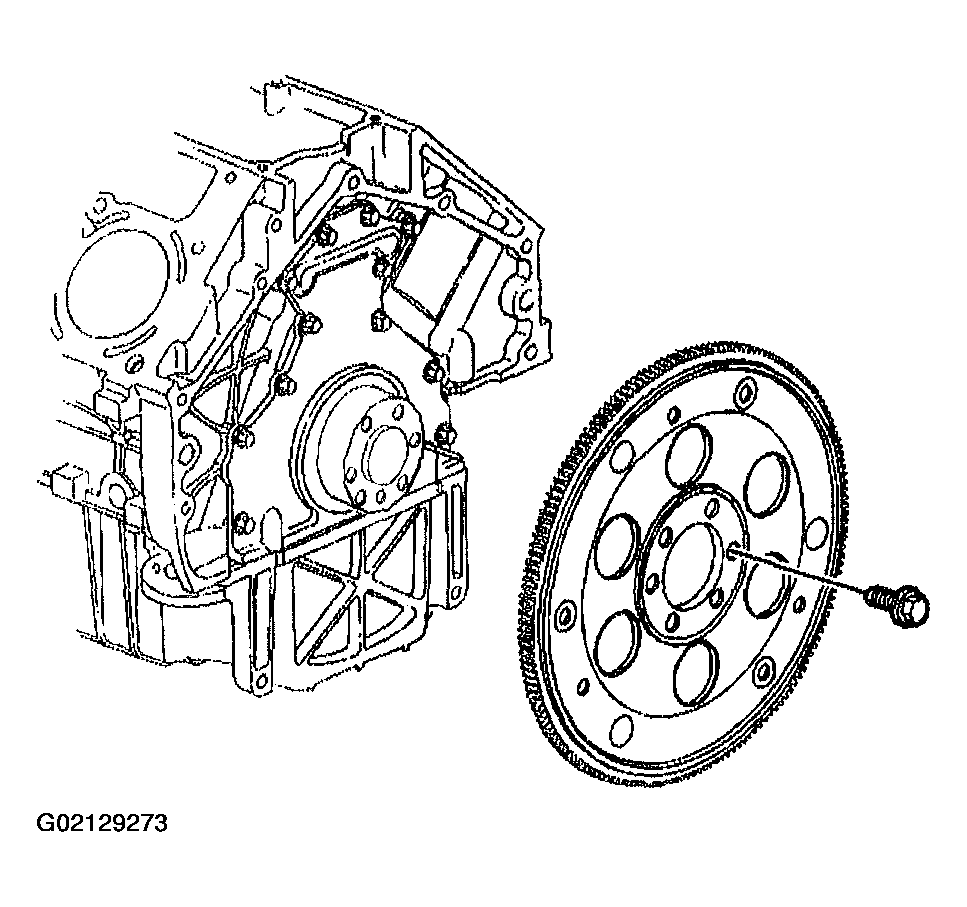

    Fig 1: Removing Engine Flywheel
    G02129273Courtesy of GENERAL MOTORS CORP.
