Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air conditioning (A/C) drive belt. Refer to DRIVE BELT REPLACEMENT - AIR CONDITIONING   .
  2. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  3. Remove the A/C belt tensioner bolts.
  4. Remove the A/C belt tensioner.

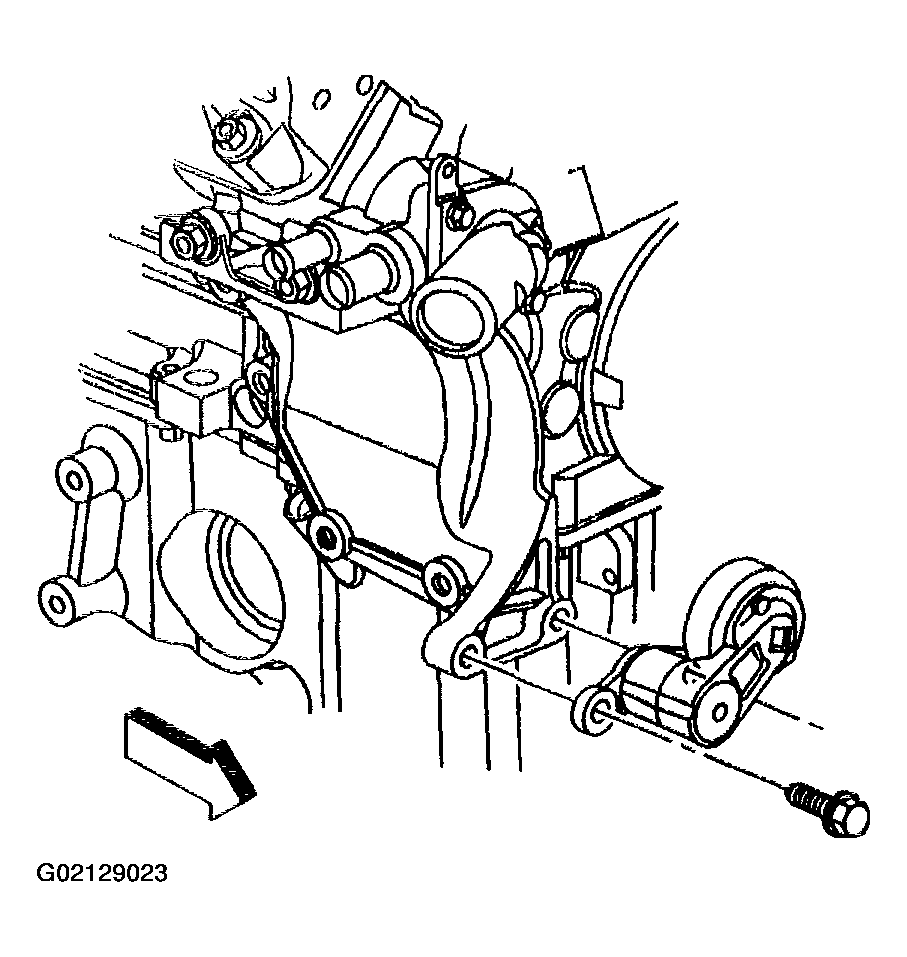

    Fig 1: Removing A/C Belt Tensioner
    G02129023Courtesy of GENERAL MOTORS CORP.
