Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the A/C belt tensioner.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the A/C belt tensioner bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  3. Lower the vehicle.
  4. Install the A/C drive belt. Refer to DRIVE BELT REPLACEMENT - AIR CONDITIONING   .

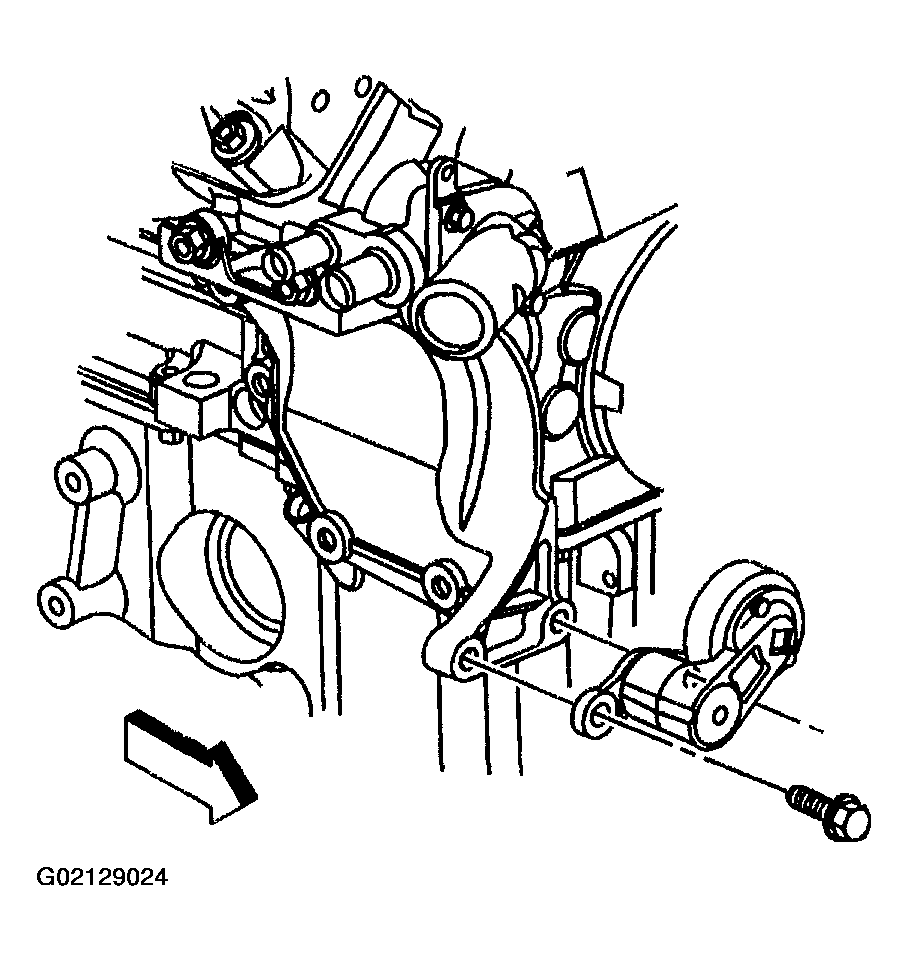

    Fig 1: Installing A/C Belt Tensioner
    G02129024Courtesy of GENERAL MOTORS CORP.
