Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. Refer to DRIVE BELT REPLACEMENT - ACCESSORY   .
  2. Remove the drive belt tensioner bolts.
  3. Remove the drive belt tensioner.

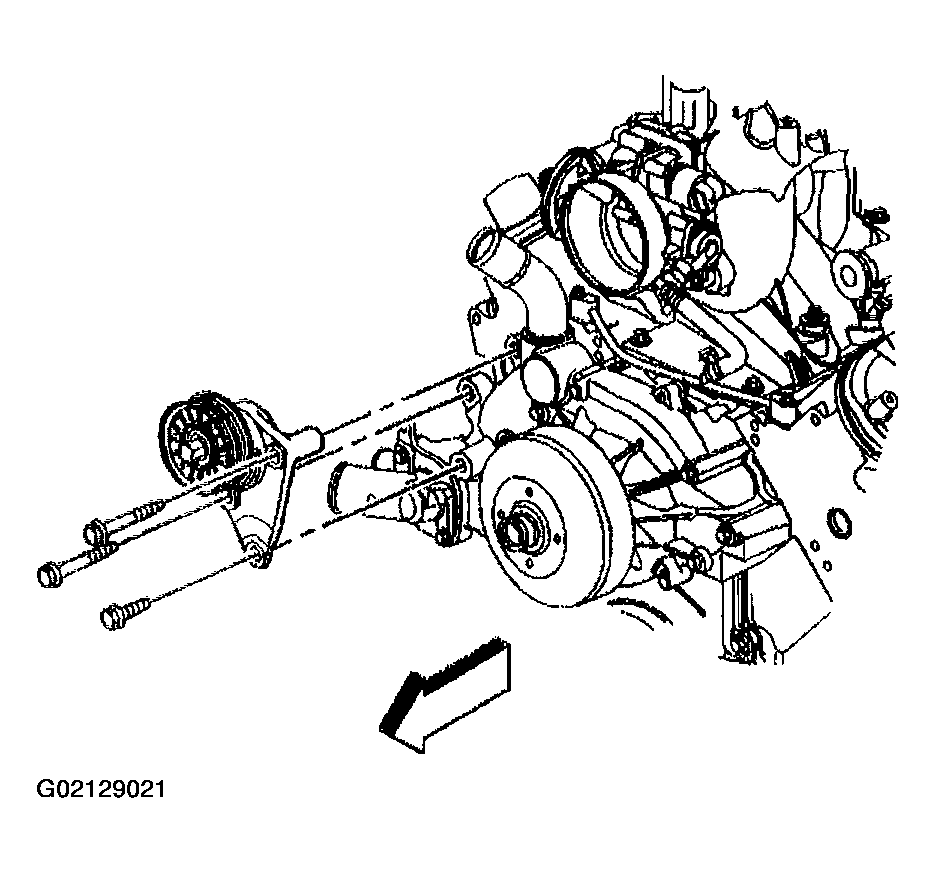

    Fig 1: Removing Drive Belt Tensioner
    G02129021Courtesy of GENERAL MOTORS CORP.
