Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner.
  2. Install the drive belt tensioner bolts.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Tighten the drive belt tensioner bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  4. Install the accessory drive belt. Refer to DRIVE BELT REPLACEMENT - ACCESSORY   .

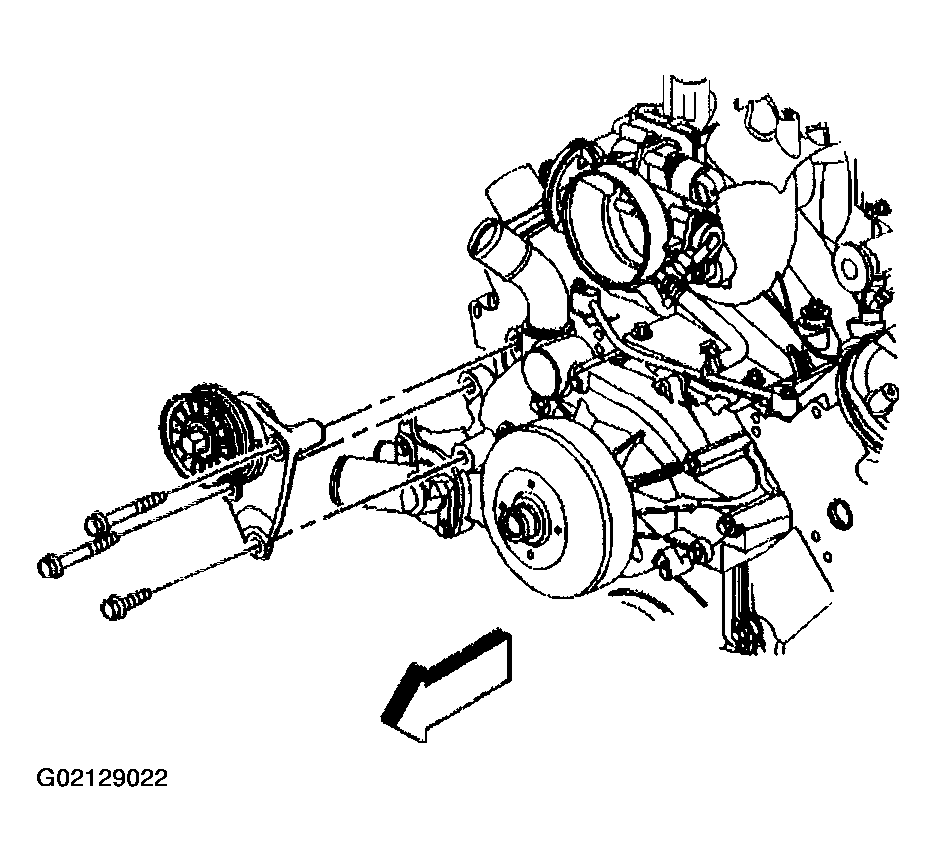

    Fig 1: Installing Drive Belt Tensioner
    G02129022Courtesy of GENERAL MOTORS CORP.
