Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the A/C belt around the crankshaft balancer.
  2. Install a ratchet into the A/C drive belt tensioner adapter opening
  3. Rotate the A/C belt tensioner clockwise in order to relieve tension on the tensioner.
  4. Install the A/C belt over the idler pulley.
  5. Install the A/C belt around the A/C compressor pulley.
  6. Slowly release the tension on the A/C belt tensioner.
  7. Remove the ratchet from the A/C belt tensioner.
  8. Inspect the A/C belt for proper installation and alignment.
  9. Install the accessory drive belt. Refer to DRIVE BELT REPLACEMENT - ACCESSORY   .

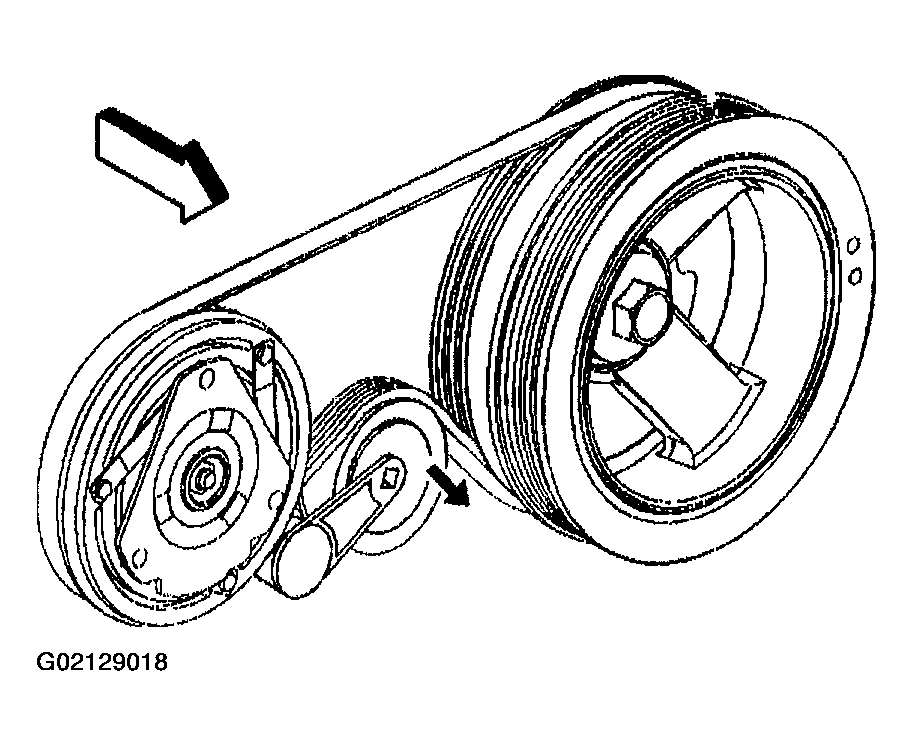

    Fig 1: A/C Drive Belt Routing
    G02129018Courtesy of GENERAL MOTORS CORP.
