Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the drive belt idler pulley bolt.
  2. Remove the accessory drive belt. Refer to DRIVE BELT REPLACEMENT - ACCESSORY   .
  3. Remove the drive belt idler pulley and bolt.

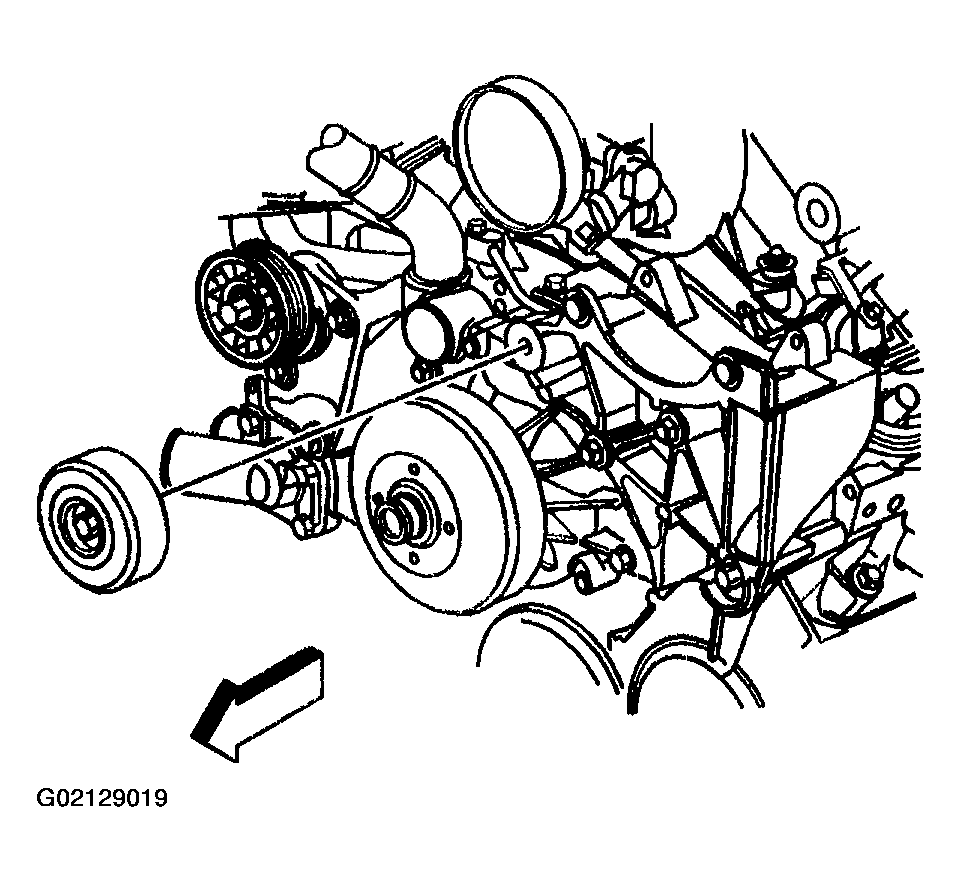

    Fig 1: Removing Drive Belt Idler Pulley
    G02129019Courtesy of GENERAL MOTORS CORP.
