Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt idler pulley and bolt to the generator bracket.

    Snug the bolt finger tight.

  2. Install the drive belt. Refer to DRIVE BELT REPLACEMENT - ACCESSORY   .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Tighten the drive belt idler pulley bolt.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

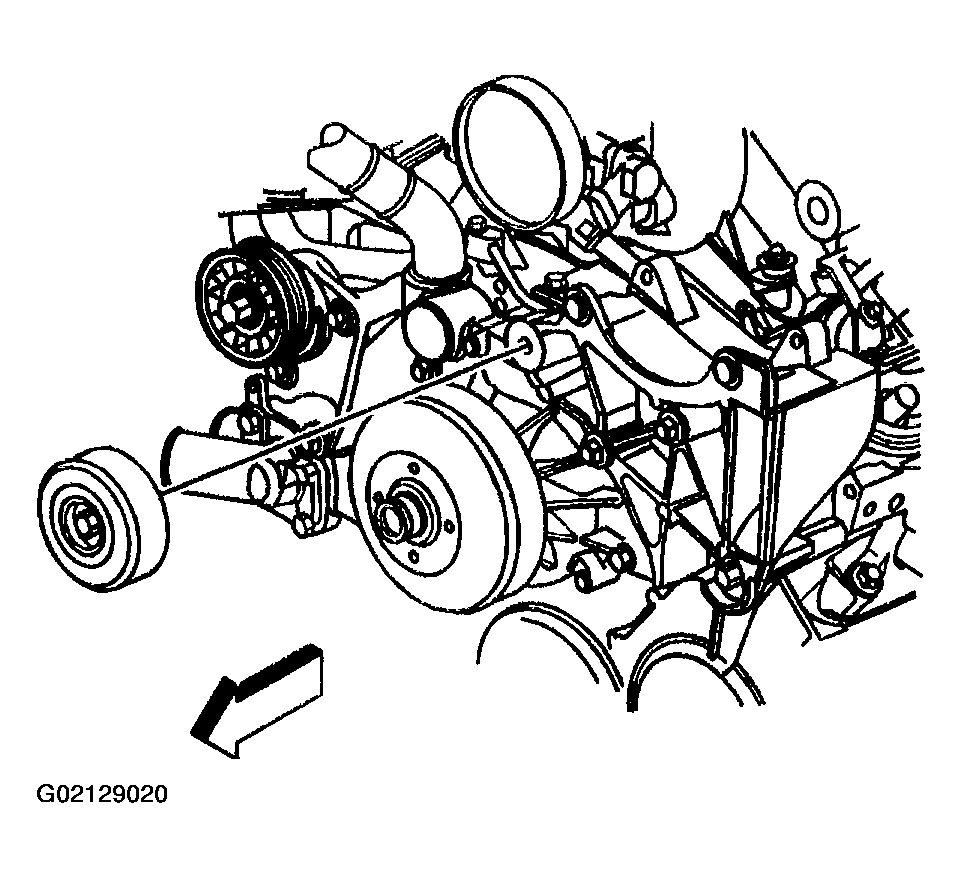

    Fig 1: Installing Drive Belt Idler Pulley
    G02129020Courtesy of GENERAL MOTORS CORP.
