Removal Procedure
WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the air conditioning (A/C) drive belt, if equipped. Refer to DRIVE BELT REPLACEMENT - AIR CONDITIONING .
- Remove the accessory drive belt, if not equipped with A/C. Refer to DRIVE BELT TENSIONER REPLACEMENT - AIR CONDITIONING .
- Remove the fan shroud. Refer to COOLING FAN AND SHROUD REPLACEMENT in Engine Cooling.
- Remove the starter motor. Refer to STARTING SYSTEM
in Engine Electrical.
IMPORTANT:
- Make sure that the teeth of the J 42386-A mesh with the teeth of the engine flywheel.
- The crankshaft balancer is balanced as an individual component. It is not necessary to mark the balancer prior to removal.

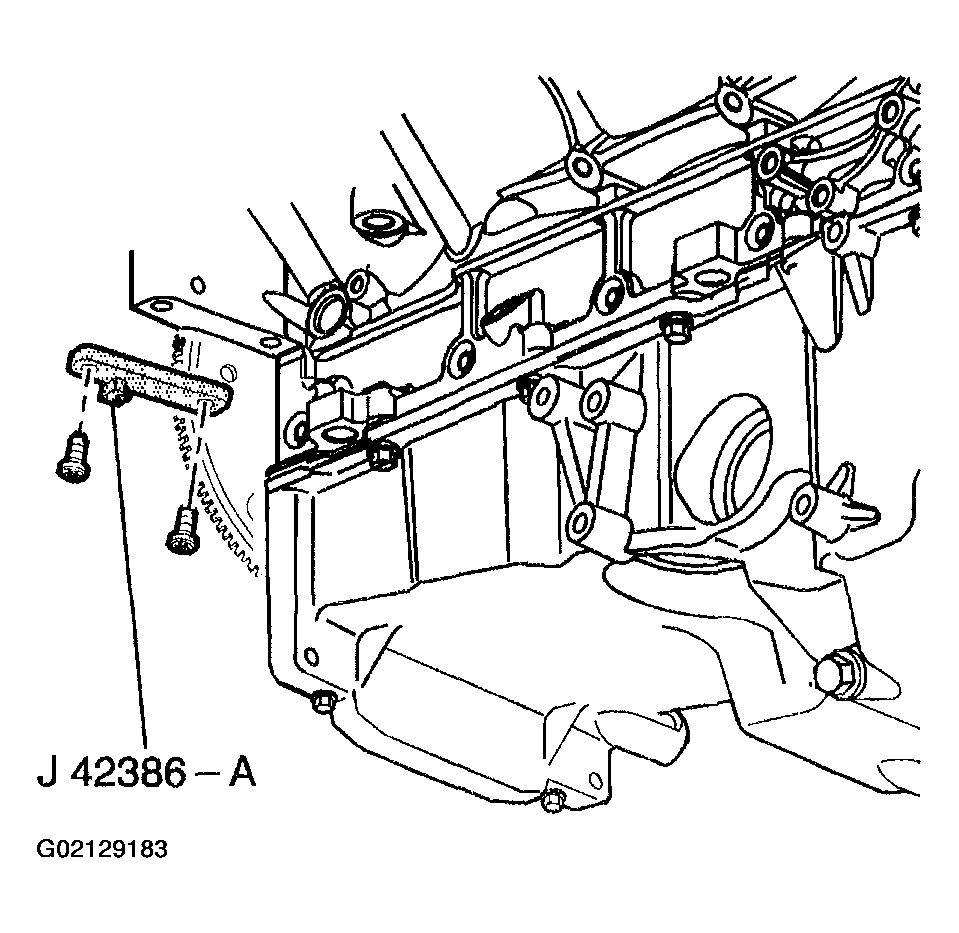

NOTE: Refer to FASTENER NOTICE in Cautions and Notices. - Install the J 42386-A
and bolts.
Use one M10-1.5 x 120 mm and one M10-1.5 x 45 mm bolt for proper tool operation.
Tighten
Tighten the J 42386-A bolts to 50 N.m (37 lb ft).

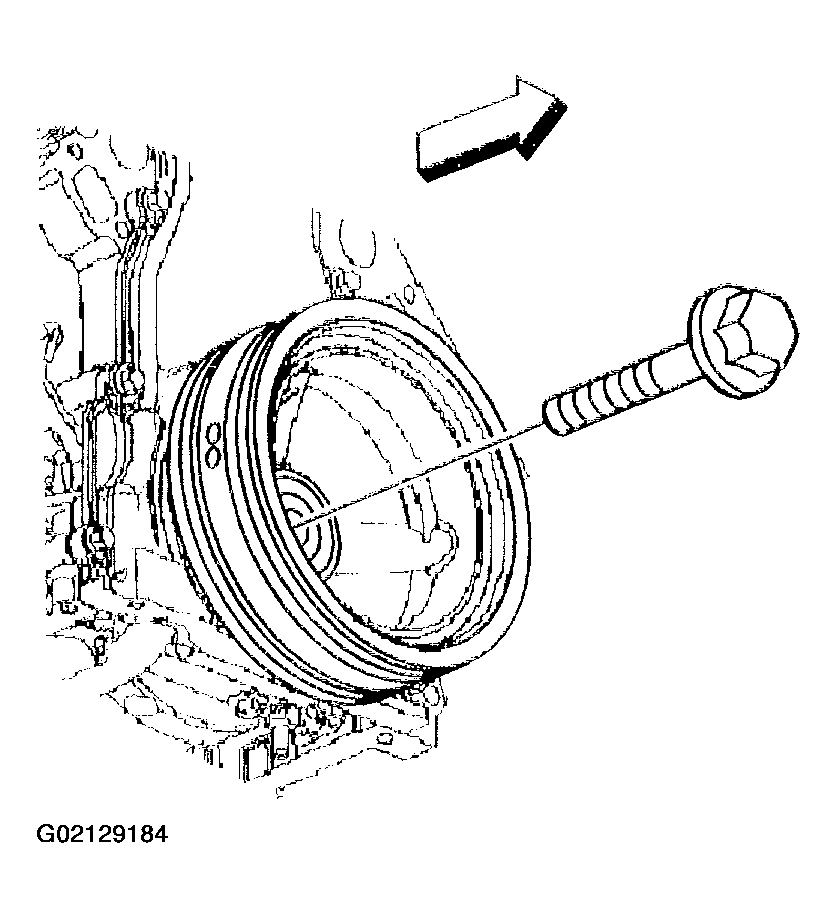

- Remove the crankshaft balancer bolt.
Do not discard the crankshaft balancer bolt. The balancer bolt will be used during the balancer installation procedure.

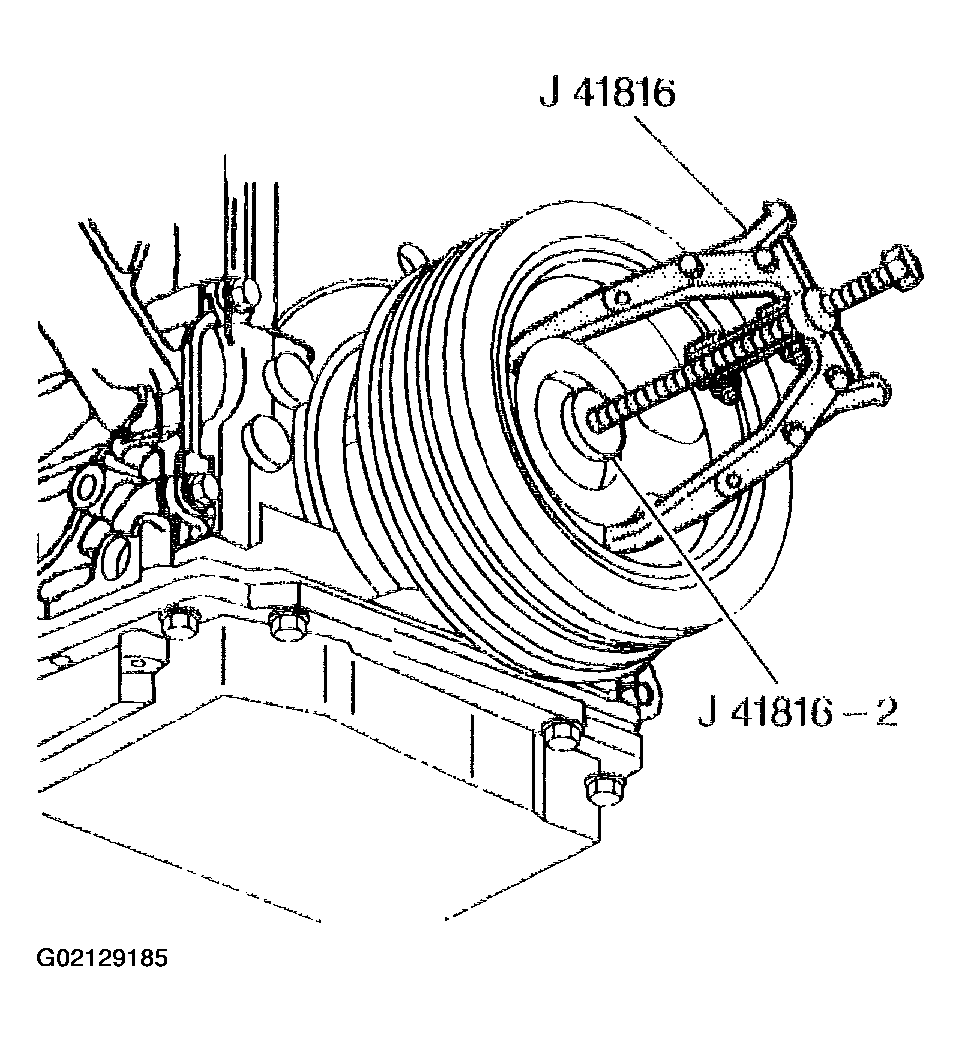

- Use the J 41816 and J 41816-2 in order to remove the crankshaft balancer.
- Remove the J 41816 and the J 41816-2 from the crankshaft balancer.
- Clean and inspect the crankshaft balancer. Refer to CRANKSHAFT BALANCER CLEANING AND INSPECTION .
