Water Pump Removal

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump bolts.
  2. Remove the water pump and gaskets.
  3. Discard the water pump gaskets.

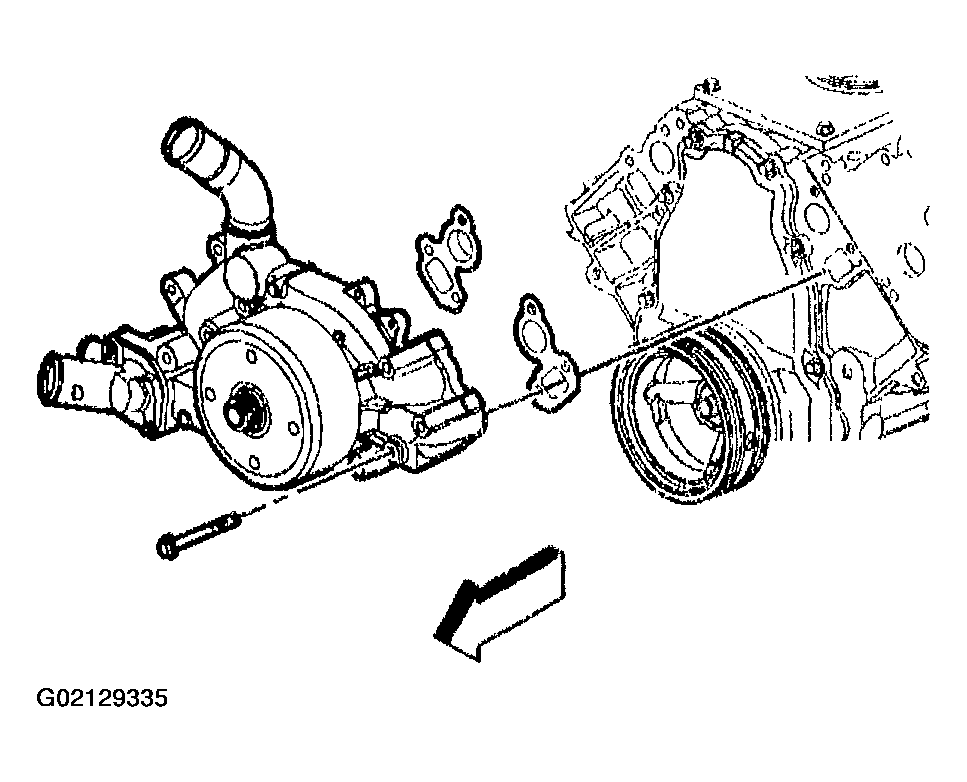

    Fig 1: Removing Water Pump And Gaskets
    G02129335Courtesy of GENERAL MOTORS CORP.
