Valve Rocker Arm Cover Removal - Left

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not remove the ignition coils and bracket from the valve rocker arm cover unless required.

Do not remove the positive crankcase ventilation (PCV) valve grommet from the cover unless service is required.

Remove the ignition coil bracket bolts from the rocker arm cover, if required.
Remove the ignition coil and bracket assembly from the cover.

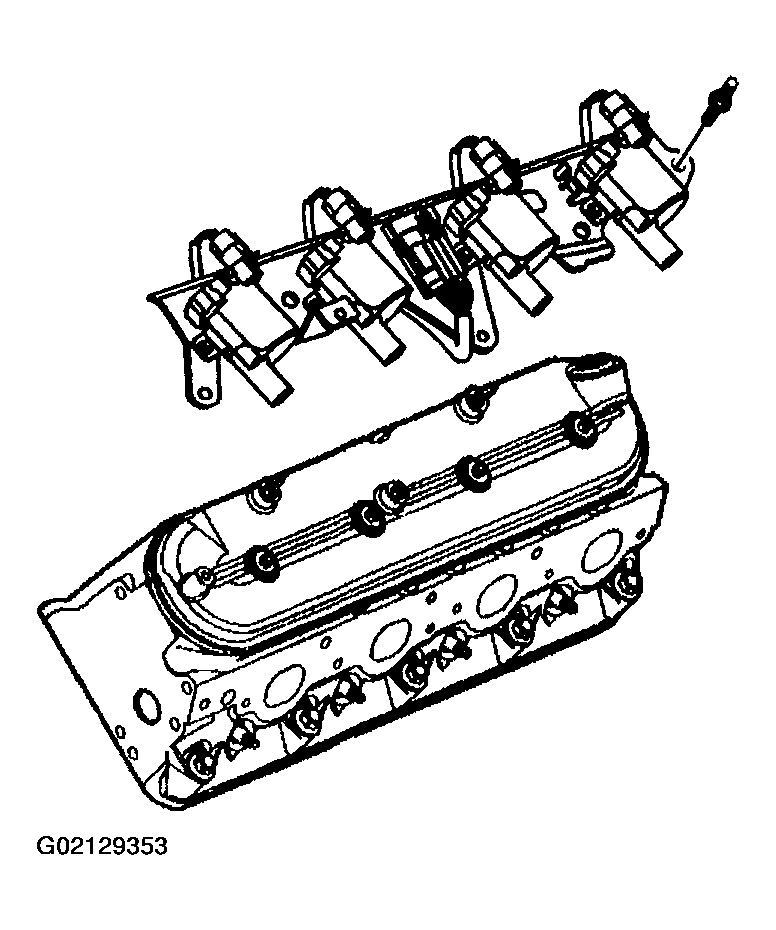

Fig 1: Removing Ignition Coil And Bracket Assembly From Cover
Courtesy of GENERAL MOTORS CORP.
Remove the valve rocker arm cover bolts.
Remove the valve rocker arm cover.

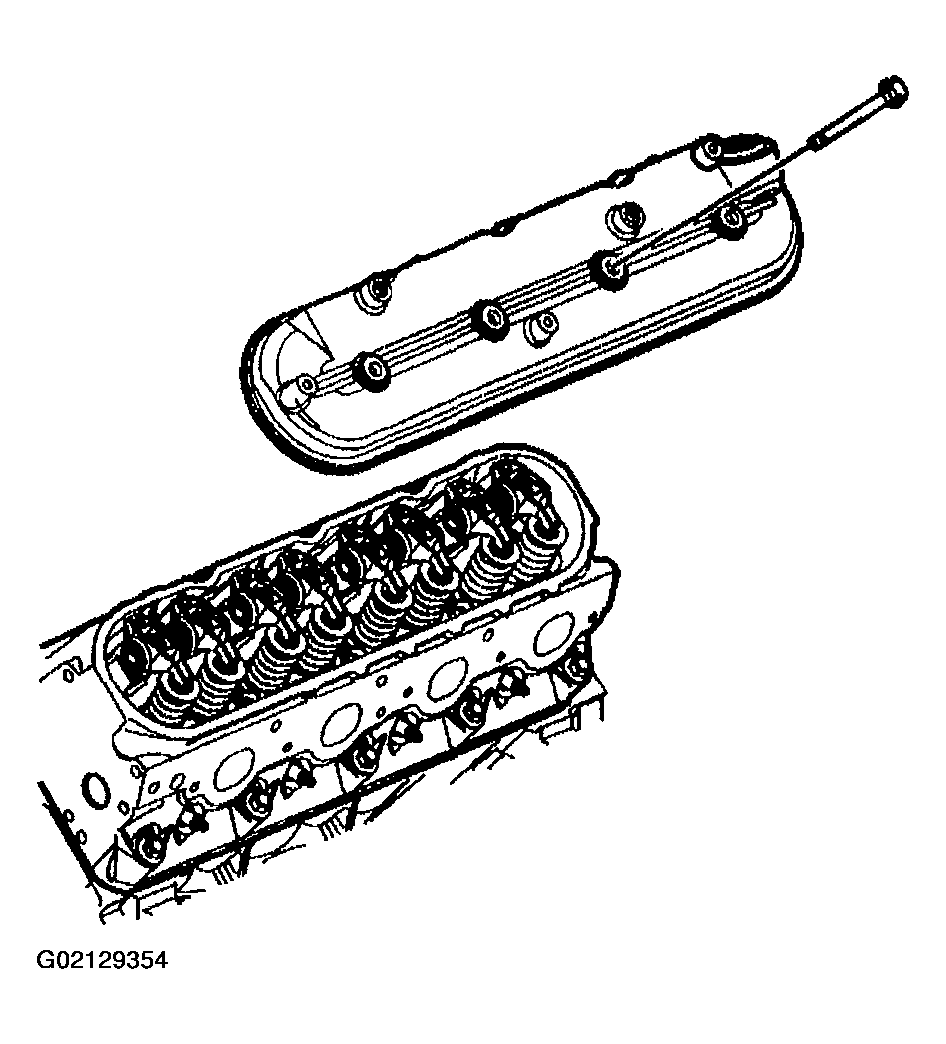

Fig 2: Removing Valve Rocker Arm Cover
Courtesy of GENERAL MOTORS CORP.
Remove the gasket (1) from the cover.
Discard the gasket.
The bolt grommets may be used again if not damaged.

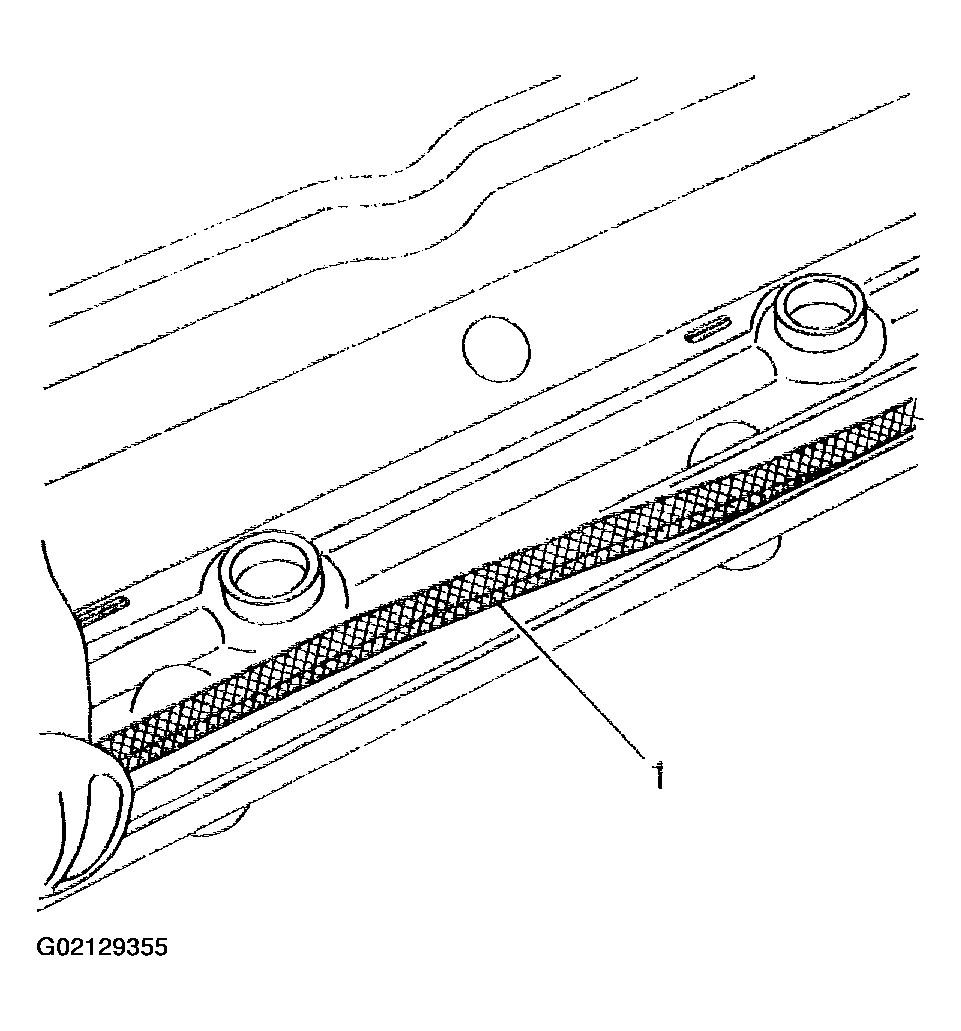

Fig 3: Removing Gasket From Cover
Courtesy of GENERAL MOTORS CORP.
