Timing Chain and Sprockets Cleaning and Inspection

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Clean the components with cleaning solvent.
CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
Dry the components with compressed air.
Inspect the timing chain for binding or wear.

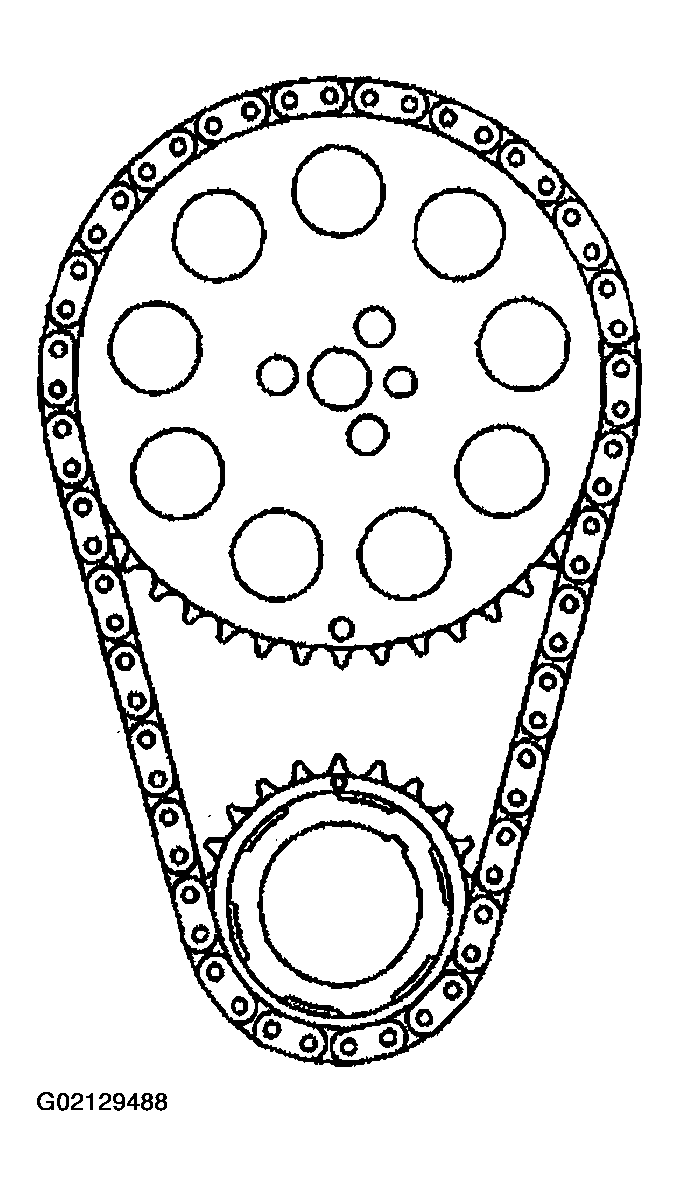

Fig 1: Inspecting Timing Chain
Courtesy of GENERAL MOTORS CORP.
Inspect the camshaft and crankshaft sprockets for:
- Worn teeth (1)
- Damaged teeth (2)
- Chipped teeth (3)
- Worn valleys between the sprocket teeth

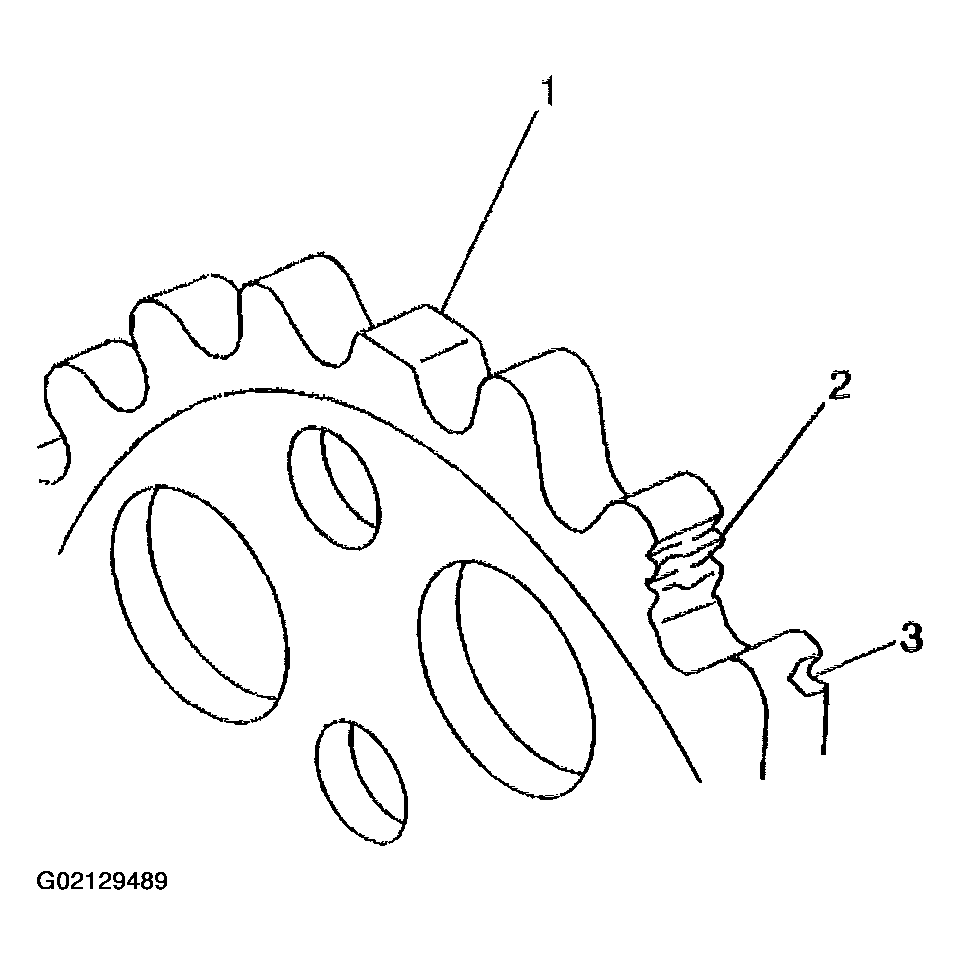

  Fig 2: Inspecting Camshaft And Crankshaft Sprockets
  Courtesy of GENERAL MOTORS CORP.
Inspect the crankshaft sprocket keyway for wear.
Inspect the crankshaft sprocket oil pump drive splines for wear.

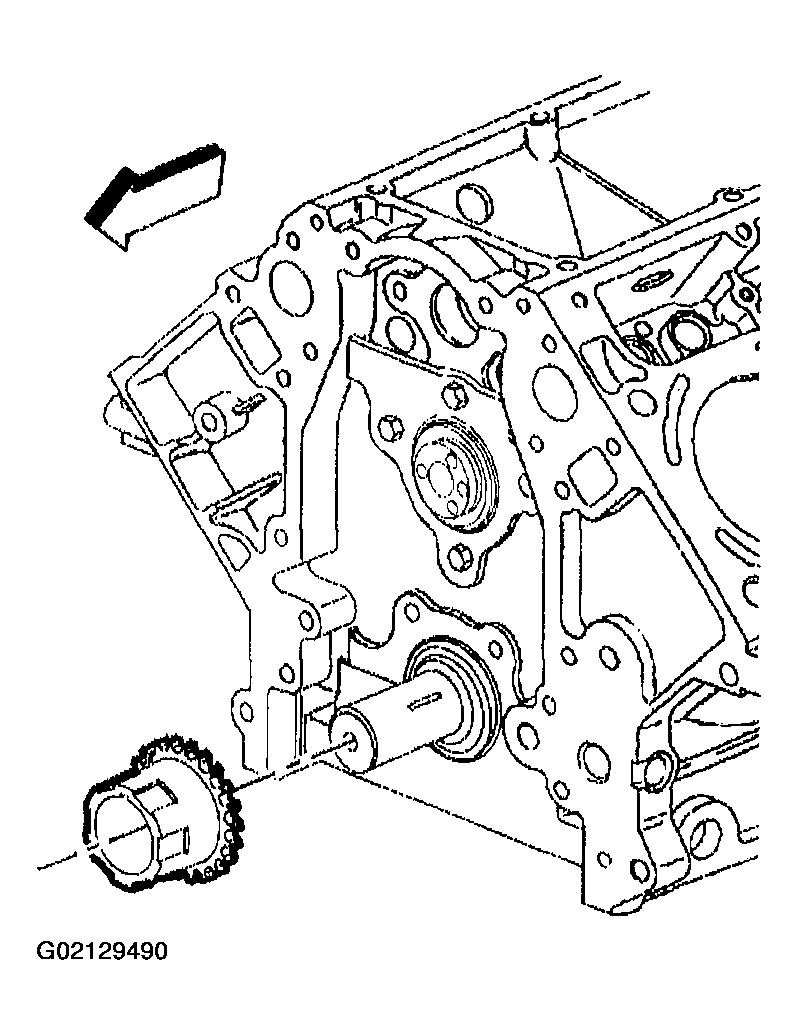

Fig 3: Inspecting Crankshaft Sprocket Oil Pump Drive Splines
Courtesy of GENERAL MOTORS CORP.
