Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator from the tube.
  2. Remove the oil level indicator tube bolt.
  3. Remove the oil level indicator tube from the engine block.
    IMPORTANT: Inspect the O-ring seal for cuts or damage. The O-ring seal may be used again if it is not cut or damaged.
  4. Remove the O-ring seal from the tube, if required.

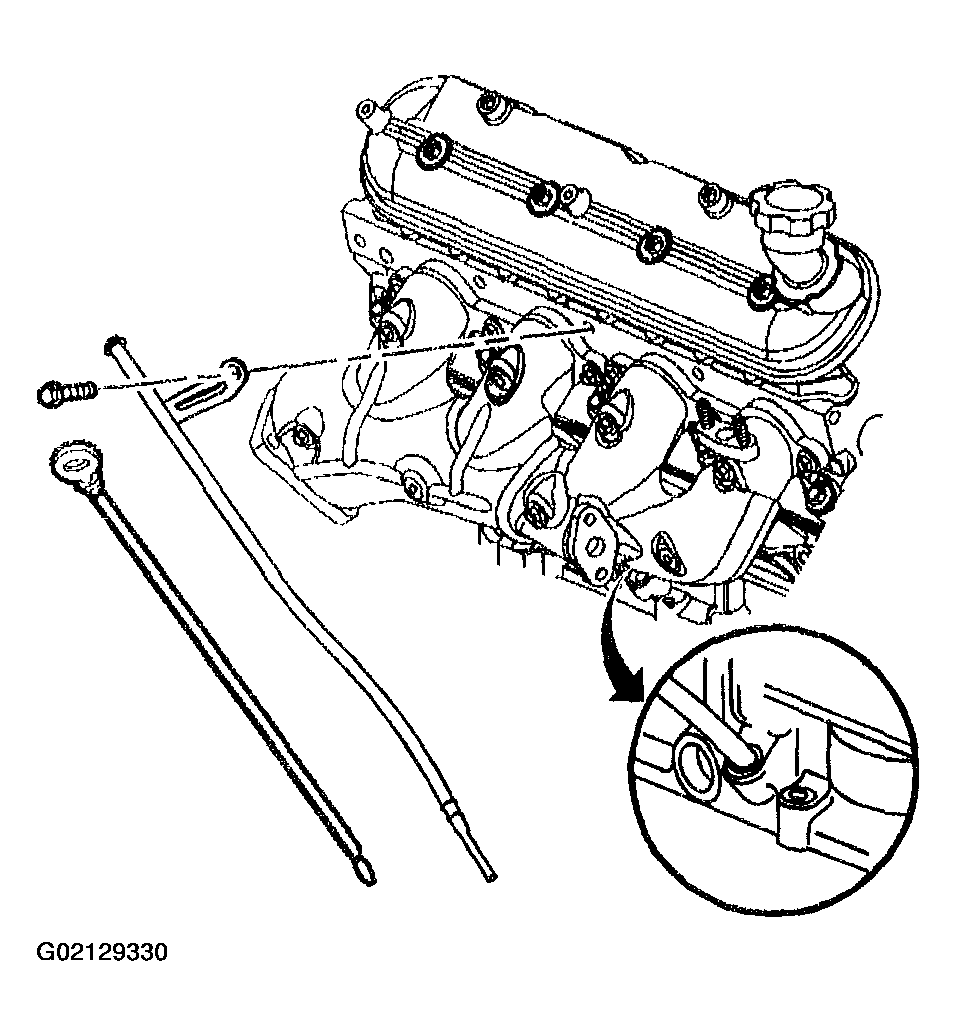

    Fig 1: Removing O-Ring Seal From Tube
    G02129330Courtesy of GENERAL MOTORS CORP.
