Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the O-ring seal for cuts or damage. If the oil level indicator tube O-ring seal is not cut or damaged, it may be used again.
  2. Lubricate the O-ring seal with clean engine oil.
  3. Install the O-ring seal onto the oil level indicator tube.
  4. Install the oil level indicator tube into the engine block and rotate into proper position.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the tube bolt.

    Tighten

    Tighten the oil level indicator tube bolt to 25 N.m (18 lb ft).

  6. Install the oil level indicator into the tube.

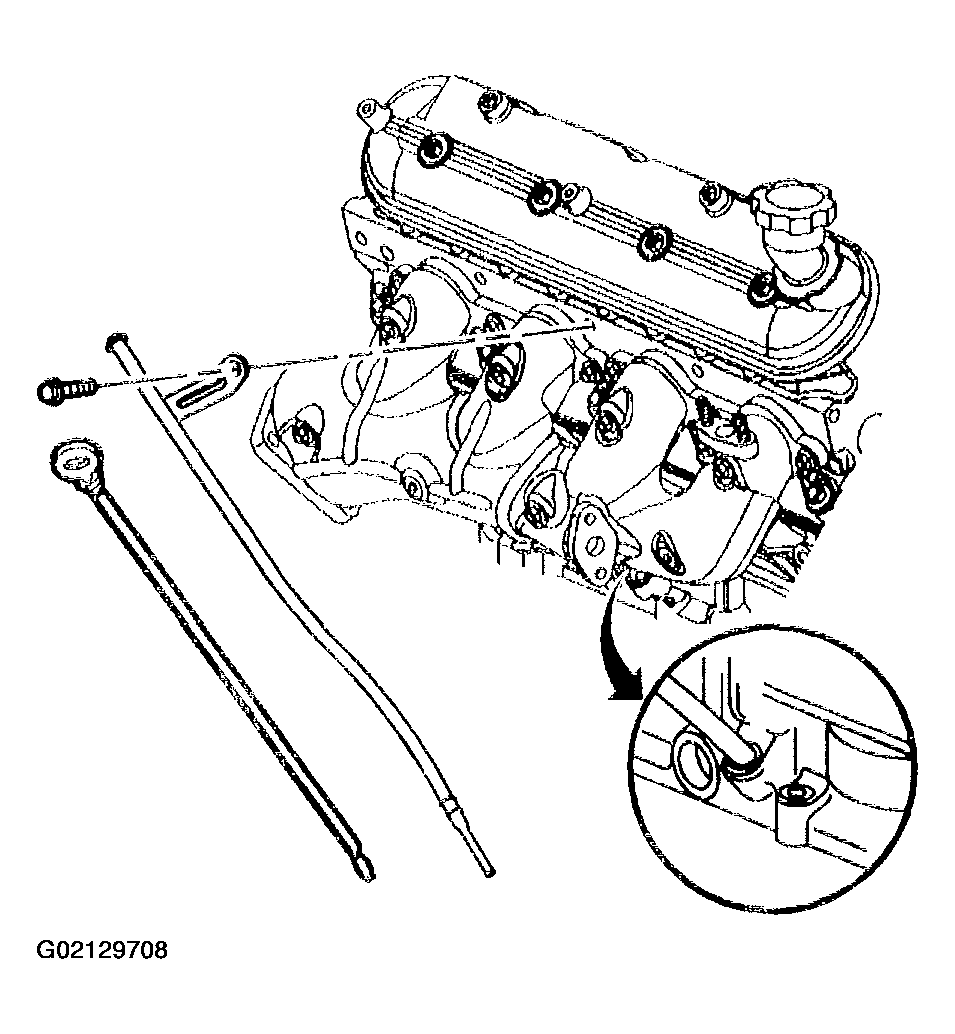

    Fig 1: Installing Oil Level Indicator Tube Into Engine Block
    G02129708Courtesy of GENERAL MOTORS CORP.
