Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plug wires from the spark plugs.

    Do not remove the spark plug wires from the ignition coils unless required.

  2. Remove the exhaust manifold, bolts, and gasket.
  3. Discard the gasket.

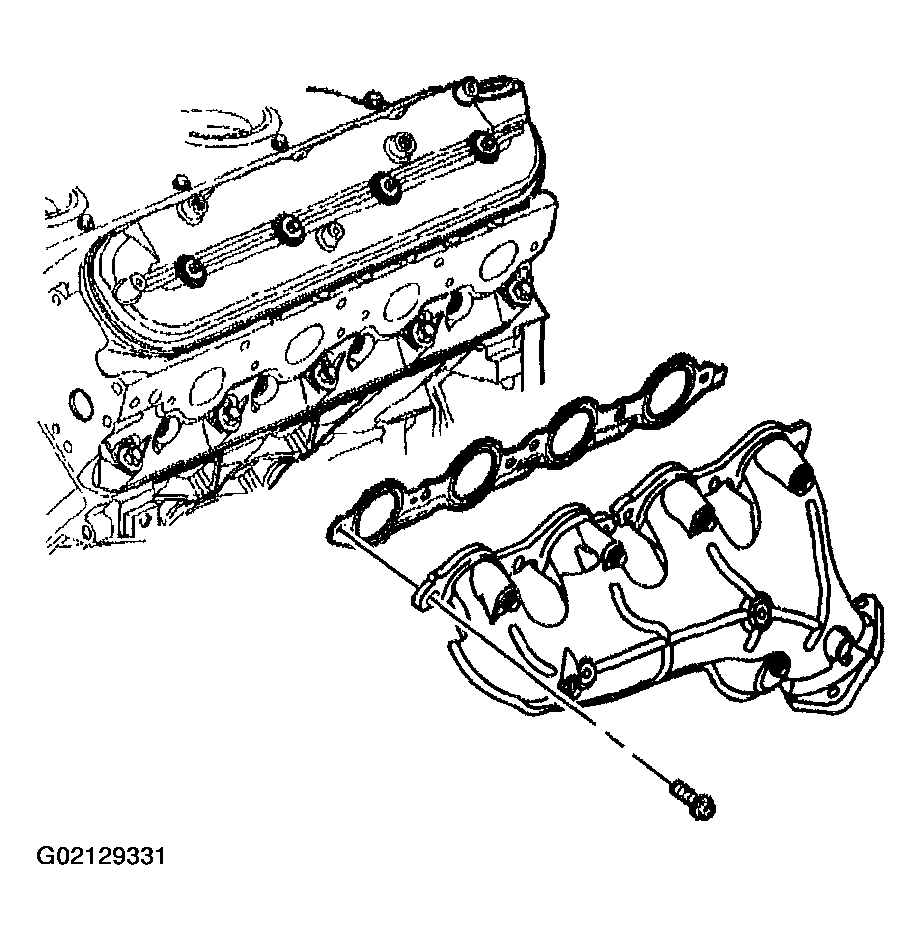

    Fig 1: Removing Left Exhaust Manifold, Bolts, And Gasket
    G02129331Courtesy of GENERAL MOTORS CORP.
  4. Remove the heat shield (2) and bolts (3) from the manifold (1), if required.

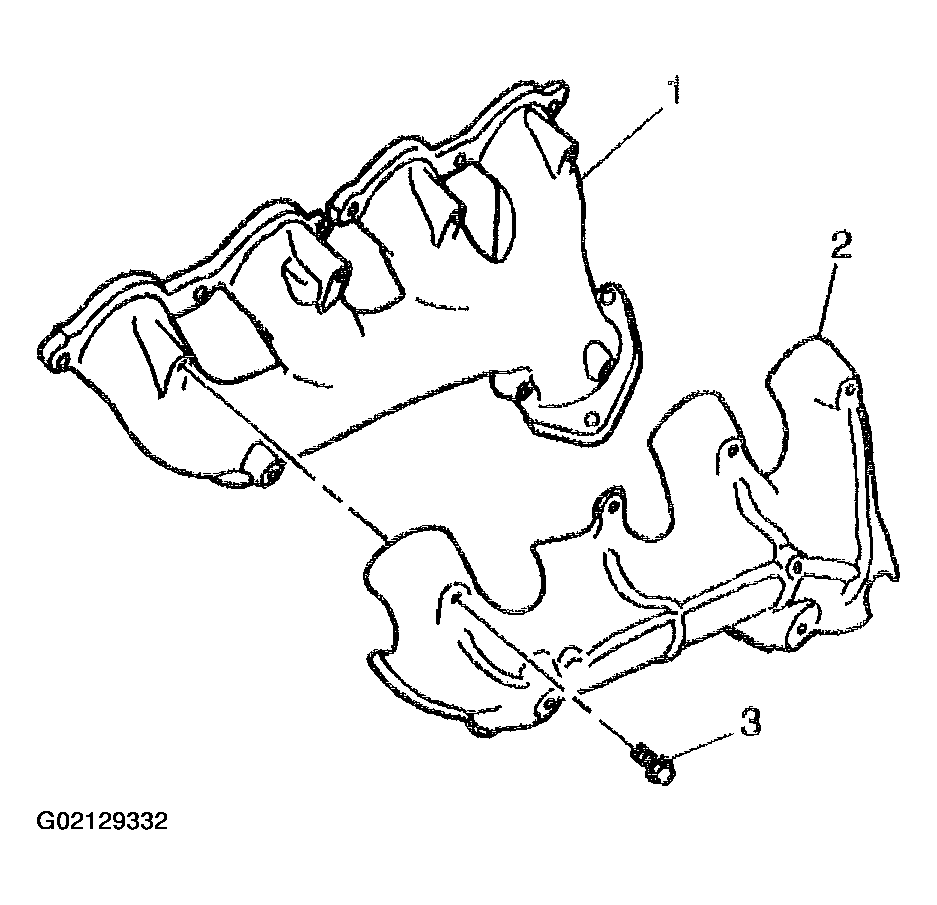

    Fig 2: Removing Heat Shield And Bolts From Left Manifold
    G02129332Courtesy of GENERAL MOTORS CORP.
