Exhaust Manifold Installation - Left
WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
- Tighten the exhaust manifold bolts as specified in the service procedure. Improperly installed and/or leaking exhaust manifold gaskets may affect vehicle emissions and/or On-Board Diagnostic (OBD) II system performance.
- The cylinder head exhaust manifold bolt hole threads must be clean and free of debris or threadlock material.
IMPORTANT:
Do not apply sealant to the first three threads of the bolt.
- Apply a 5 mm (0.2 in) wide band of threadlock GM P/N 12345493 (Canadian P/N 10953488) or equivalent to the threads of the exhaust manifold bolts. Refer to SEALERS, ADHESIVES, AND LUBRICANTS .

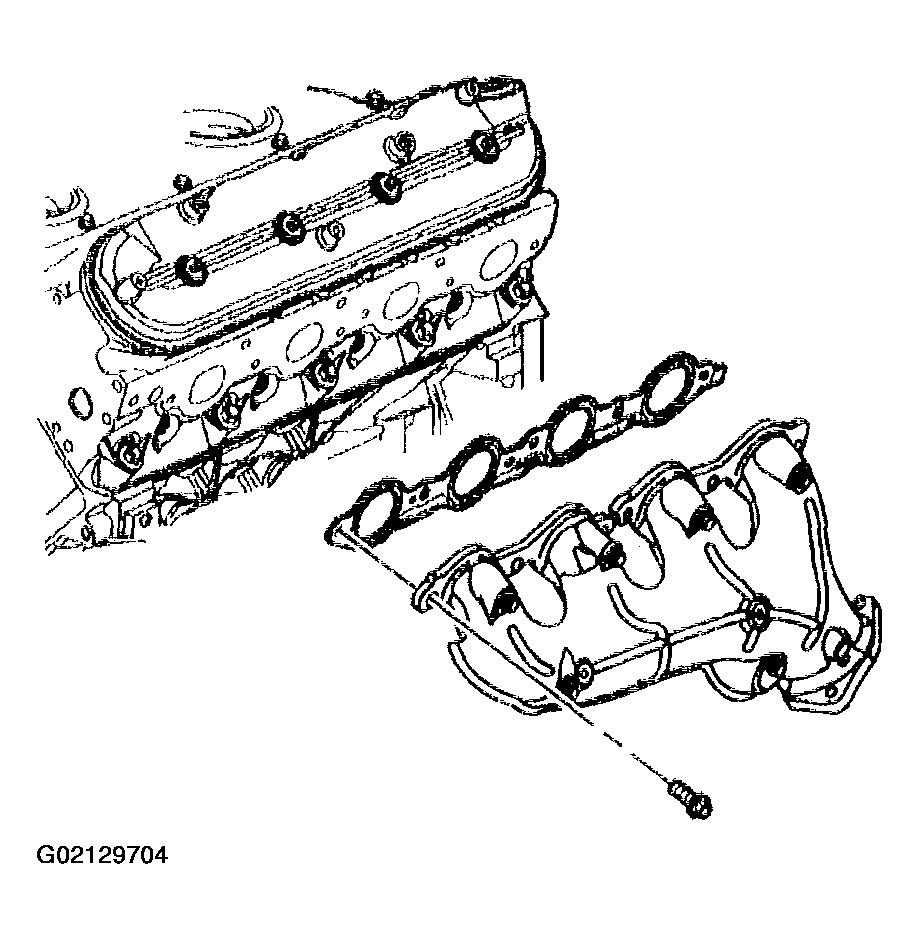

- Install the exhaust manifold and NEW exhaust manifold gasket.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the exhaust manifold bolts.
Tighten
- 3.1. Tighten the exhaust manifold bolts a first pass to 15 N.m (11 lb ft). Tighten the exhaust manifold bolts beginning with the center two bolts. Alternate from side-to-side, and work toward the outside bolts.
- 3.2. Tighten the exhaust manifold bolts a final pass to 25 N.m (18 lb ft). Tighten the exhaust manifold bolts beginning with the center two bolts. Alternate from side-to-side and work toward the outside bolts.
- Using a flat punch, bend over the exposed edge of the exhaust manifold gasket at the rear of the left cylinder head.

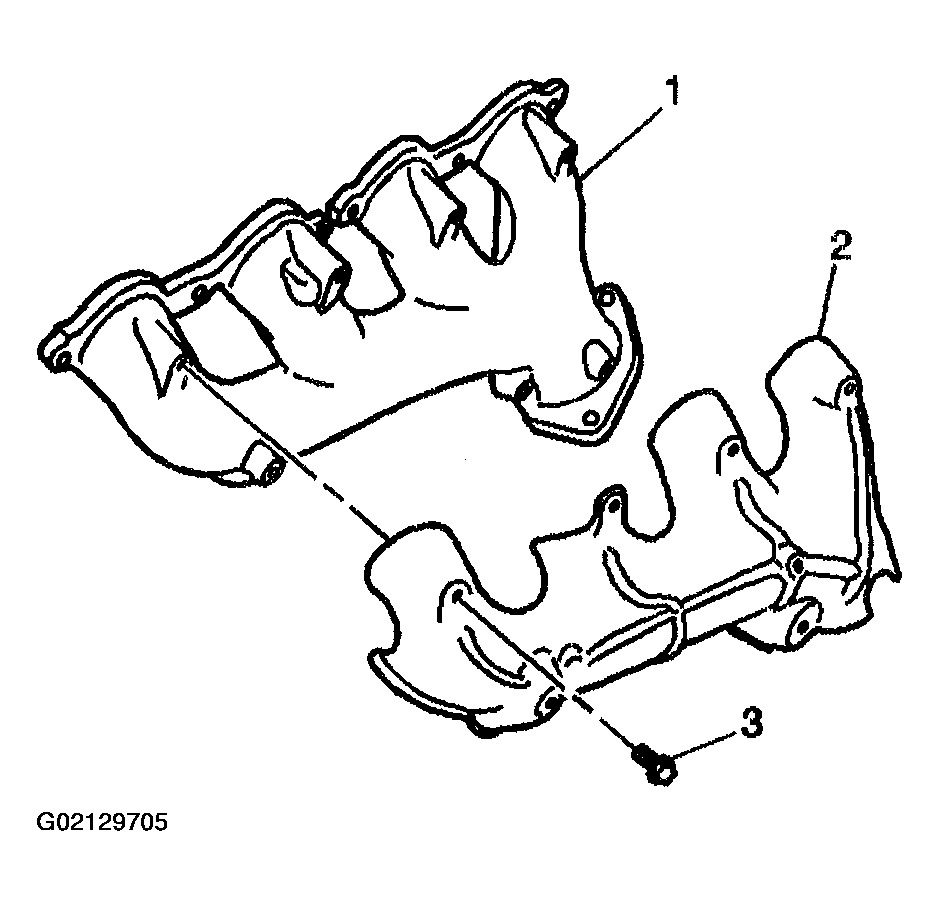

- Install the heat shield (2) and bolts (3).
Tighten
Tighten the heat shield bolts to 9 N.m (80 lb in).
