Engine Rear Cover Removal

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear cover bolts.
  2. Remove the rear cover and gasket.
  3. Discard the rear cover gasket.

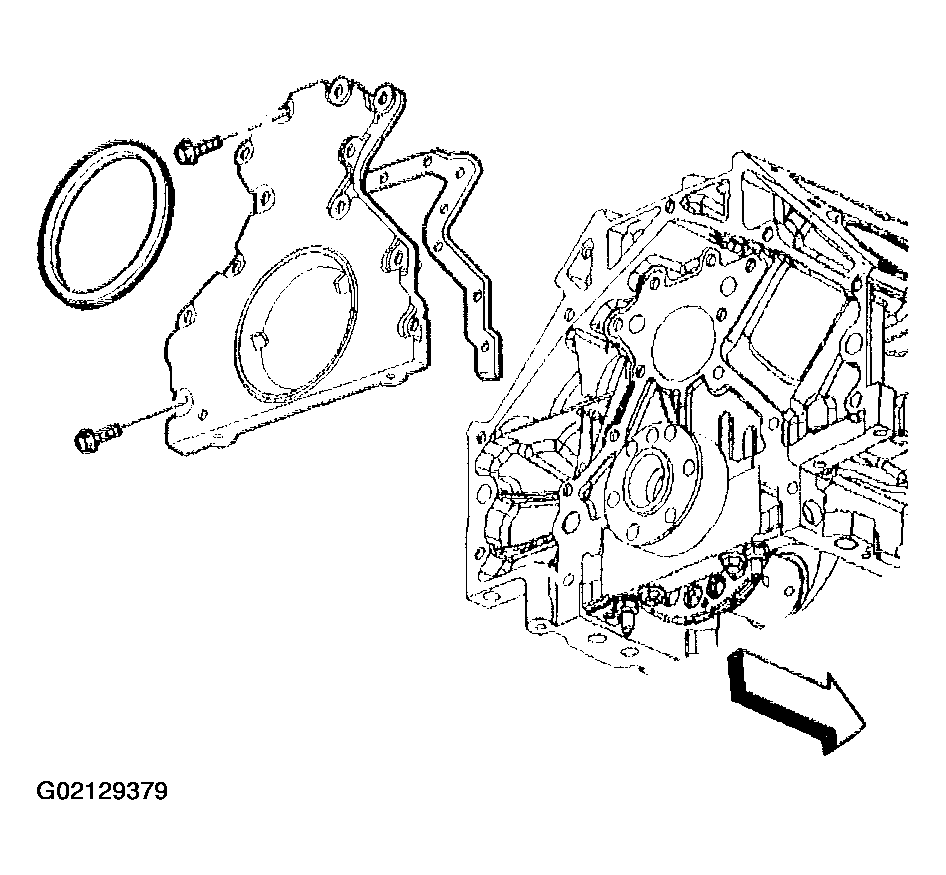

    Fig 1: Removing Rear Cover And Gasket
    G02129379Courtesy of GENERAL MOTORS CORP.
  4. Remove the crankshaft rear oil seal (1) from the cover.

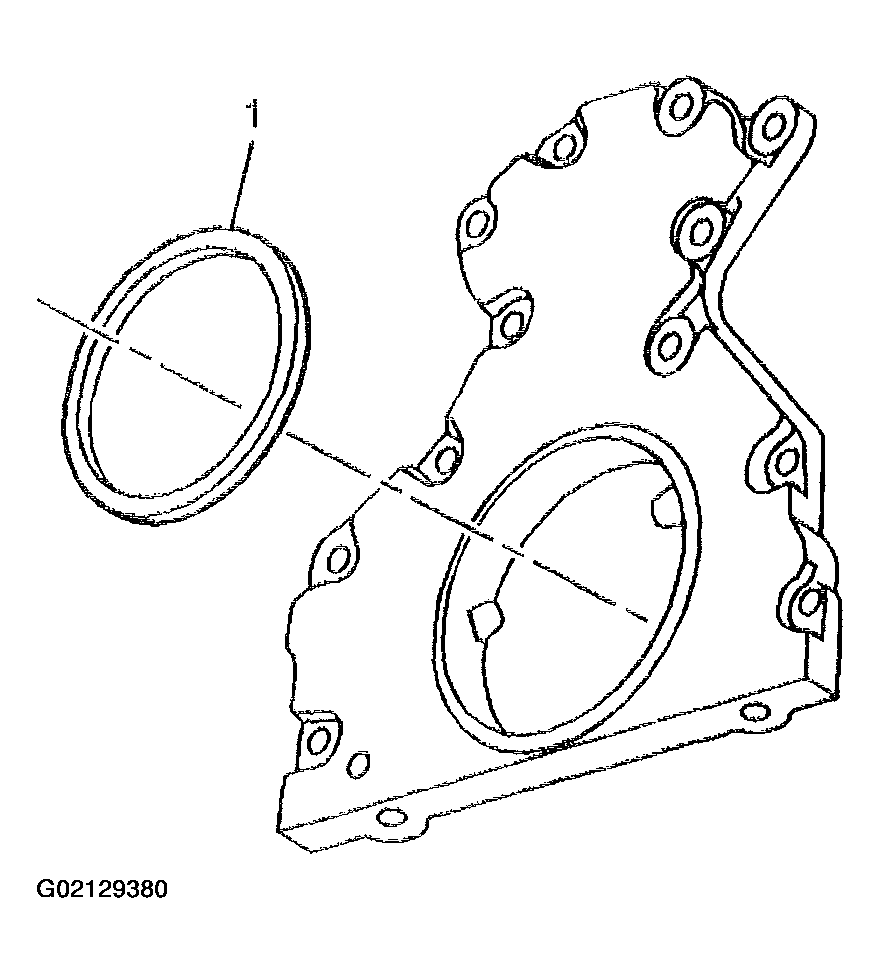

    Fig 2: Removing Crankshaft Rear Oil Seal From Cover
    G02129380Courtesy of GENERAL MOTORS CORP.
