Engine Front Cover Removal

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front cover bolts.
  2. Remove the front cover and gasket.
  3. Discard the front cover gasket.

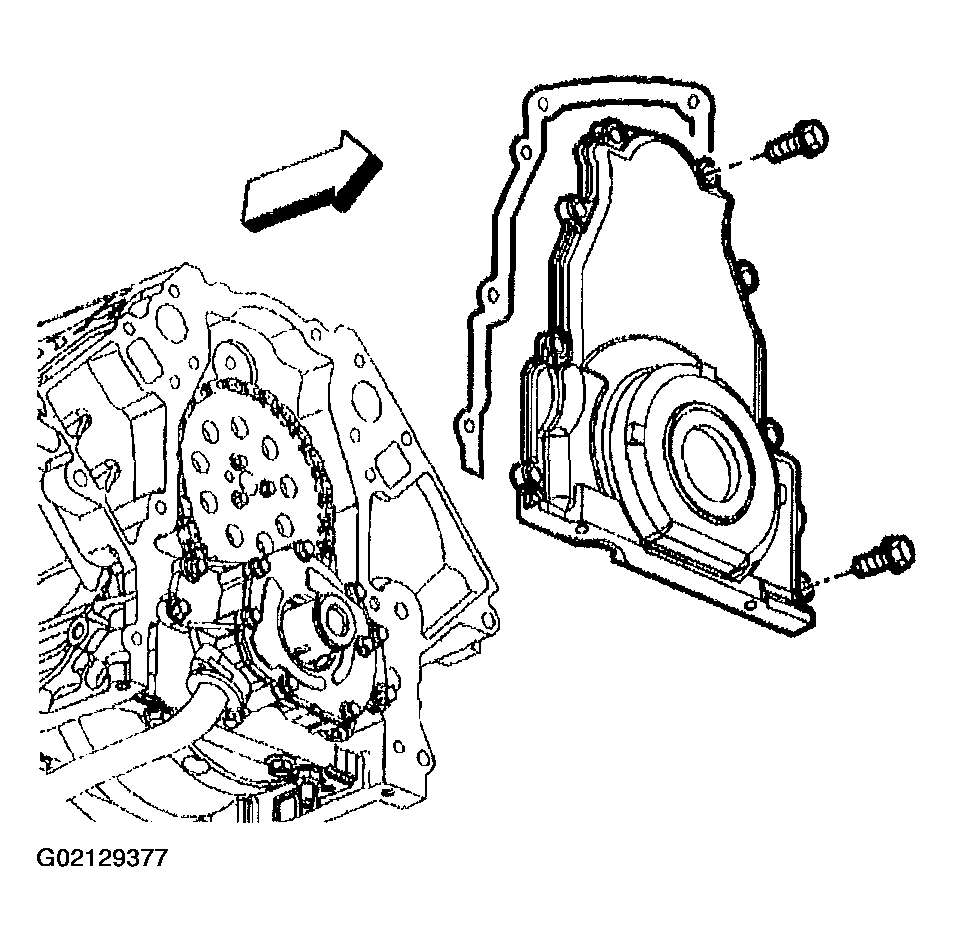

    Fig 1: Removing Front Cover And Gasket
    G02129377Courtesy of GENERAL MOTORS CORP.
  4. Remove the crankshaft front oil seal (1) from the cover.

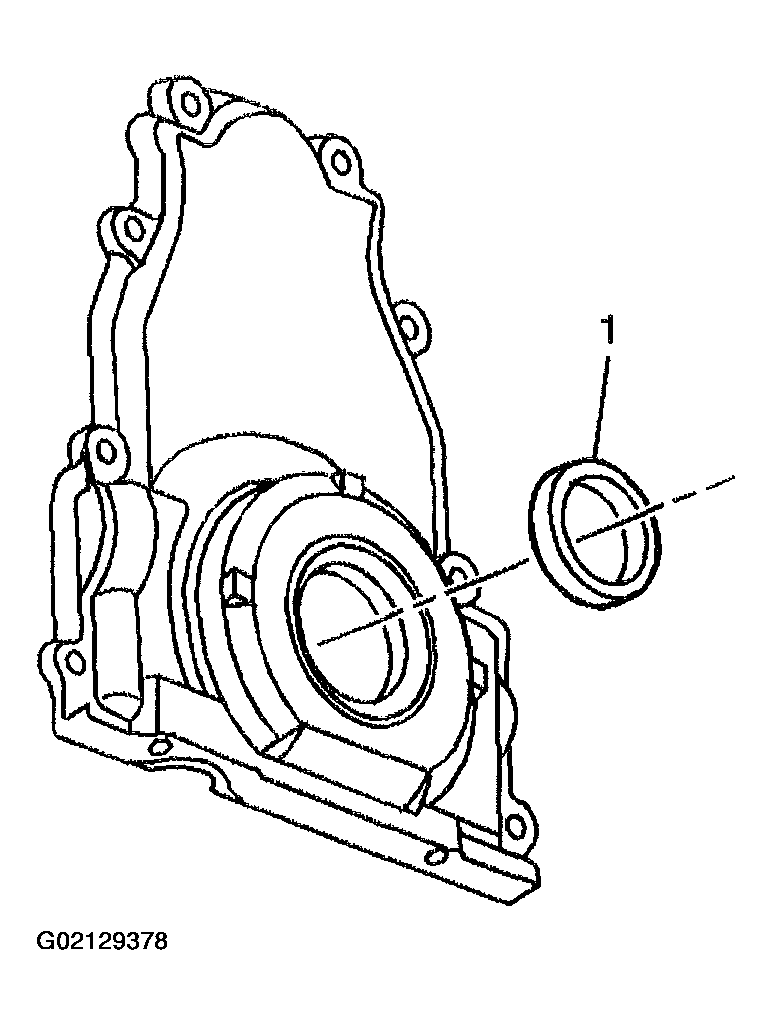

    Fig 2: Removing Crankshaft Front Oil Seal From Cover
    G02129378Courtesy of GENERAL MOTORS CORP.
