Engine Flywheel Removal

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The flywheel does not use a locating pin for alignment and will not initially seat against the crankshaft flange or spacer, if applicable, but will be pulled onto the crankshaft by the engine flywheel bolts. This procedure requires a three stage tightening process.
  1. Remove the engine flywheel bolts.
  2. Remove the automatic transmission engine flywheel.

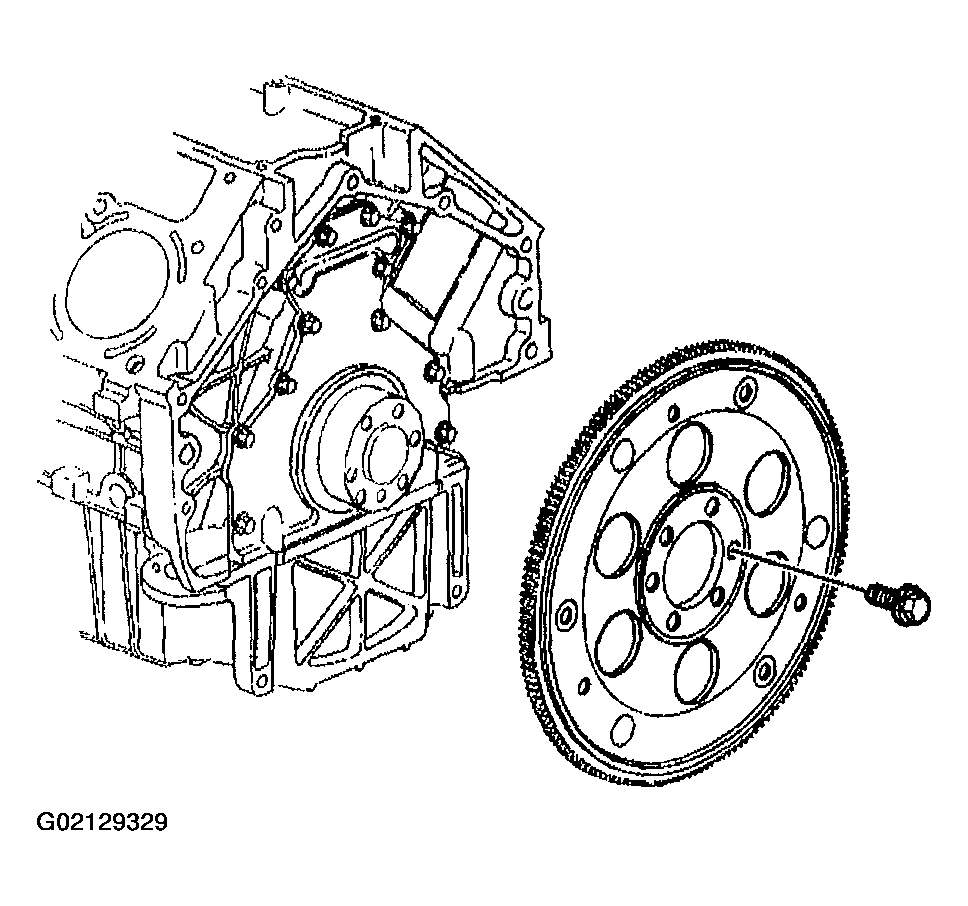

    Fig 1: Removing Automatic Transmission Engine Flywheel
    G02129329Courtesy of GENERAL MOTORS CORP.
