Cylinder Head Removal - Left

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plugs from the cylinder head.
    IMPORTANT: The cylinder head bolts can NOT be used again. Install NEW cylinder head bolts during assembly.
  2. Remove the cylinder head bolts.
    NOTE: After removal, place the cylinder head on two wood blocks to prevent damage.
  3. Remove the cylinder head.

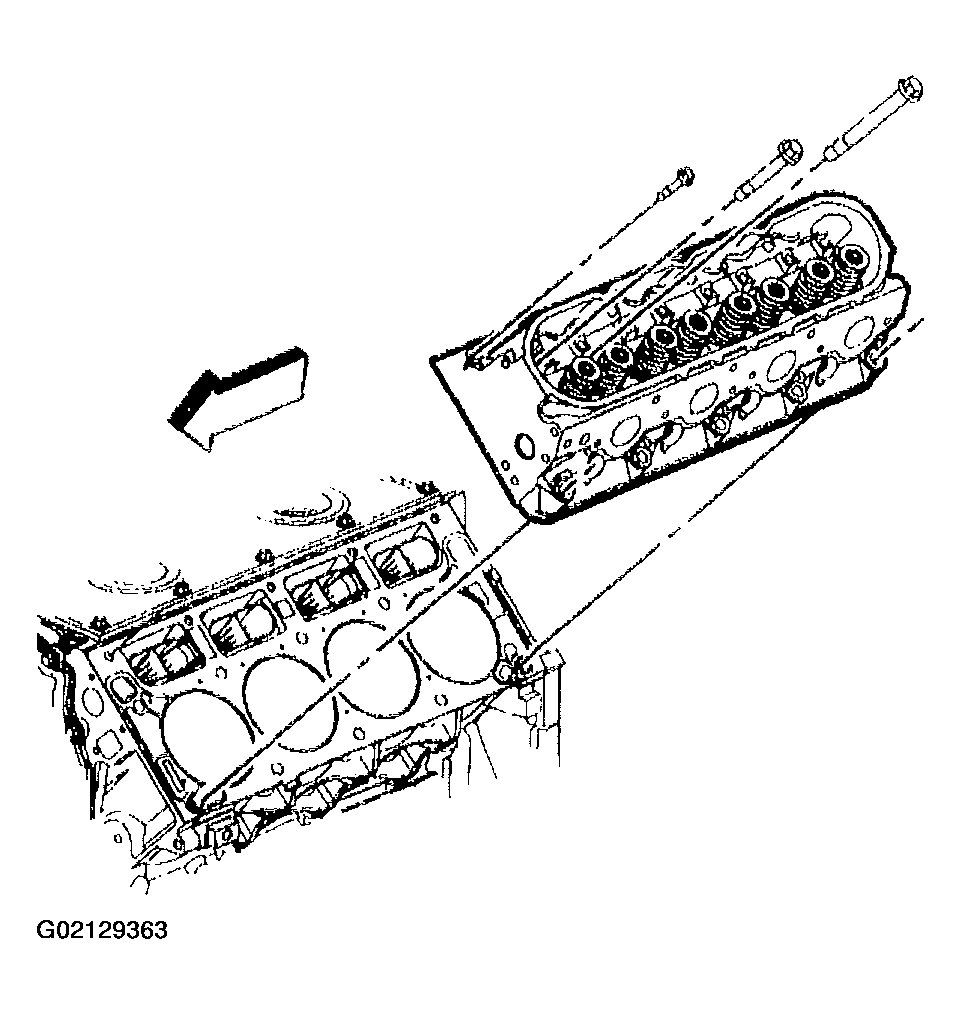

    Fig 1: Removing Cylinder Head
    G02129363Courtesy of GENERAL MOTORS CORP.
  4. Remove the gasket.
  5. Discard the gasket.
  6. Discard the cylinder head bolts.

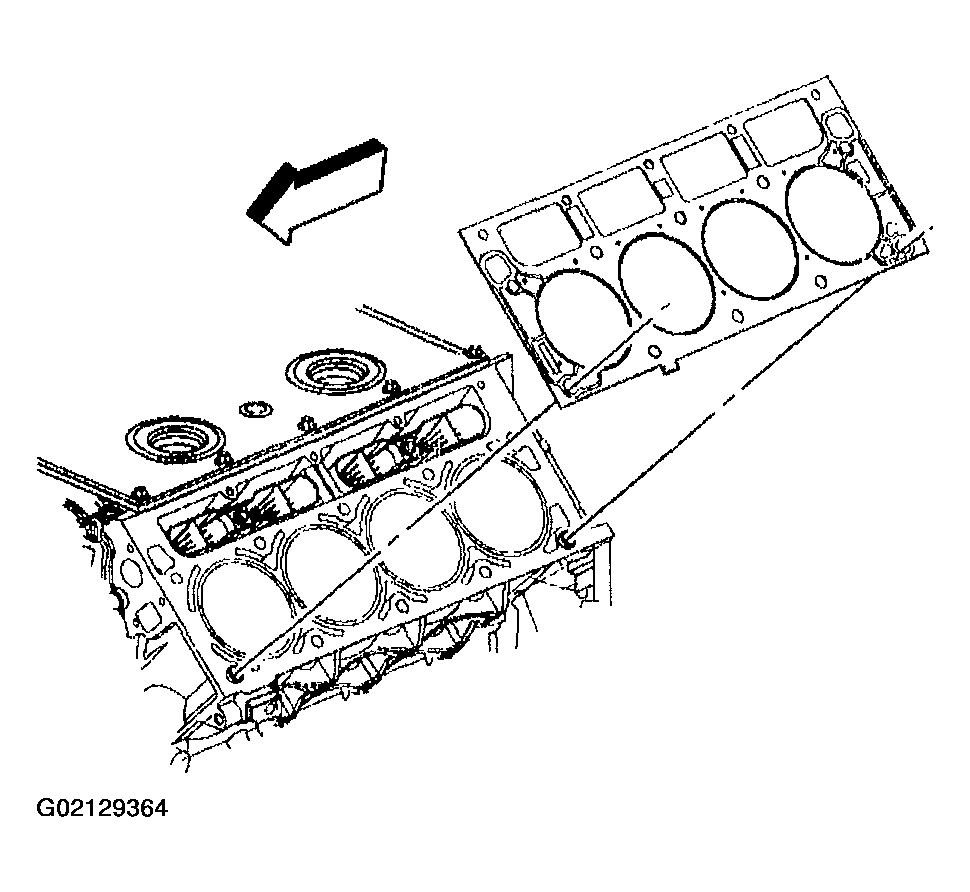

    Fig 2: Removing Gasket
    G02129364Courtesy of GENERAL MOTORS CORP.
