Cleaning Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Use care when handling the crankshaft. Avoid damage to the bearing surfaces or the lobes of the crankshaft position reluctor ring. Damage to the teeth of the crankshaft position reluctor ring may effect On-Board Diagnostics (OBD) II system performance.
  1. Clean the crankshaft with solvent.
  2. Thoroughly clean all oil passages and inspect for restrictions or burrs.
    CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
  3. Dry the crankshaft with compressed air.

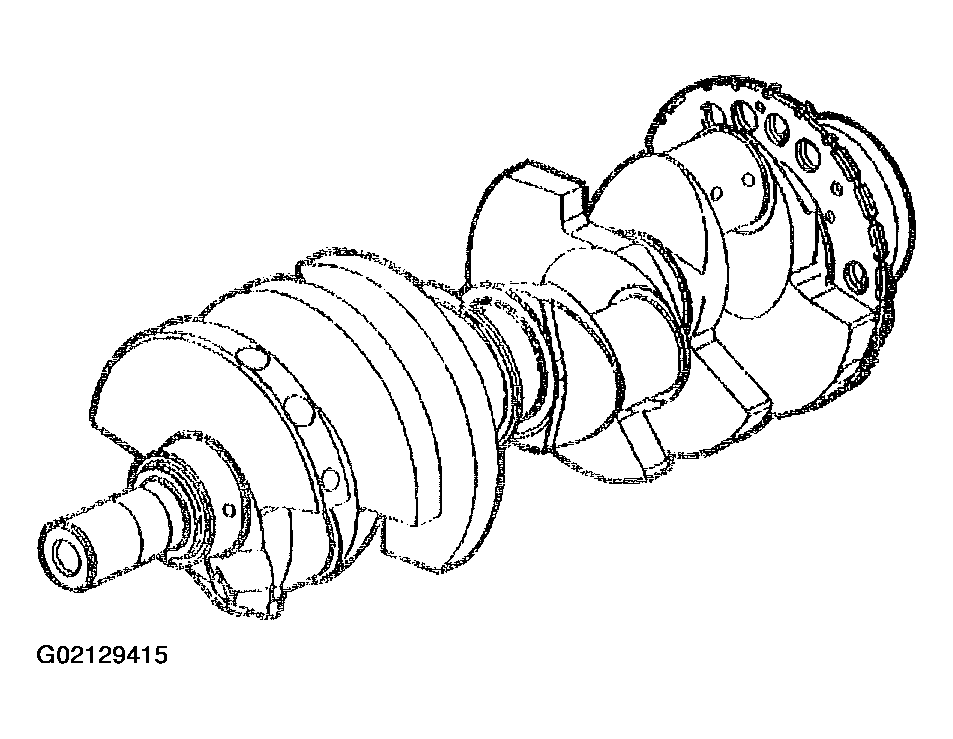

    Fig 1: View Of Crankshaft
    G02129415Courtesy of GENERAL MOTORS CORP.
