Crankshaft Balancer Removal

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 41816 Crankshaft Balancer Remover
J 41816-2 Crankshaft End Protector
J 42386-A Flywheel Holding Tool

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

IMPORTANT:

Do not use the crankshaft balancer bolt again.
Install a NEW crankshaft balancer bolt during final assembly.
Make sure that the teeth of the flywheel holding tool mesh with the teeth of the engine flywheel.

Install the J 42386-A and bolts.
Use one M10 - 1.5 x 120 mm and one M10 - 1.5 x 45 mm bolt for proper tool operation.

Tighten

Tighten the J 42386-A bolts to 50 N.m (37 lb ft).

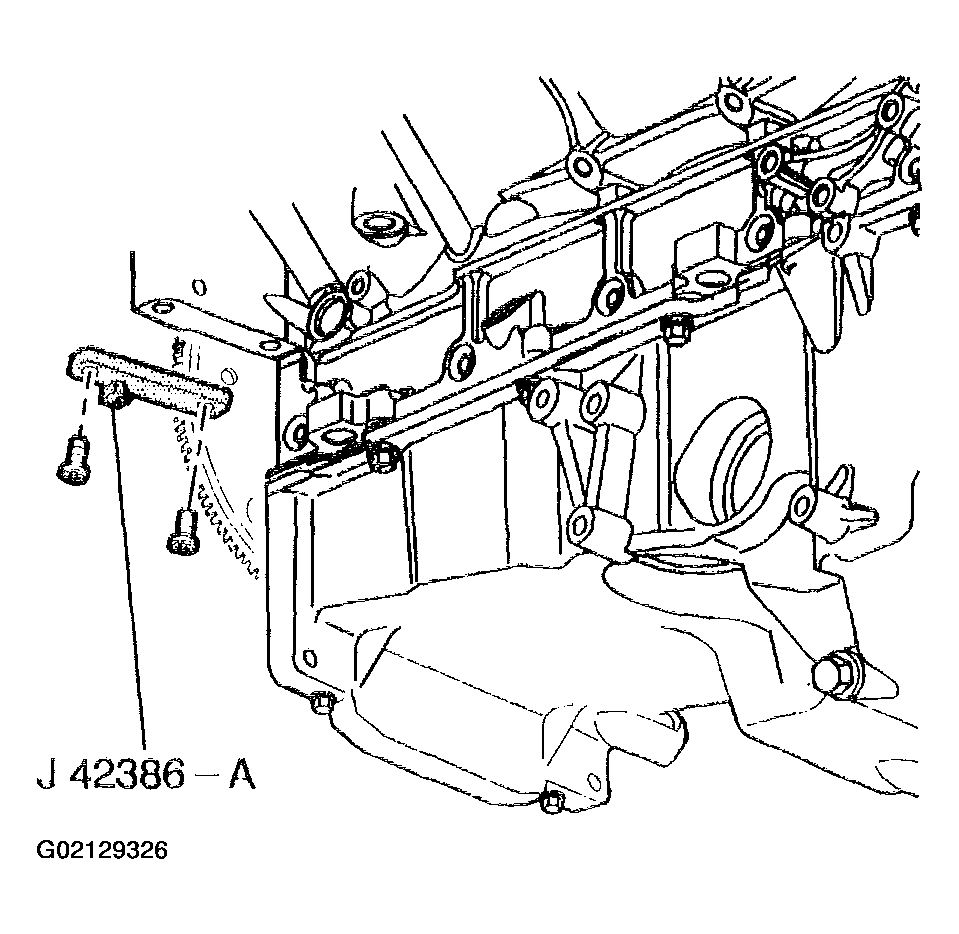

Fig 1: Installing J 42386-A Tool And Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the crankshaft balancer bolt.
Do not discard the crankshaft balancer bolt. The balancer bolt will be used during the balancer installation procedure.

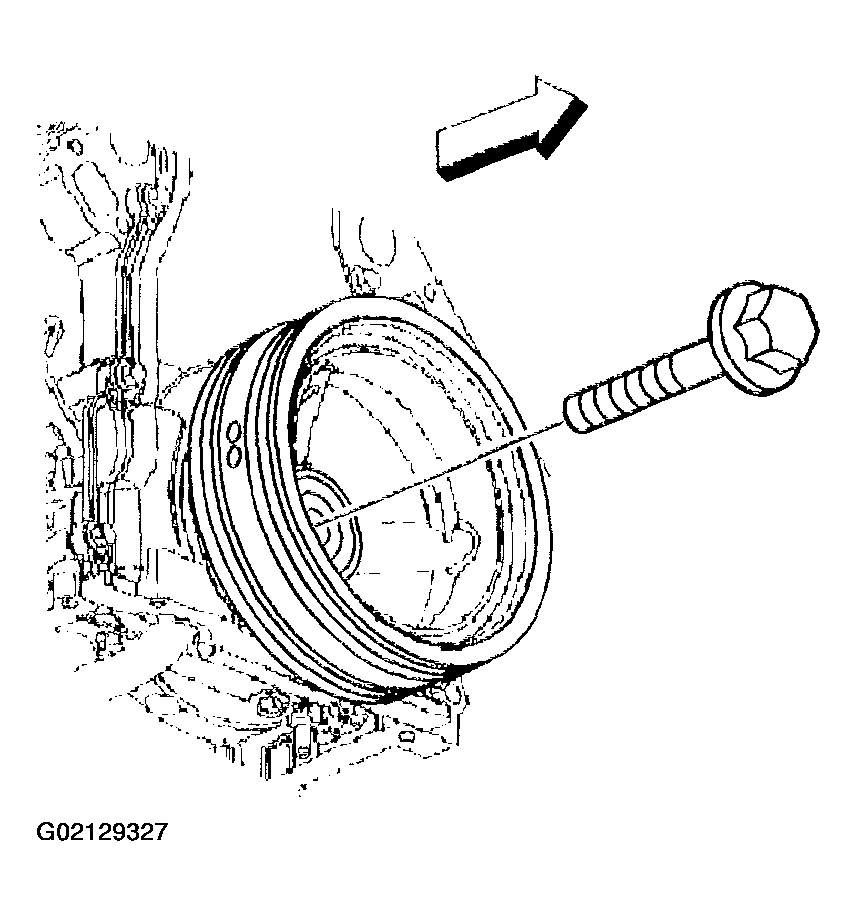

Fig 2: Removing Crankshaft Balancer Bolt
Courtesy of GENERAL MOTORS CORP.
Use the J 41816 and the J 41816-2 in order to remove the crankshaft balancer.
Remove the J 42386-A and bolts.

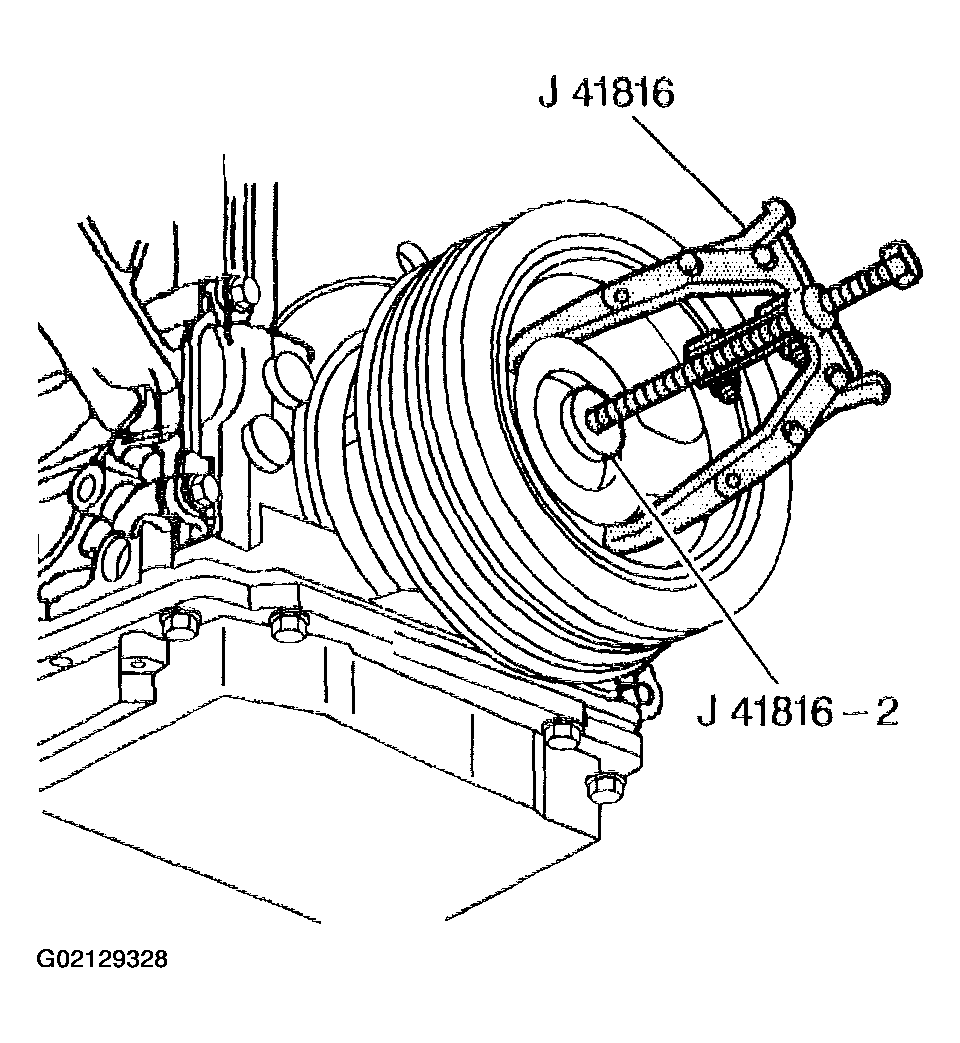

Fig 3: Removing Crankshaft Balancer
Courtesy of GENERAL MOTORS CORP.
