Tool Assembly and Operation
WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
- Select the proper expanding driver and washer from the expanding driver and washer information.IMPORTANT: To install or remove the expanding driver, always push on or pull from the ends.
Pressure on the outside diameter may cause a bind against the rubber expanding sleeve.
- Place the expanding driver onto the expander assembly.
- Check to insure that the separation lines between the segments of the expanding driver align with the separation lines of the expander assembly.
- Place the guide cone over the driving bar, with the small end of the cone facing the driver assembly.
- Place the driving washer over the threaded portion of the expander assembly.
- Screw the expander assembly, with driving washer, onto the driving bar.
It may be necessary to install the driver bar extension for removal of the inner bearings.

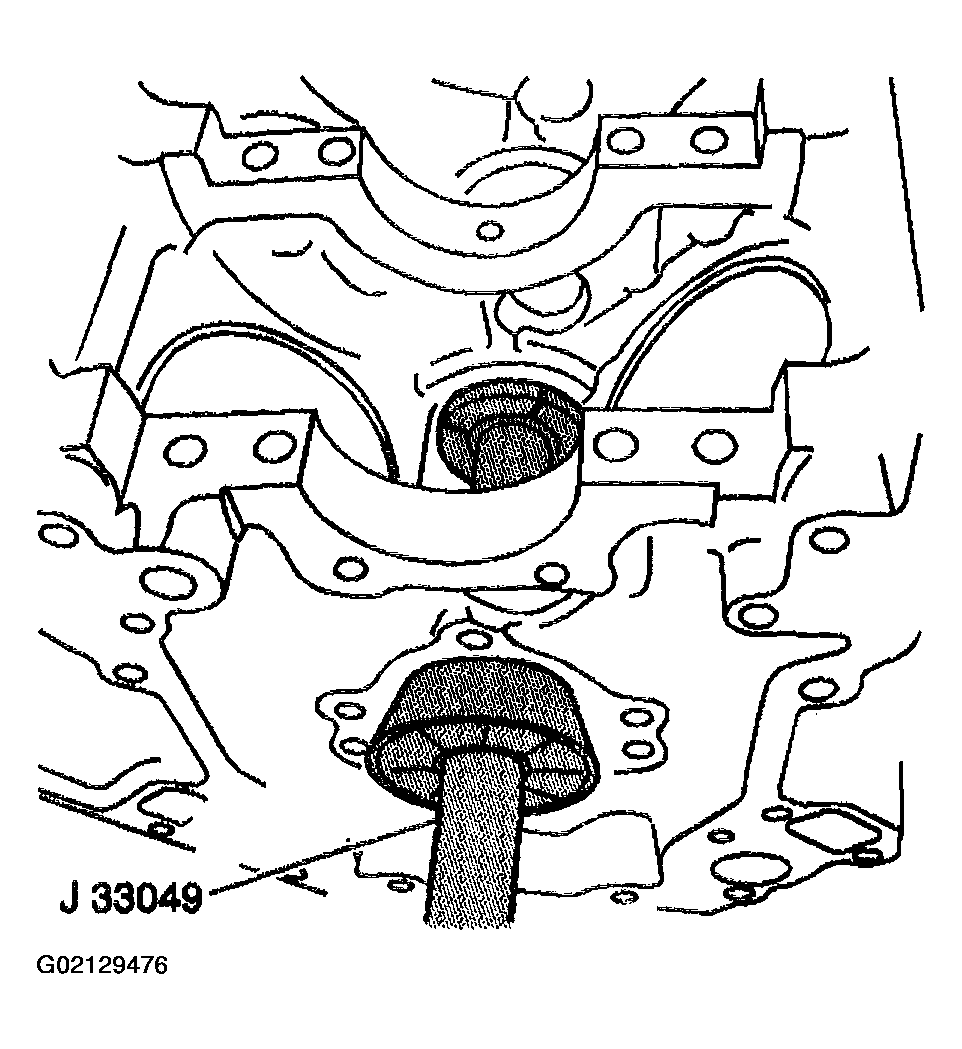

- Insert the tool into a inner camshaft bearing and tighten until snug.
Operate the tool from the front or rear of the engine block.
On some engine blocks the nut on the expander assembly is inaccessible except from either end. In this case you must use a socket and extension to enlarge and reduce the expander assembly.
- Slide the nylon cone into the front or rear camshaft bearing. This will properly align the tool.
- Drive the bearing out of or into the engine block.
- Repeat the procedure for the additional inner bearings.

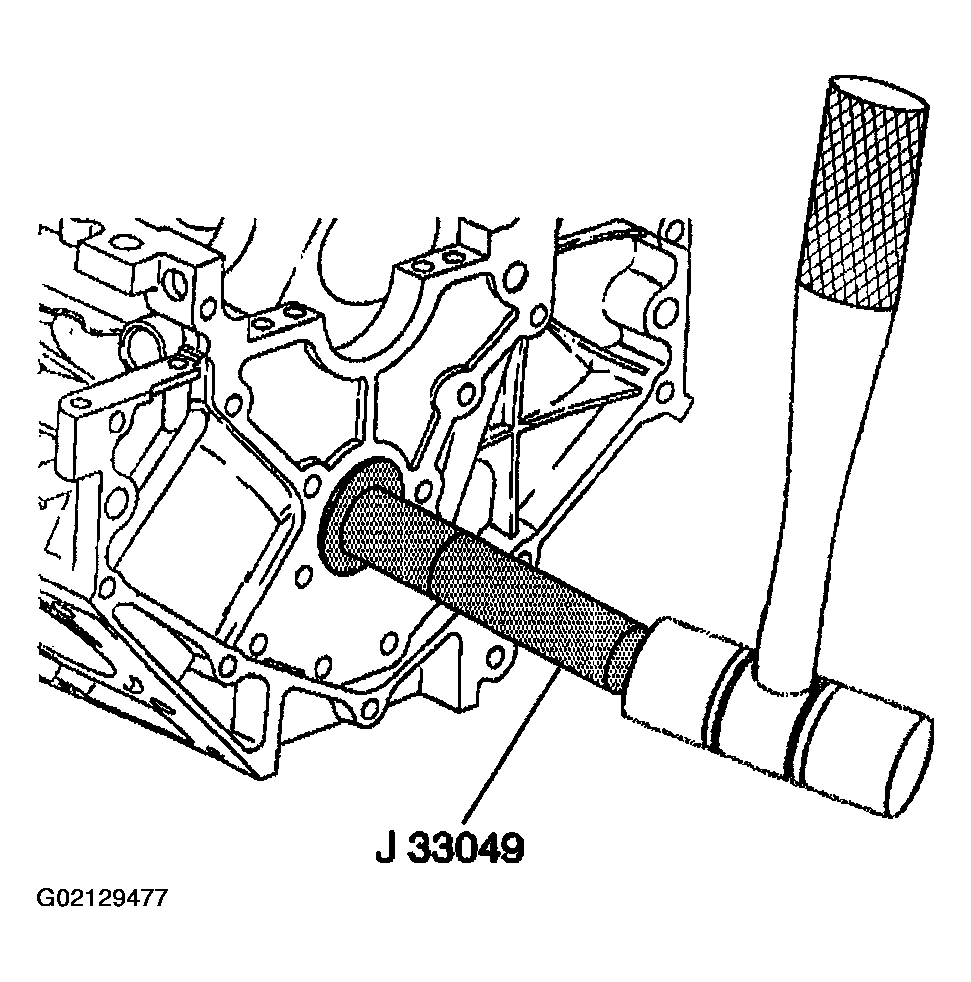

- For the two end bearings, front and rear, remove the nylon cone and driver bar extension.
- Drive the bearings out of or into the engine block.
