Lower Front of Engine

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

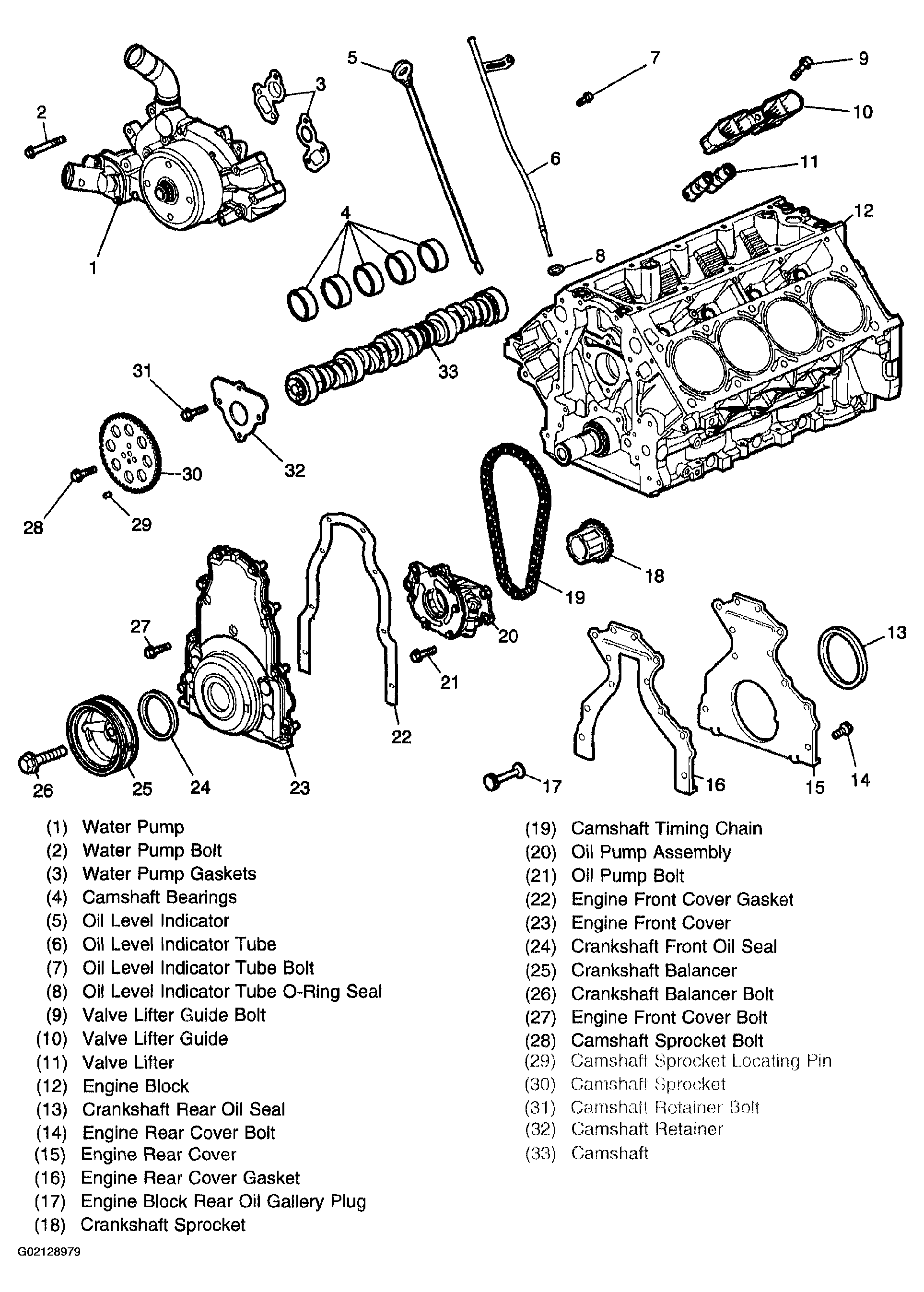

Fig 1: Exploded View Of Lower Front Of Engine
G02128979Courtesy of GENERAL MOTORS CORP.
