Intake Manifold/Upper Engine

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

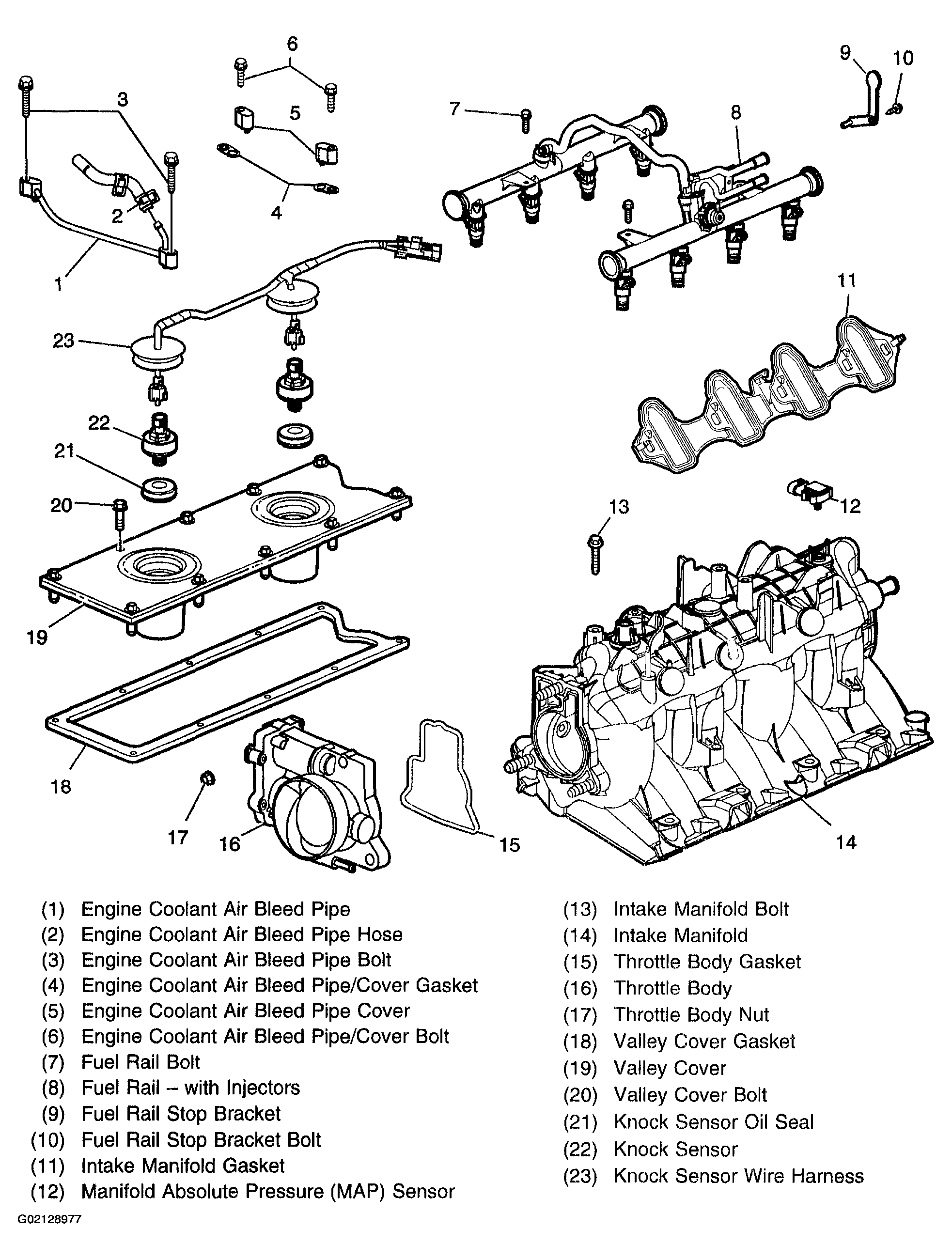

Fig 1: Exploded View Of Intake Manifold/Upper Engine
G02128977Courtesy of GENERAL MOTORS CORP.
