ABS Schematics

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

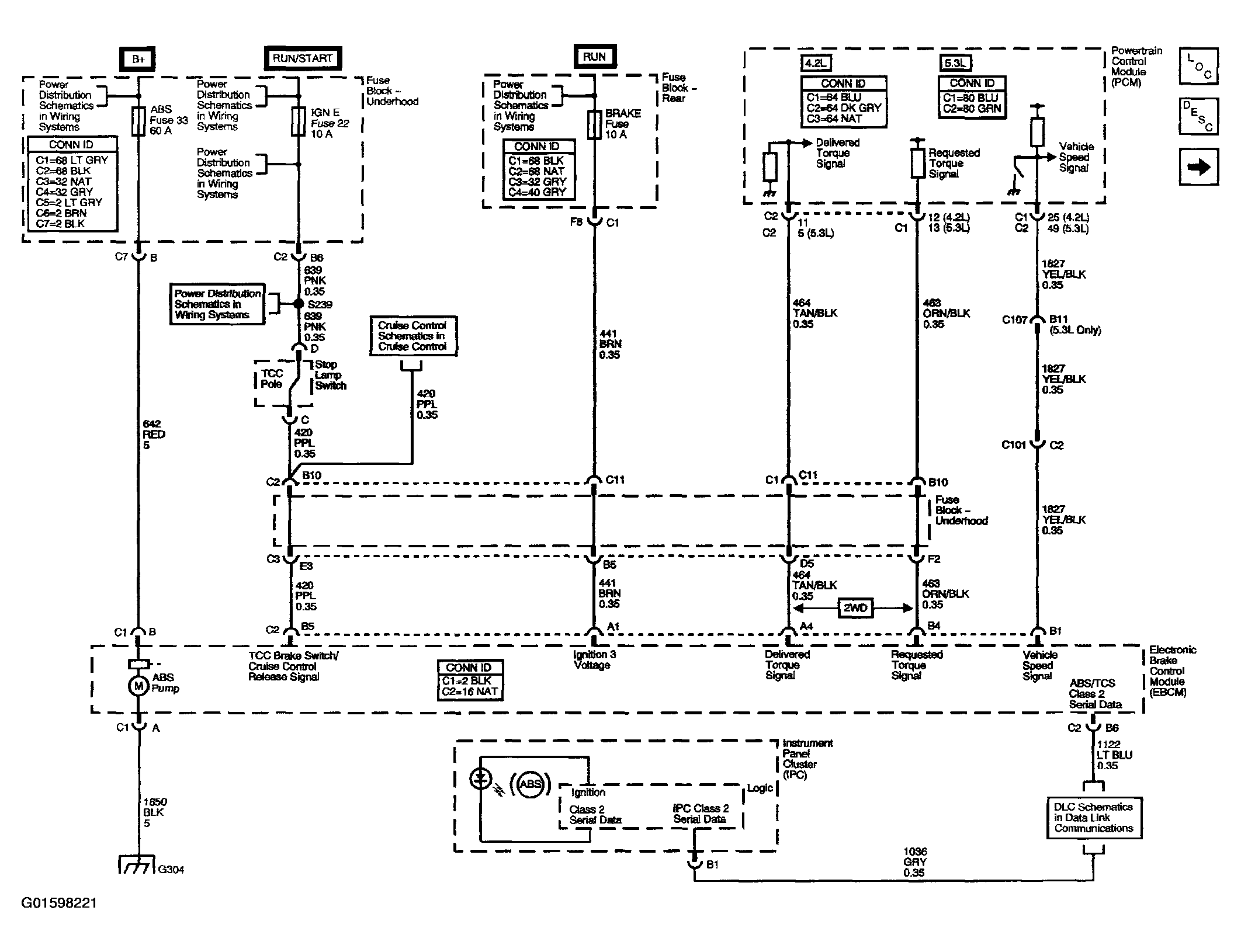

Fig 1: EBCM Power, Ground & Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

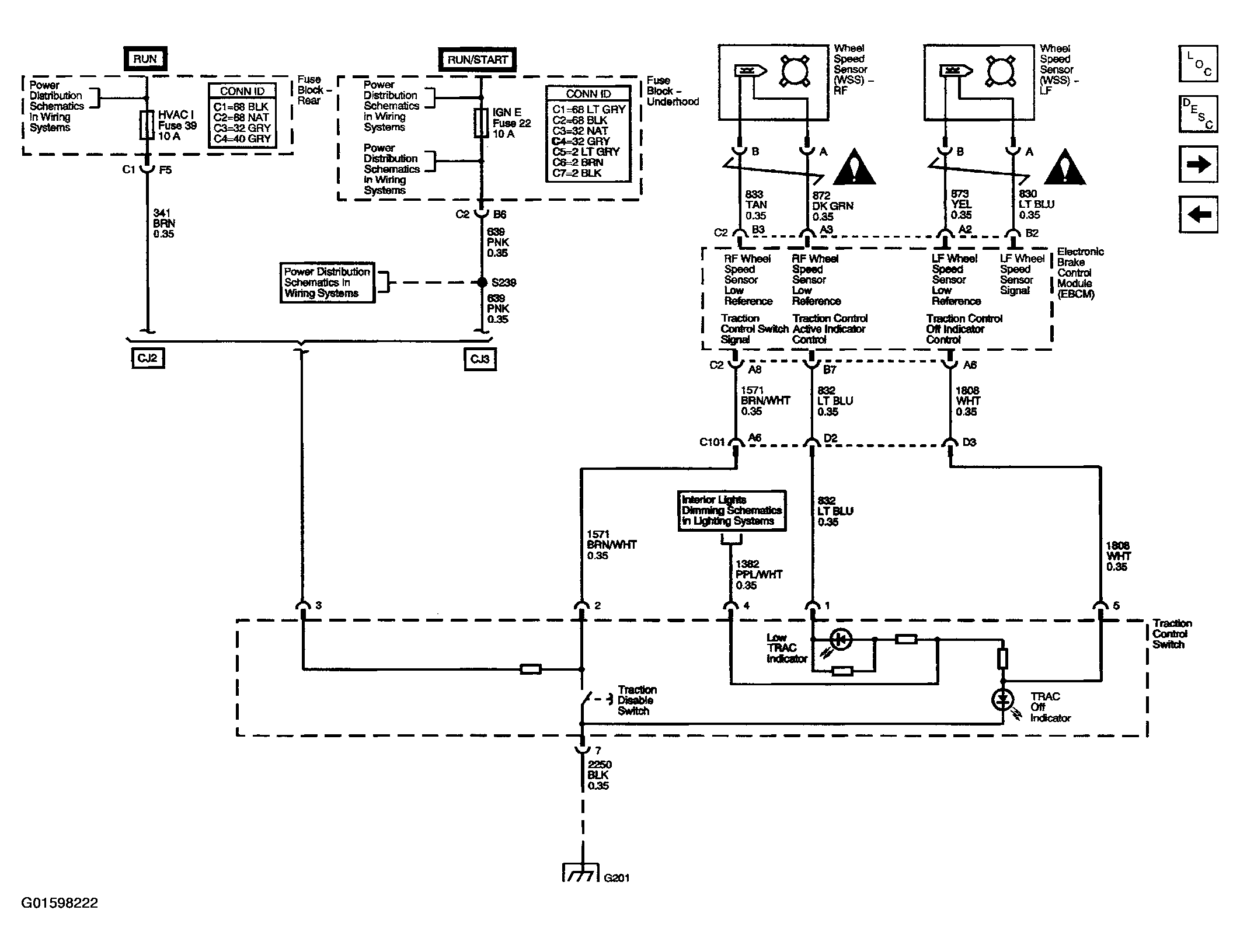

Fig 2: Wheel Speed Sensors & Traction Control Switch Schematic (Chevy/GMC)

Courtesy of GENERAL MOTORS CORP.

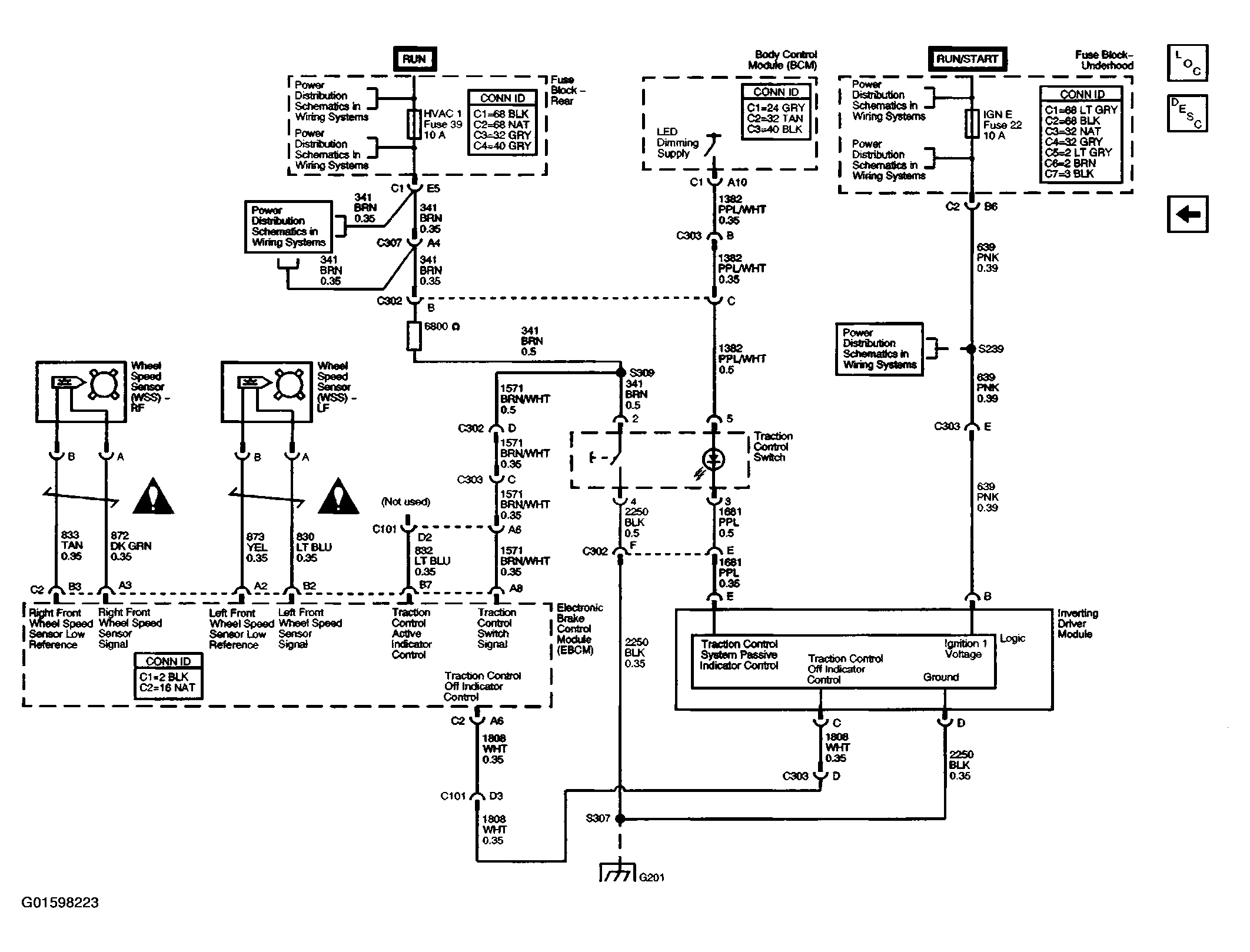

Fig 3: Traction Control Switch Schematic (Oldsmobile)

Courtesy of GENERAL MOTORS CORP.
