Diagnostic Aids

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Replace the EBCM if DTC C0273 or DTC C0284 continues to set intermittently.

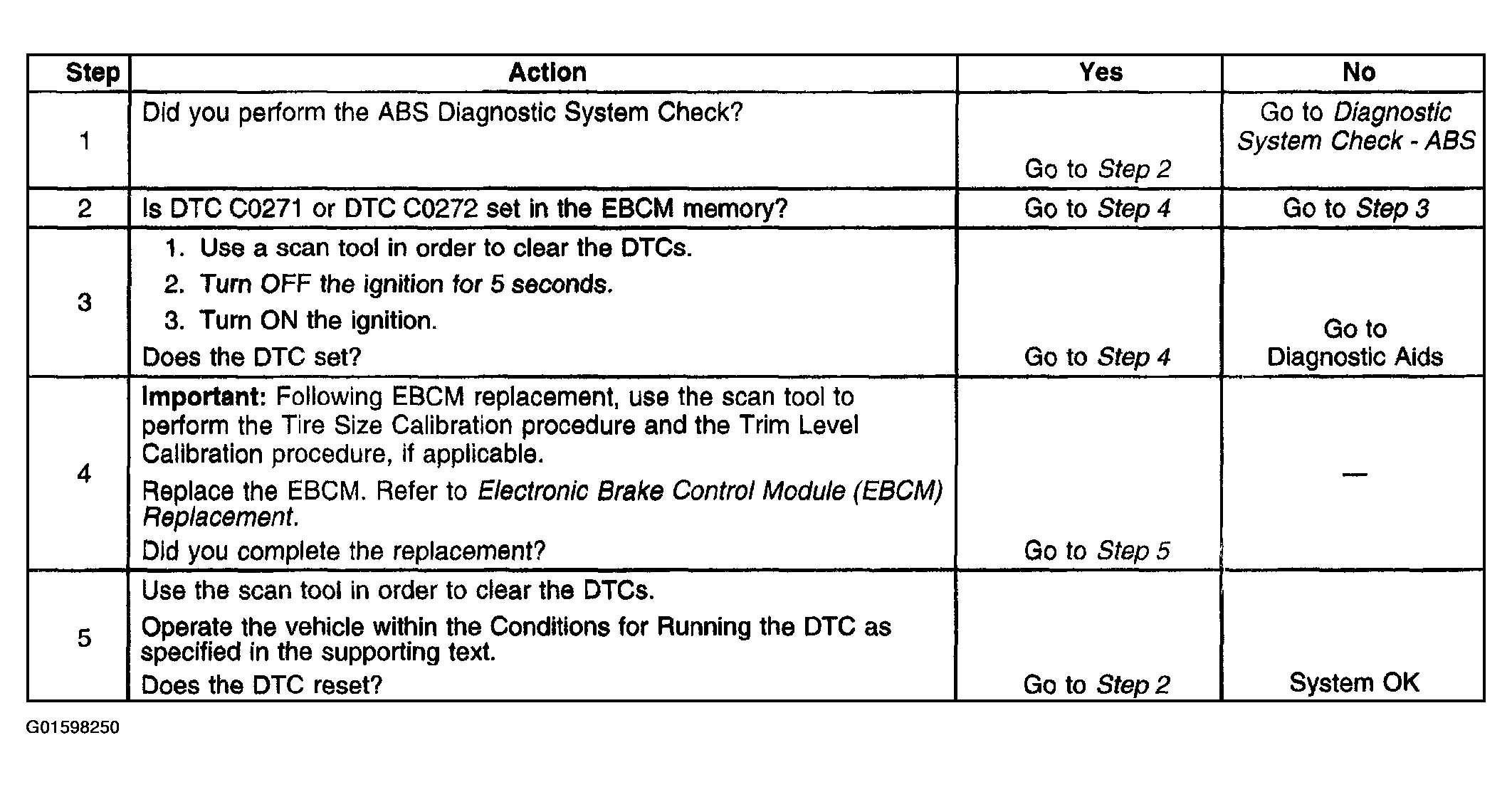

Fig 1: DTC C0271-C0273, C0284 Diagnostic Test
G01598250Courtesy of GENERAL MOTORS CORP.
