Test Description

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table:

  1. 2. Performing solenoid tests determines if there is a mechanical malfunction inside the BPMV. Perform dump valve solenoid tests for DTC C0269 or isolation valve solenoid tests for DTC C0274.

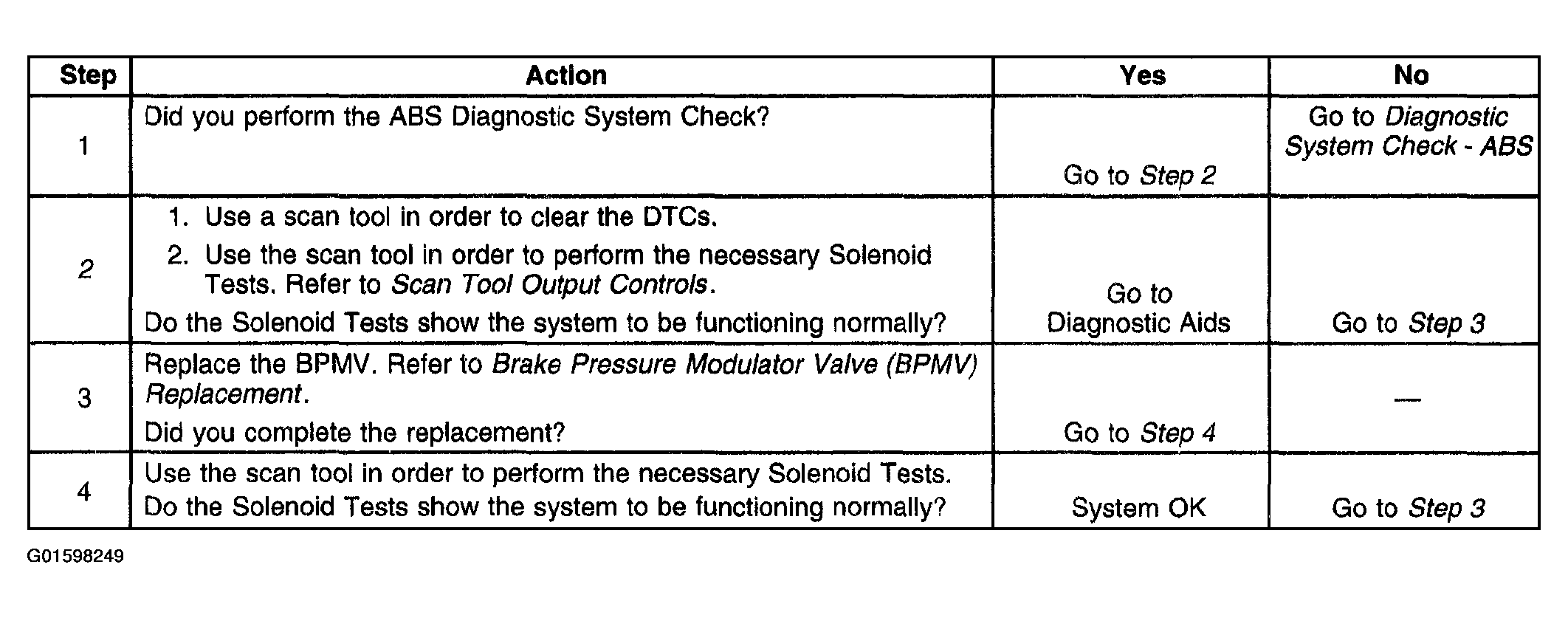

Fig 1: DTC C0269 or C0274 Diagnostic Test
G01598249Courtesy of GENERAL MOTORS CORP.
