Test Description

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 4. This step tests if the battery positive voltage circuit can supply adequate power to the system relay.
  2. 7. A shorted ABS pump motor or shorted motor circuitry may damage the contacts within the system relay. Follow this step to prevent damage to a replacement EBCM.

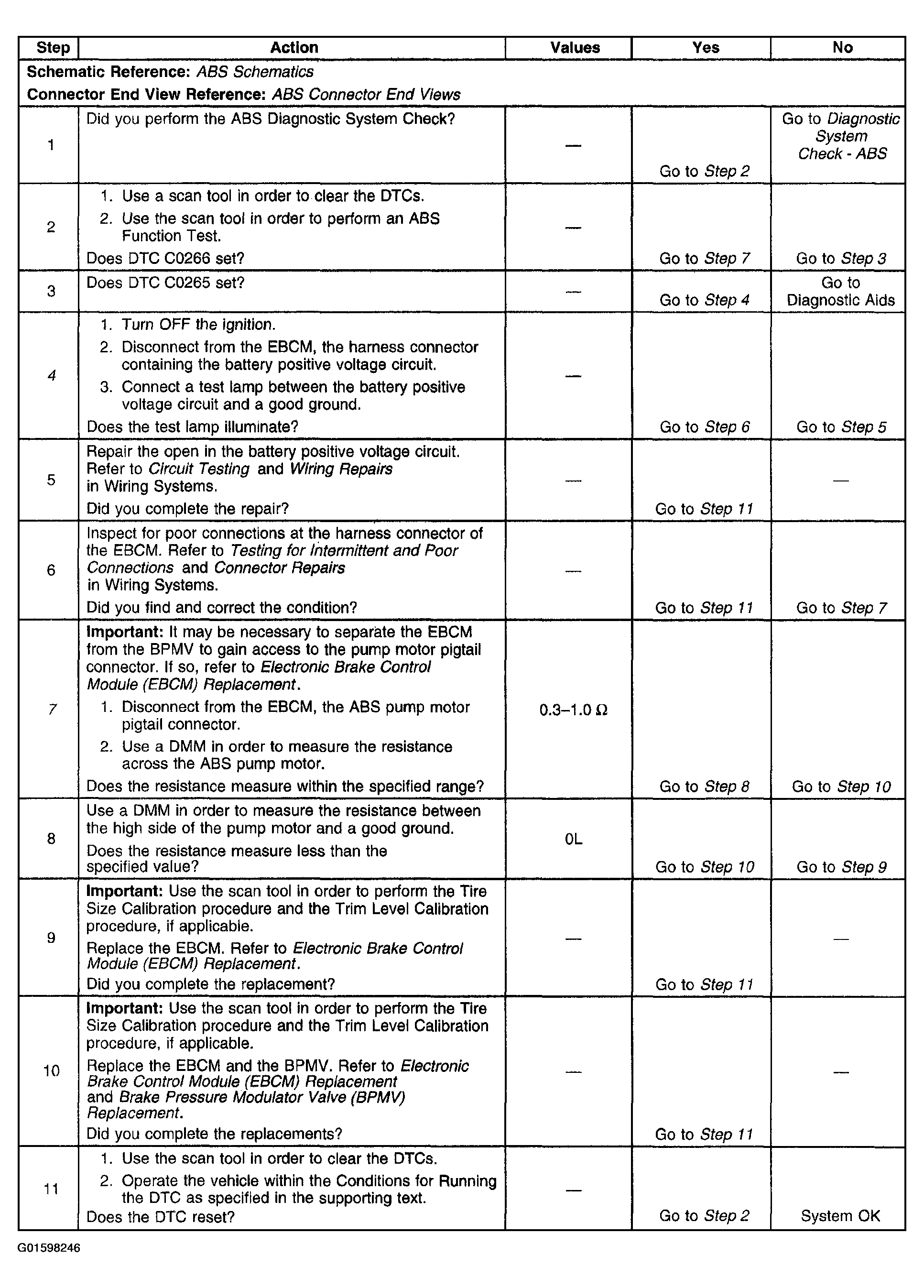

Fig 1: DTC C0265 or C0266 Diagnostic Test
G01598246Courtesy of GENERAL MOTORS CORP.
