Diagnostic Aids

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

An intermittent open/shorted solenoid DTC can be set by several different internal EBCM problems. Replace the EBCM if an open/shorted solenoid DTC continues to set intermittently.

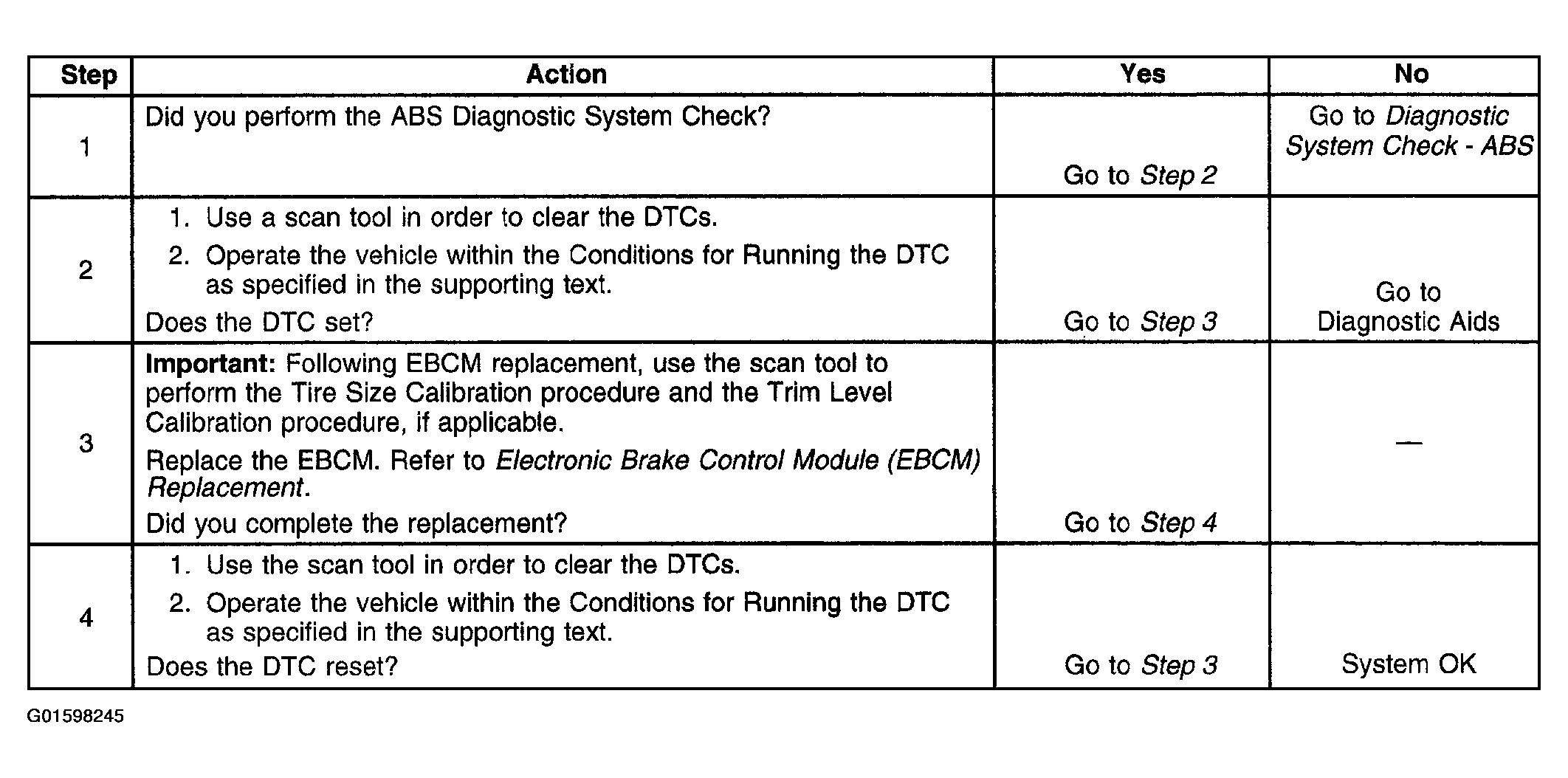

Fig 1: DTC C0241-C0254 Diagnostic Test
G01598245Courtesy of GENERAL MOTORS CORP.
