Differential Adjustment Shim Specifications

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

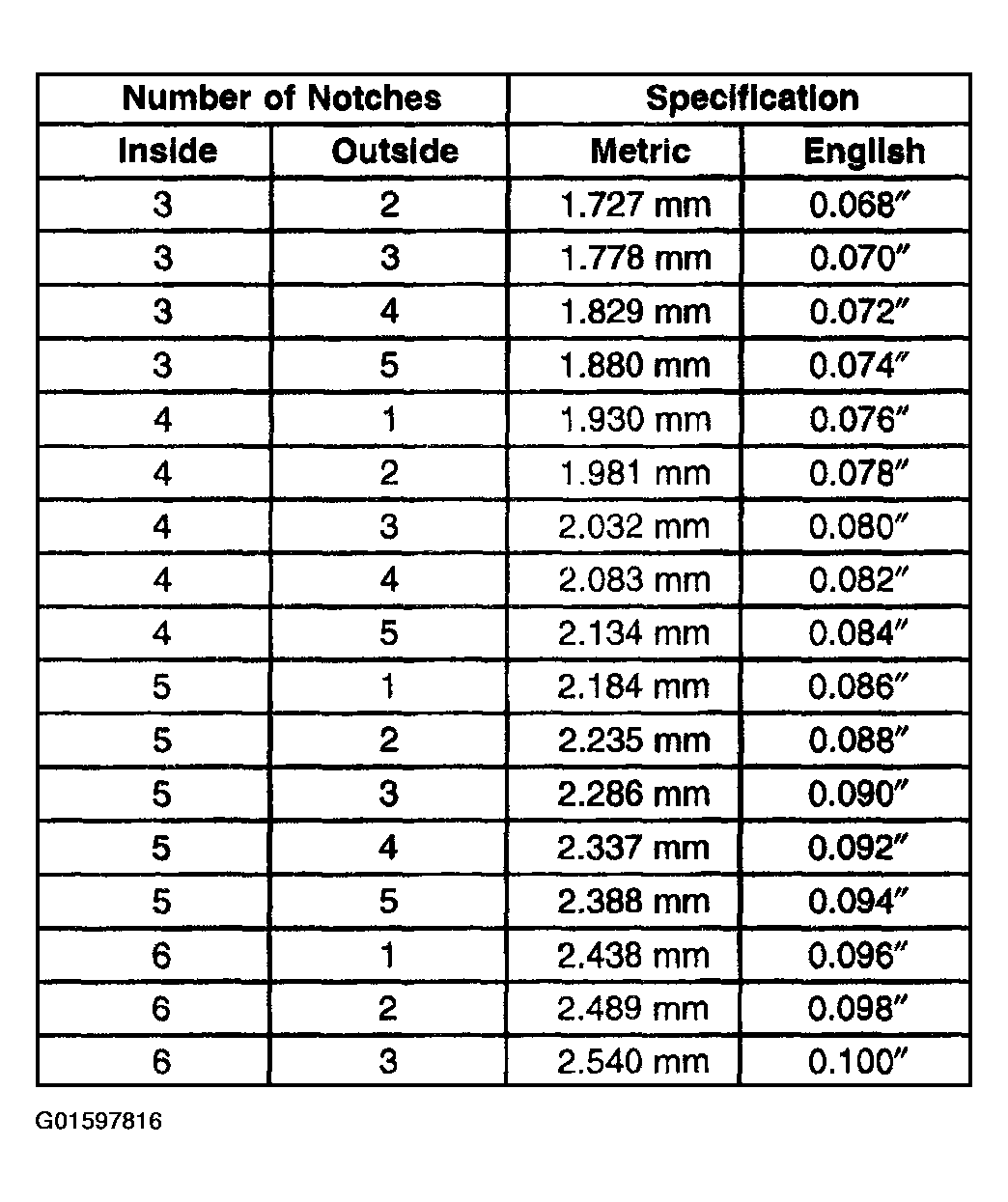

Fig 1: Differential Adjustment Shim Specifications Chart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

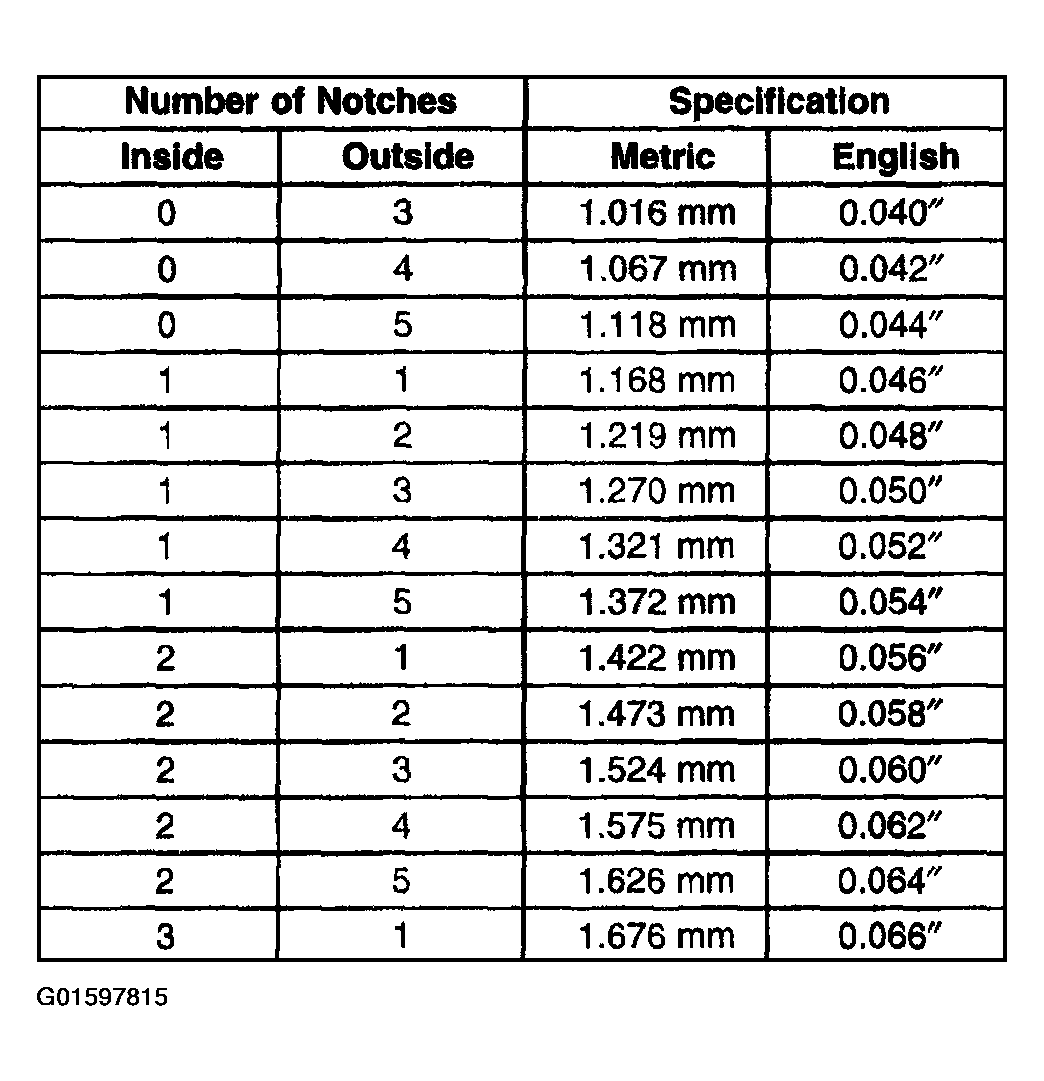

Fig 2: Differential Adjustment Shim Specifications (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
