Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle   in General Information.
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  3. Remove the rear axle housing cover and the gasket. Refer to REAR AXLE HOUSING COVER AND GASKET REPLACEMENT   .
  4. Remove the axle shaft. Refer to REAR AXLE SHAFT REPLACEMENT   .
  5. Remove the axle shaft seal and/or the bearing from the axle housing using the J 44685  (1) and the J 2619-01  (2).

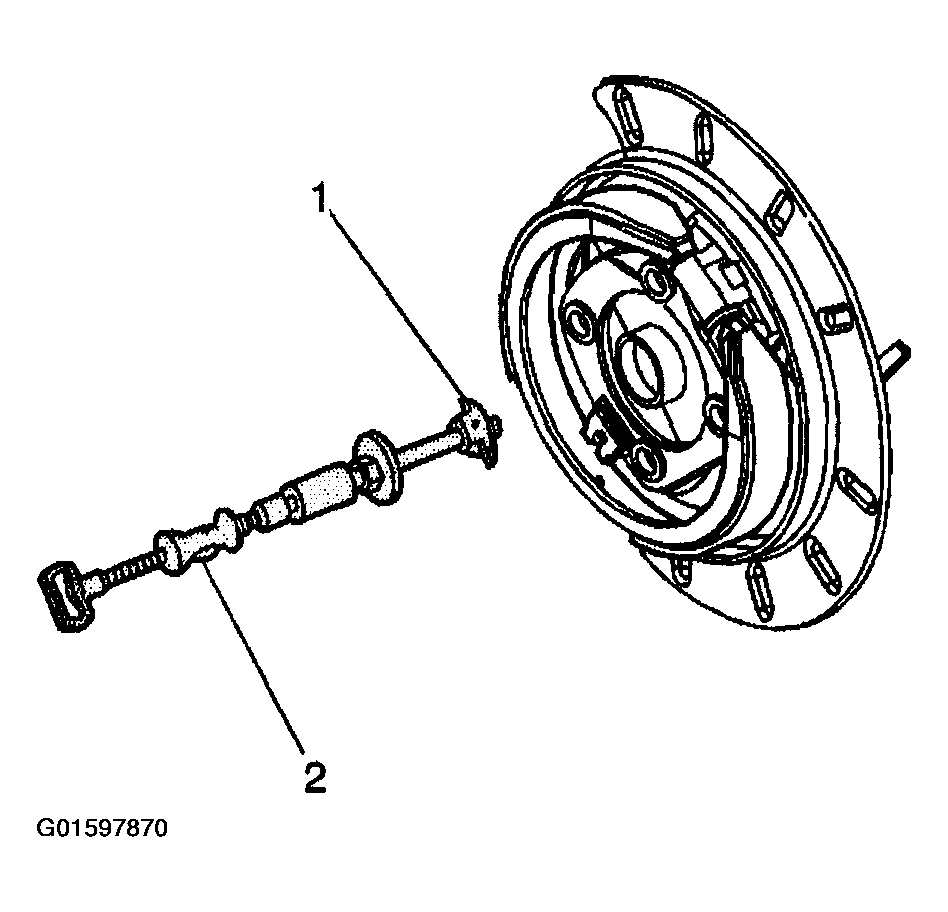

    Fig 1: Removing Axle Shaft Seal Using J 44685(1) And J 2619-01(2)
    G01597870Courtesy of GENERAL MOTORS CORP.
