Installation Procedure
WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the rear axle cover gasket for nicks, cuts or damage that may cause the gasket to not seal properly. If any of these conditions exist, replace the gasket.
- If the gasket is to be reused, clean the rear axle housing cover gasket a suitable cleaner.
- Clean the rear axle housing cover gasket surface and the rear axle housing gasket surface with a suitable cleaner.

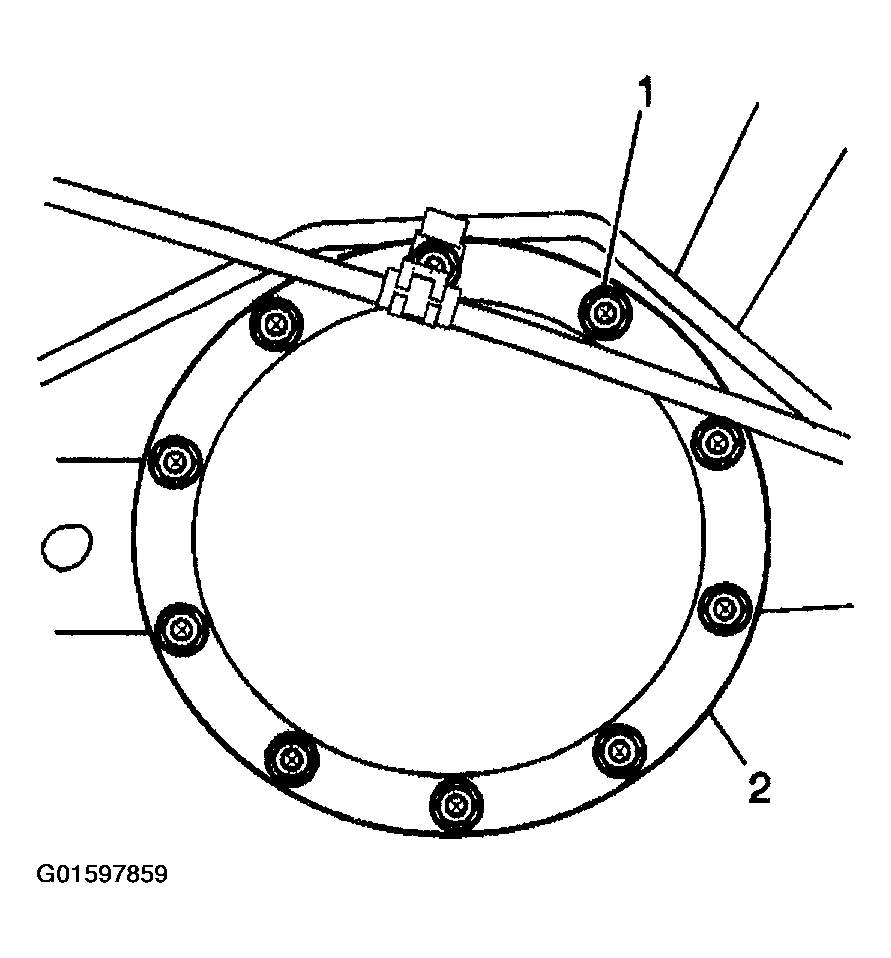

- Install the rear axle housing cover gasket and the rear axle housing cover (2).
Courtesy of GENERAL MOTORS CORP.
NOTE: Refer to Fastener Notice in Cautions and Notices. - Install the rear axle housing cover bolts (1).
Tighten
- For the 8.0 inch axle, tighten the rear axle housing cover bolts in a crosswise pattern to 30 N.m (20 lb ft).
- For the 8.6 inch axle, tighten the rear axle housing cover bolts in a crosswise pattern to 25 N.m (18 lb ft).
- Fill the rear axle with axle lubricant. Use the proper fluid. Refer to LUBRICANT LEVEL INSPECTION - REAR DRIVE AXLE .
- Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
