Low Flank Contact Pattern: Correction

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Decrease the pinion depth. Move the pinion gear away from the ring gear by decreasing the pinion shim thickness. Refer to PINION DEPTH ADJUSTMENT .

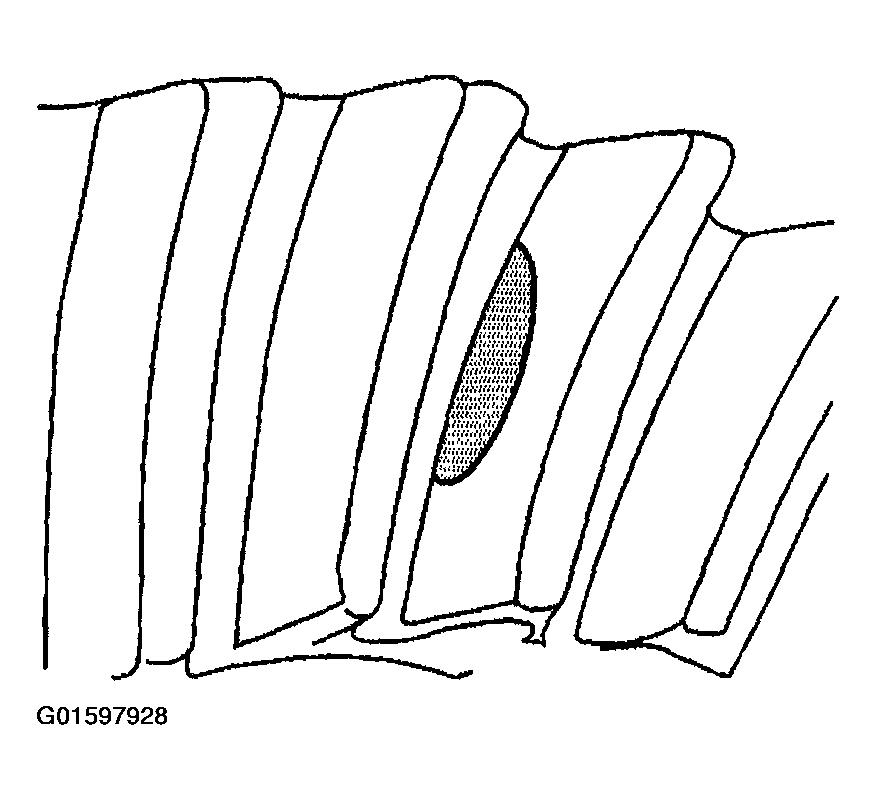

Fig 1: Identifying Low Flank Contact Pattern

Courtesy of GENERAL MOTORS CORP.
