Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the differential side bearings by doing the following:
    1. In order to protect the differential case, install the J 8107-2,  8.0 inch axle, or the J 8107-4,  8.6 inch axle, in the case on the side opposite the bearing installation.
    2. Install the J 45231,  8.0 inch axle, or the J 21784,  8.6 inch axle (2), and the J 8092  (1) onto the differential case bearing as shown.
    3. Drive the bearing onto the case using the J 45231,  8.0 inch axle, or the J 21784,  8.6 inch axle (2) and the J 8092  (1).
  2. Install the differential. Refer to DIFFERENTIAL REPLACEMENT   .

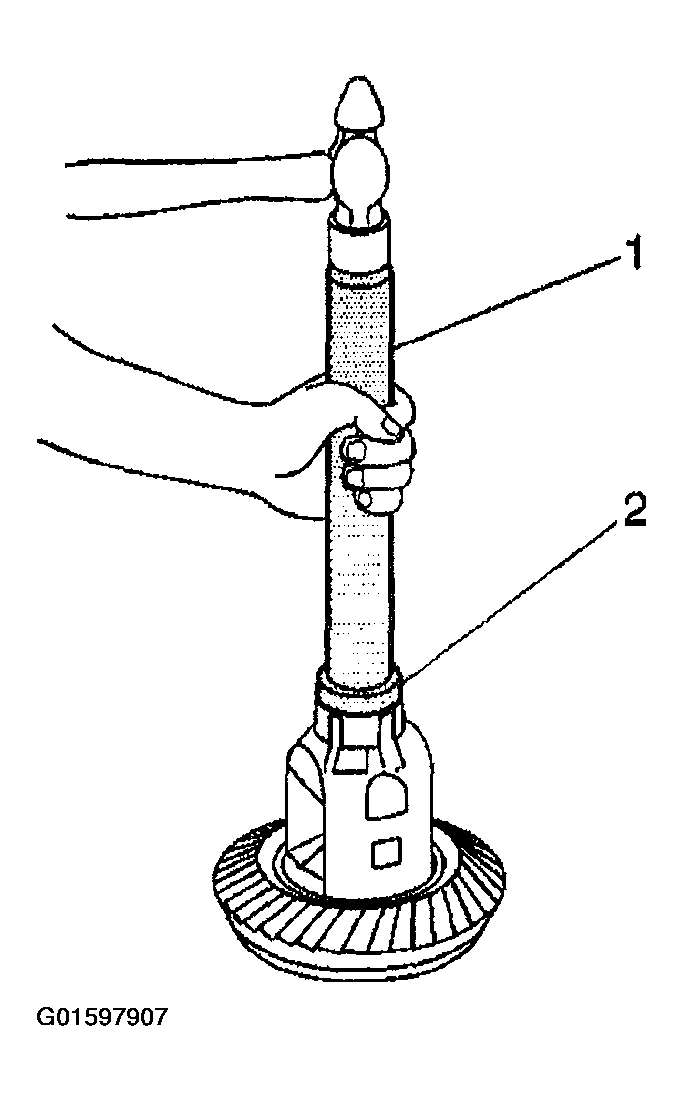

    Fig 1: Installing Differential Side Bearings
    G01597907Courtesy of GENERAL MOTORS CORP.
