Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle   in General Information.
    IMPORTANT: Make note of the routing in order to aid in reassembly.
  2. Remove the vent hose from the top of the differential carrier assembly.
  3. Remove the vent hose from the clip on the engine wiring harness bracket.
  4. Remove the vent hose.

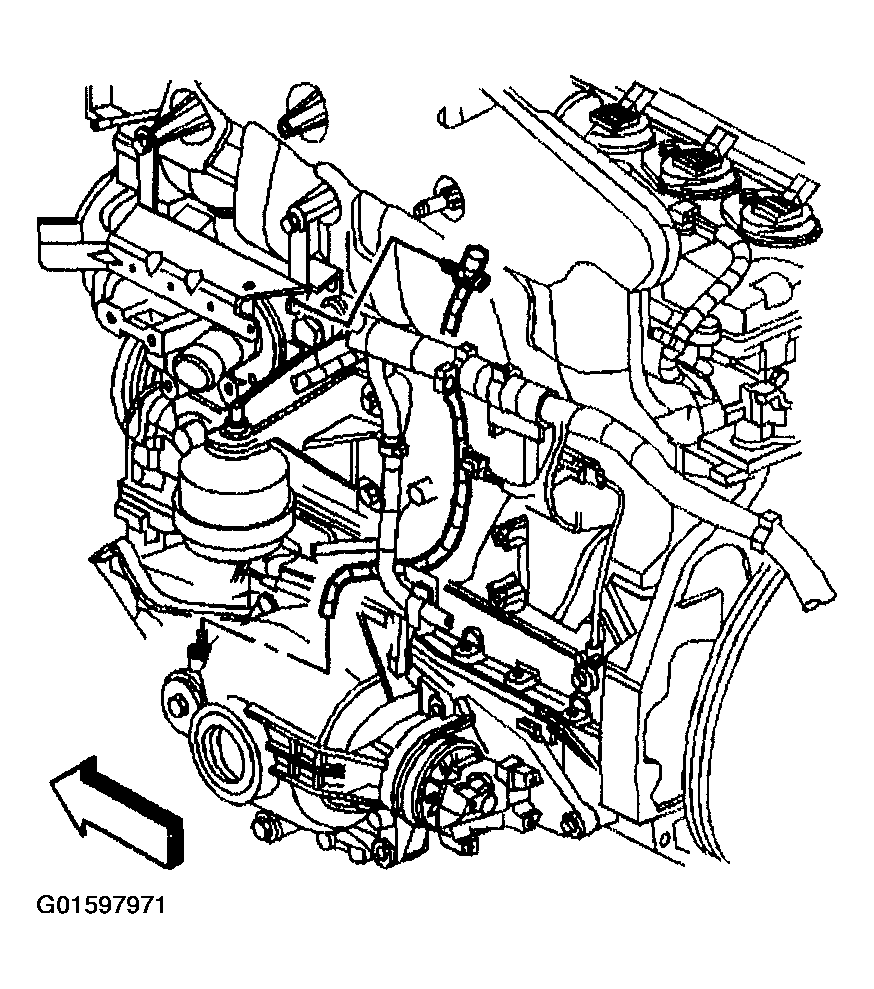

    Fig 1: Removing Vent Hose
    G01597971Courtesy of GENERAL MOTORS CORP.
