Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.

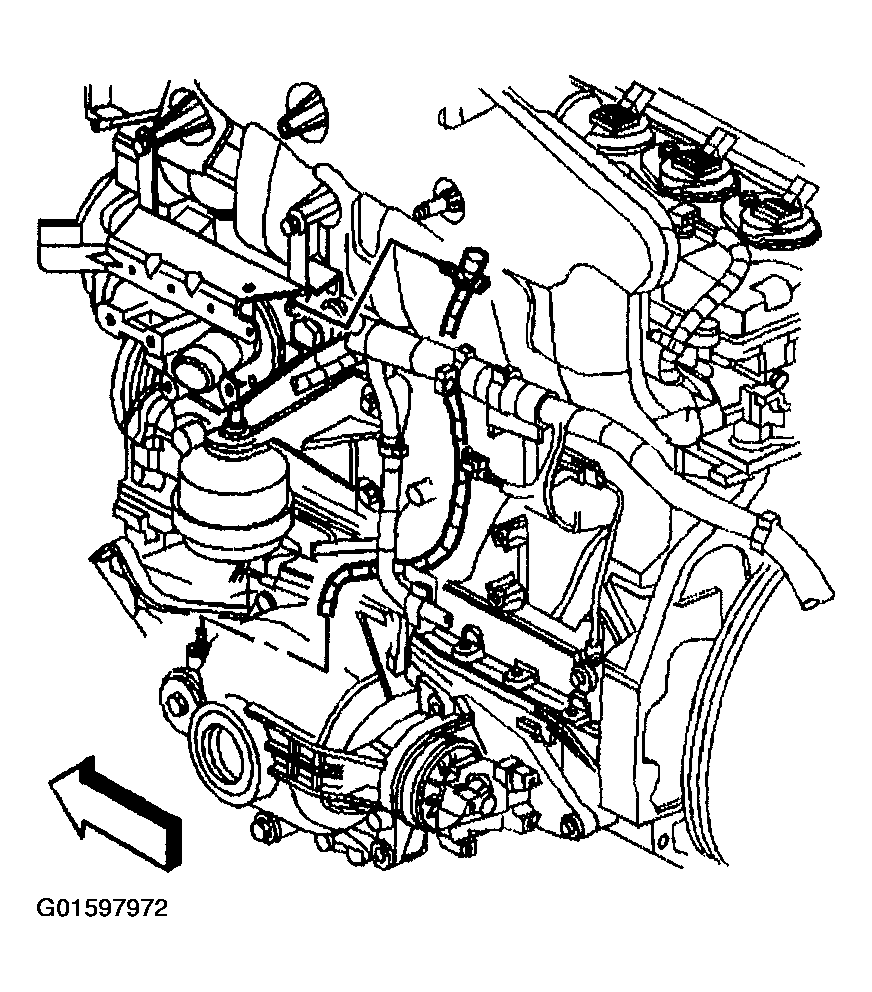

- Install the vent hose to the differential carrier assembly.
- Route the same way as when removed.
- Ensure that the hose is free of kinks and is routed clear of sharp objects.
- Ensure that the vent is not plugged.
- Install the vent hose in the clip on the engine wiring harness bracket.
- Lower the vehicle.
