Pinion Bearing Cup Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 45228  Pinion Bearing Cup Remover and Installer

  1. Install the inner pinion bearing cup into the inner pinion bearing cup bore.
  2. Assemble the J 45228-1 (2), the J 45228-2 (3), and the J 45228-5 (1) into the pinion bearing cup bore as shown.
  3. Tighten the J 45228-5 (1) slowly to draw the inner pinion cup into the inner pinion bearing cup bore.

    Inspect the position of the inner pinion bearing cup as it is being drawn into the pinion bearing cup bore to ensure the bearing cup is being pulled straight into the pinion bearing cup bore. If the pinion bearing cup is not being pulled straight into the bearing cup bore, remove the J 45228  and the pinion bearing cup and reposition the inner pinion bearing cup.

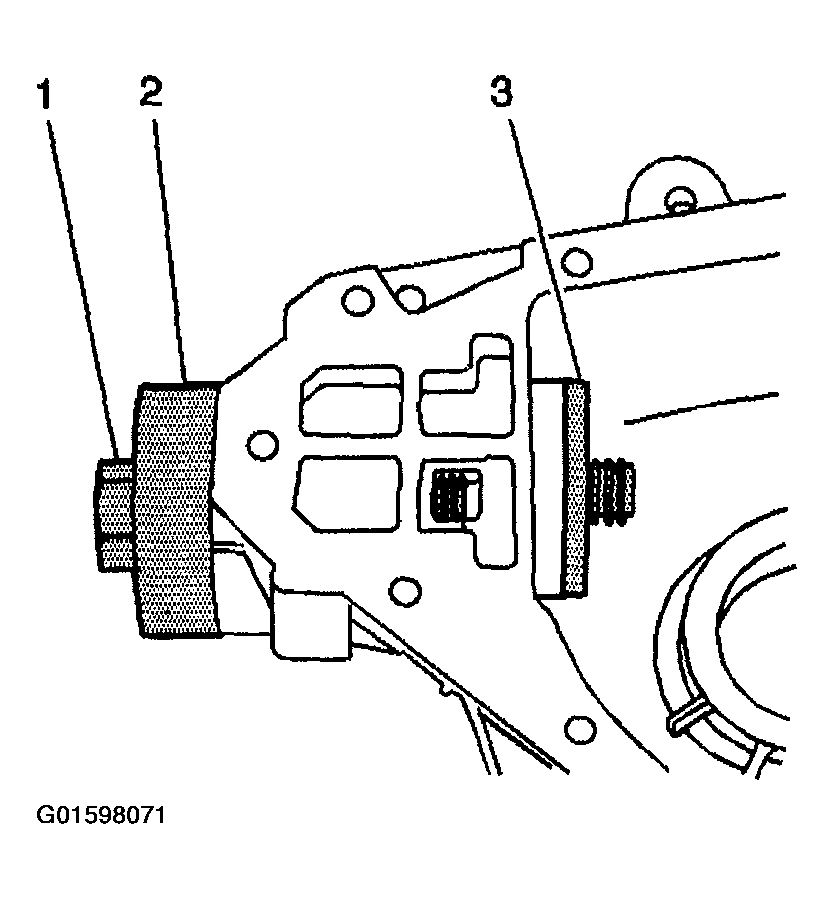

    Fig 1: Installing J 45228-1 (2), J 45228-2 (3), And J 45228-5 (1) Into Pinion Bearing Cup Bore
    G01598071Courtesy of GENERAL MOTORS CORP.
  4. Tighten the J 45228-5 (1) until the inner pinion bearing cup is seated in the inner pinion bearing cup bore.
  5. Remove the J 45228.
  6. Install the outer pinion bearing cup into the outer pinion bearing cup bore.
  7. Assemble the J 45228-1 (3), the J 45228-2 (2), and the J 45228-5 (1) into the pinion bearing cup bore as shown.
  8. Tighten the J 45228-5 (1) slowly to draw the outer pinion cup into the outer pinion bearing cup bore.

    Inspect the position of the outer pinion bearing cup as it is being drawn into the pinion bearing cup bore to ensure the bearing cup is being pulled straight into the pinion bearing cup bore. If the pinion bearing cup is not being pulled straight into the bearing cup bore, remove the J 45228  and the pinion bearing cup and reposition the outer pinion bearing cup.

  9. Tighten the J 45228-5 until the outer pinion bearing cup is seated in the outer pinion bearing cup bore.
  10. Remove the J 45228.

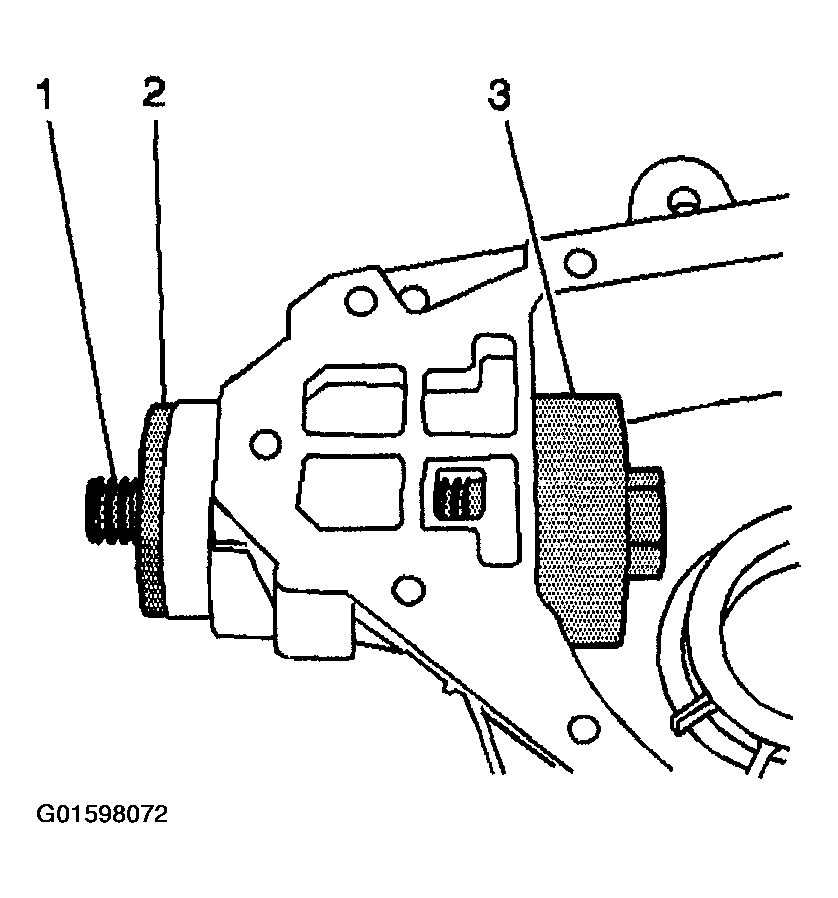

    Fig 2: Installing J 45228-1 (3), J 45228-2 (2), And J 45228-5 (1) Into Pinion Bearing Cup Bore
    G01598072Courtesy of GENERAL MOTORS CORP.
