Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle   in General Information.
  2. Remove the engine protection shield. Refer to Engine Protection Shield Replacement   in Frame and Underbody.
  3. Remove the fill plug.
    Fig 1: Removing Fill Plug
    G01597967Courtesy of GENERAL MOTORS CORP.
  4. Remove the drain plug and the washer.
  5. Drain the fluid from the differential carrier assembly.

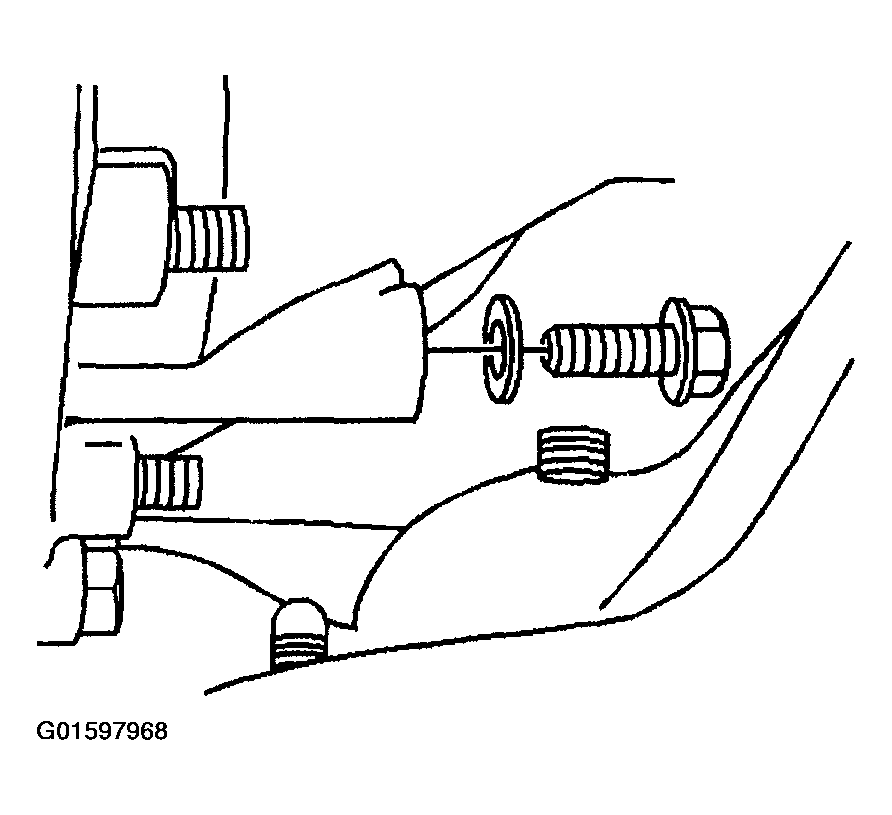

    Fig 2: Removing Drain Plug And Washer
    G01597968Courtesy of GENERAL MOTORS CORP.
